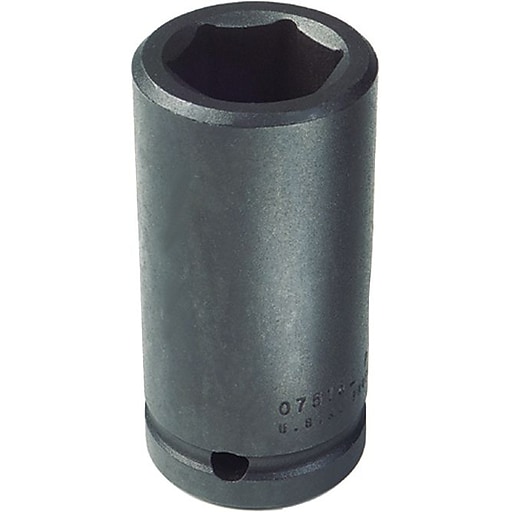

Proto® Torqueplus™ Deep Length Pin Locking Box Tip Impact Socket, 3/4 in Square Drive, 1 7/16 in

Price unavailable
Item #: 706563 Model #: 577-07523L
  • Drive size: 3/4-inch Square
  • Size: 1 7/16-inch Socket
  • Length: 3 1/2-inch
$44.19
1 each

Online. In store. Always free.

If you aren’t 100% satisfied with this item you may return it or exchange it for free. Simply bring it back to any Staples store or mail it back to us with a free, pre-paid return label.

I need to return an item.

Need help now? Let's chat.

Details

About this product

Proto® Torqueplus™ Deep Length Pin Locking Box Tip Impact Socket applies up to 15% more torque to fastener.

Proto® Torqueplus™ Deep Length Pin Locking Box Tip Impact Socket, 3/4" Square Drive, 1-7/16"

  • Drive size: 3/4-inch Square
  • Size: 1 7/16-inch Socket
  • Length: 3 1/2-inch
  • Number of points: 6
  • Concentric openings and large clearance holes
  • Tight nut end tolerances
  • Made from high alloy steel and heat treated for the correct balance of strength and durability
  • Chamfered service ends; Optimized socket wall thickness
  • Reduces risk of fastener rounding
  • Bolt clearance depth: 2 7/16-inch, drive end outside diameter: 1 3/4-inch, nut end hex depth: 1 1/16-inch, nut end outside diameter: 2 1/4-inch, specification: Federal GGG-W-660E, ANSI B107.2
