Fostoria Heaters

The Fostoria FSP from TPI Corporation is a heavy-duty portable heater designed to provide electric infrared heat where permanently installed heaters are not practical or economical. It is easily transported to the worksite and connected to disconnect switches or lighting centers. The unit is suited to a wide variety of indoor and protected outdoor commercial or industrial uses. It operates cleanly, emitting no fumes or odors. Applications where combustible materials and/or personnel will be located near this heater require the addition of a ground-fault sensing switch as part of the electrical circuit..Portable infrared heater quickly heats up the room and provides you with the much-needed warmth.Single-phase electric wiring.Dimensions: 53"H x 20"W x 17.5"D; weight: 46 lbs..Maximum wattage: 9500W; maximum heat energy: 32414 Btu/hour.High-density radiant heat with medium wavelength and 60-degree symmetric heat pattern; intended for 375 sq. ft. (on semi-protected area with temperatures measuring -35 degrees Fahrenheit and above).Unit is suited to a wide variety of indoor and protected outdoor commercial or industrial uses.Heater is mounted on a steel handcart with 6" wheels, which allows easy transport to the job site.Heater operates cleanly, emitting no fumes or odors.Gold-tone anodized aluminum housing for good reflectivity and corrosion resistance.Factory-installed heavy-duty wire guard.Rugged emitter element, great for high-vibration areas.Applications where combustible materials and/or personnel will be located near this heater require the addition of a ground-fault sensing switch as part of the electrical circuit.Flat-panel emitter operates at a radiant efficiency of 78.5% with 277V.Element life expectancy: 25000 hours.Made in the USA.1-year manufacturer limited warranty.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

The Fostoria FSP from TPI Corporation is a heavy-duty portable heater designed to provide electric infrared heat where permanently installed heaters are not practical or economical. It is easily transported to the worksite and connected to disconnect switches or lighting centers. The unit is suited to a wide variety of indoor and protected outdoor commercial or industrial uses. It operates cleanly, emitting no fumes or odors. Applications where combustible materials and/or personnel will be located near this heater require the addition of a ground-fault sensing switch as part of the electrical circuit..Portable infrared heater quickly heats up the room and provides you with the much-needed warmth.Single-phase electric wiring.Dimensions: 53"H x 20"W x 17.5"D; weight: 46 lbs..Maximum wattage: 9500W; maximum heat energy: 32414 Btu/hour.High-density radiant heat with medium wavelength and 60-degree symmetric heat pattern; intended for 375 sq. ft. (on semi-protected area with temperatures measuring -35 degrees Fahrenheit and above).Unit is suited to a wide variety of indoor and protected outdoor commercial or industrial uses.Heater is mounted on a steel handcart with 6" wheels, which allows easy transport to the job site.Heater operates cleanly, emitting no fumes or odors.Gold-tone anodized aluminum housing for good reflectivity and corrosion resistance.Factory-installed heavy-duty wire guard.Rugged emitter element, great for high-vibration areas.Applications where combustible materials and/or personnel will be located near this heater require the addition of a ground-fault sensing switch as part of the electrical circuit.Flat-panel emitter operates at a radiant efficiency of 78.5% with 480V.Element life expectancy: 25000 hours.Made in the USA.1-year manufacturer limited warranty.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

The Fostoria FES portable electric heater from TPI Corporation provides clean, quiet, odor-free, fan-forced heat. It's designed to circulate room air continuously, gradually heating a confined space. The best results will be obtained when using this heater in smaller, insulated spaces. Its features include a yellow safety enclosure with front and rear safety screens, reliable stainless steel finned heating elements, a high-limit temperature switch with automatic reset, an automatic thermostat control with fan-only option, and a long-life motor and fan assembly with sealed bearings. This portable (FES) model comes mounted on a two-wheeled cart, with wheels designed to be easily pushed or pulled over uneven surfaces. All Fostoria FES models come fully assembled, except the handle is attached in a lowered shipping position when shipped from the factory..This portable fan-forced salamander heater provides temporary climate control for interior jobsite heating, as well as assisting drywall and building contractors in drying applications.Three-phase electric heater generates 1100 cfm, making it a great alternative to propane and kerosene space heaters.Dimensions: 39"H x 27"W x 23"D; weight: 83 lbs..Maximum wattage: 30000W; maximum heat energy: 102390 Btu/hour.Intended for rooms up to 2000 sq. ft., gradually heating a confined space.Best results will be obtained when using this heater in smaller, insulated spaces and interior jobsites.High-limit temperature switch provides automatic reset.Meets or exceeds the Intertek and ETL standards.Heater housing has a textured yellow powder-coated finish and includes protective guards in a black finish on both the air intake and output openings.Long-life finned tubular heating elements.Control knob allows for fan-only operation and thermostat adjustment from 40 to 100 degrees Fahrenheit.This unit features a built-in rotating stop, allowing housing adjustments for up to 90 degrees from center axis.Includes an access panel for direct wiring connections.10"Dia. industrial heavy-duty wheels and handle for easy portability over all surface types.Optional 25' SO cord ready for plug attachment is available for order.Safe-operating unit: operate the unit overnight to elevate temperature.Made in the USA.Power properties: 480V, 36A.1-year manufacturer limited warranty.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

The Fostoria FES portable electric heater from TPI Corporation provides clean, quiet, odor-free, fan-forced heat. It's designed to circulate room air continuously, gradually heating a confined space. The best results will be obtained when using this heater in smaller, insulated spaces. Its features include a yellow safety enclosure with front and rear safety screens, reliable stainless steel finned heating elements, a high-limit temperature switch with automatic reset, an automatic thermostat control with fan-only option, and a long-life motor and fan assembly with sealed bearings. This portable (FES) model comes mounted on a four-wheeled cart, with wheels designed to be easily pushed or pulled over uneven surfaces. All Fostoria FES models come fully assembled, except the handle is attached in a lowered shipping position when shipped from the factory..This portable fan-forced salamander heater provides temporary climate control for interior jobsite heating, as well as assisting drywall and building contractors in drying applications.Three-phase electric heater generates 2200 cfm, making it a great alternative to propane and kerosene space heaters.Weight: 198 lbs..Maximum wattage: 45000W; maximum heat energy: 153585 Btu/hour.Intended for rooms up to 2400 sq. ft., gradually heating a confined space.Best results will be obtained when using this heater in smaller, insulated spaces and interior jobsites.High-limit temperature switch provides automatic reset.Meets or exceeds the Intertek and ETL standards.Heater housing has a textured yellow powder-coated finish and includes protective guards in a black finish on both the air intake and output openings.Long-life finned tubular heating elements.Control knob allows for fan-only operation and thermostat adjustment from 40 to 100 degrees Fahrenheit.Includes an access panel for direct wiring connections.Two 10"Dia. rear wheels, front locking casters, and handle for easy portability over all surface types.Optional 25' SO cord ready for plug attachment is available for order.Safe-operating unit: operate the unit overnight to elevate temperature.Made in the USA.Power properties: 480V, 55.4A.1-year manufacturer limited warranty.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

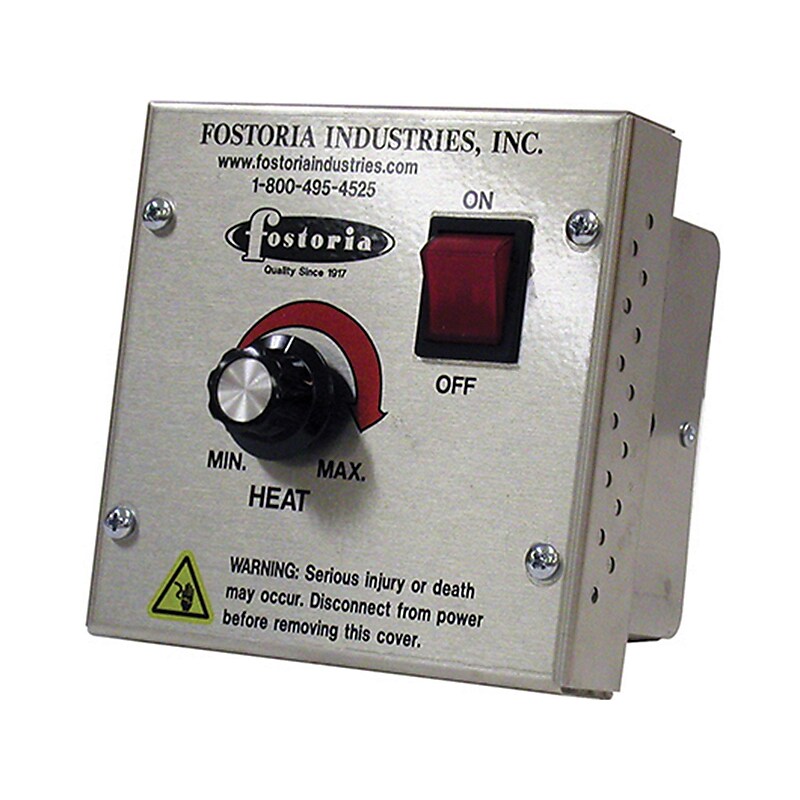

The TPI Corporation Fostoria VHC-32 variable heat controller is a solid-state power control designed to provide a convenient way to adjust heat output on electric infrared heating elements. The faceplate includes a heat intensity control knob..This solid-state power control is designed to provide a convenient way to adjust heat output on electric infrared heating elements.Dimensions: 5"H x 5"W x 3"D; weight: 3 lbs..Maximum wattage: 3200W at 208-240V.Can either operate quartz lamps or quartz tube infrared heaters.Solid-state phase angle variable TRIAC knob controller adjusts heat settings from 10-100% with heat loads up to 15.4A.Positive off and built-in on/off rocker switch lights up red during operation.Aluminum enclosure with stainless steel faceplate designed for wall mounting or suitable for semi-recessed applications.Must be mounted in a protected area.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

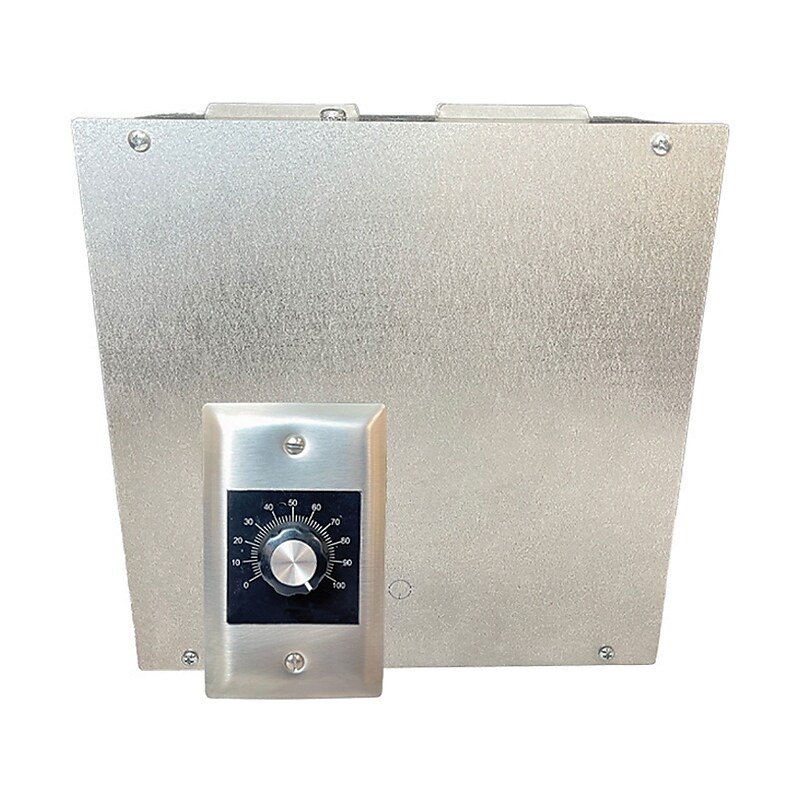

This TPI Corporation Fostoria VHC-66 variable voltage controller with potentiometer is designed to provide a convenient way to adjust heat output on electric infrared heating elements. The potentiometer can be mounted in an enclosure or remotely in a 2" x 4" electrical wall box (not supplied)..This variable voltage controller with potentiometer is designed to provide a convenient way to adjust heat output on electric infrared heating elements.Dimensions: 10"H x 10"W x 6"D; weight: 9 lbs..Maximum wattage: 6656W at 208V, 7680W at 240V.Can be used on all Fostoria 208V/240V infrared single-phase heaters with heat load up to 32A.Potentiometer can be mounted in an enclosure or remotely in a 2" x 4" electrical wall box (not supplied).Features soft-start operation to avoid high-amperage inrush current on circuits.Enclosure is made of aluminized epoxy.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

This TPI Corporation Fostoria VHC-99 variable voltage controller with potentiometer is designed to provide a convenient way to adjust heat output on electric infrared heating elements. The potentiometer can be mounted in an enclosure or remotely in a 2" x 4" electrical wall box (not supplied)..This variable voltage controller with potentiometer is designed to provide a convenient way to adjust heat output on electric infrared heating elements.Dimensions: 10"H x 10"W x 6"D; weight: 9 lbs..Maximum wattage: 9984W at 208V, 11520W at 240V.Can be used on all Fostoria 208V/240V infrared single-phase heaters with heat load up to 48A.Potentiometer can be mounted in an enclosure or remotely in a 2" x 4" electrical wall box (not supplied).Features soft-start operation to avoid high-amperage inrush current on circuits.Enclosure is made of aluminized epoxy.⚠ WARNING: California Proposition 65 Warning. This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
