UniFi PoE Injectors

The Ubiquiti® POE-24-24W-G 24 V gigabit PoE injector offers surge protection, clamping protection, maximum surge discharge and peak pulse current for PoE devices protection. It supports Gigabit LAN PoE interface..Gigabit PoE injector offers earth grounding and surge protection to help protect against electrostatic discharge events.Dimensions: 2.24"H x 3.47"W x 1.3"D.Power: 24 VDC/1 A, 90 - 260 VAC at 47 - 63 Hz (input), Current: 0.6 A at 120 VAC, 0.4 A at 240 VAC (input).Frequency: 65 kHz (switching).Interface/ports: Gigabit LAN PoE.Efficiency: 80+ percent, Output ripple: 1 percent, Line regulation: + 1 percent, Load regulation: + 3 percent.4-Pair powering: Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-), AC connector: IEC-320 C6, Data In/PoE: RJ-45 shielded socket.Surge discharge: 1500 A power, Shunt capacitance: <5 pf data, Response time: <1 nS.Meets IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B certifications and standards

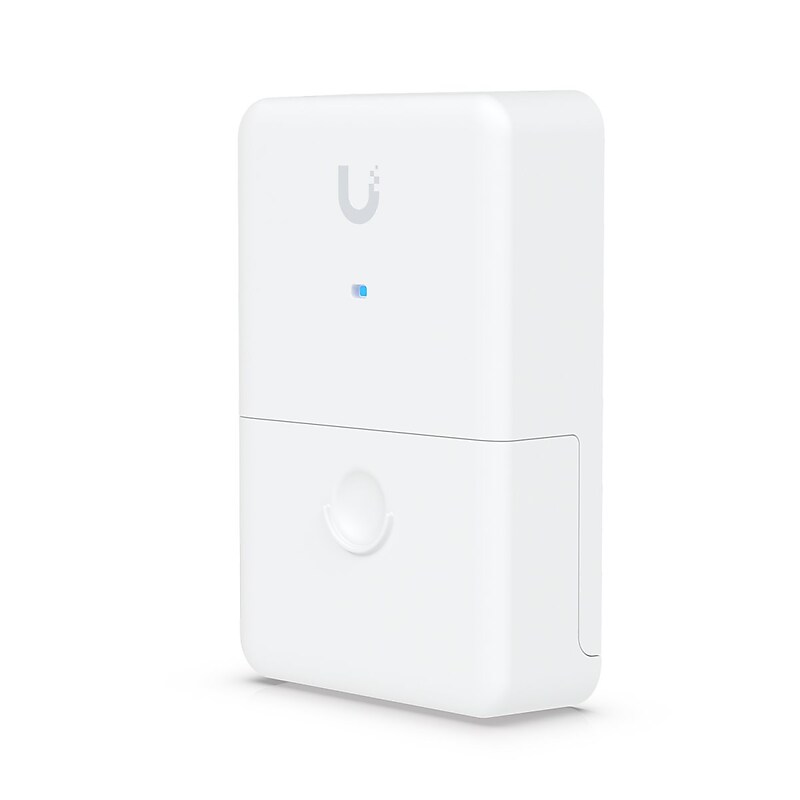

Versatile PoE adapter that delivers up to 100W to power any two Wave models and provides 2.5 GbE connectivity. Power method is by Power TransPort DC input 27V DC. Supports all Wave models.Dual-Power Injector.Dimensions 145.5 x 95.5 x 44 mm (5.7 x 3.8 x 1.7").Color White, Material Plastic, UV-stabilized polycarbonate.Selling Quantity 1.MountingPole mount 35 to 60 mm (1.37 to 2.36") on pipe outer diameter Wall mount.Power supply 120W Power TransPort Adapter (not included) UISP Power UISP Power Pro.Supported models Wave AP Wave AP Micro Wave Long-Range Wave Nano Wave Pro Wave Pico.2 2.5G GbE RJ45 ports with 48V passive PoE

The Ubiquiti Networks PoE Injector is designed for the company's airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Protect / airVision products. This 24 VDC, 7.2W, 0.3A adapter provides protection against surge, clamping, maximum surge discharge, and peak pulse current..Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including: airFiber®, airMAX®, EdgeMAX®, mFi®, UniFi® AP, UniFi Video / airVision®.Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network..120 V AC, 230 V AC Input - 24 V DC, 300 mA Output.Gigabit Ethernet Input Port(s) - Gigabit Ethernet Output Port(s).Ubiquiti Networks PoE Injector (24 VDC, 7.2W)

The Ubiquiti EdgePoint PoE injector provides a variety of features to help protect your PoE devices: surge protection, clamping protection, maximum surge discharge, peak pulse current, AC cable with earth ground..PoE injector with a variety of features to help protect your PoE devices.Compatible with airFiber, airMAX, EdgeMAX, mFi, UniFi AP, UniFi Protect, airVision, UniFi LED, UFiber.Dimensions: 1.34"H x 4.84"W x 2.56"D.Comes in white.Offers 80W of power to an Ethernet cable for PoE devices.Contains 1 x Gigabit Ethernet RJ45 LAN and 1 x PoE ports.Output voltage: 54VDC/1.5A.Rated voltage: 100-240VAC, 50/60Hz.Surge protection: difference and common Mode.Meets or exceeds the CE, FCC, IC and UL standards

The Ubiquiti Instant INS-3AF-I-G indoor Gigabit PoE converter for 802.3af switches, transforms any Ubiquiti PoE devices into a fully compliant 802.3af compatible product. It works with 10/100/1000 Mbps ports to deliver high throughput speeds over a wired connection. This instant 802.3af adapter supports longer cable runs for more efficient power delivery. The device provides an additional +/-15 kV of Ethernet isolation for built-in protection or surge protection. It is compatible with airMAX and UniFi devices..Indoor Gigabit PoE converter transforms passive PoE devices into 802.3af-compliant products.Dimensions: 3.76"D x 1.19"Dia. (with RJ45 cable).Compatibility: 802.3af switches for remote control power applications.Protection type: Surge protection.Interfaces/ports: 1 x Gigabit RJ45 port (PoE in), 1 x Gigabit RJ45 port (PoE out).Network and communication: 10/100/1000Base-T.Power: 48 VDC input, 24 V, 0.5 A output.Form factor: External.Enables longer cable runs due to a more efficient power delivery.Provides an additional +/- 15 kV of Ethernet isolation to lessen the risk of ESD or surge damage to connected devices.Weight: 1.76 oz.

Ubiquiti™ Networks™ 48 VDC 24 W Power over Ethernet injector with gigabit LAN port features RJ-45 input/output port to deliver high-speed internet. Injector comes with USA power cord and features an LED display to indicate status of power..Frequency: 47 - 63 Hz, 65 kHz switching.Dimensions: 1.3"(H) x 3.61"(W) x 2.36"(D).Interfaces/ports: Input ports: 1 x RJ-45 ethernet, output ports: 1 x RJ-45 ethernet.Power: Output power: 24 W, input voltage: 110 - 220 VAC, 48 VDC output, input current: 600 mA at 110 VAC, 400 mA at 220 VAC, 500 mA output.Efficiency: 80+%, output ripple: 1%, regulation: + or - 1% line, + or - 3% load, peak pulse current: 36A (10/1000microsecond) data.Operating temperature: -10 - +60 deg C, Operating humidity: 5 - 90% non condensing.Surge protection: Difference and common mode, clamping protection: 11 V data, 60 V power.Shunt capacitance: <5 pf data, response time: <1 nS, 2-pair powering: Pins 4, 5 (+) and pins 7, 8 (-).Compatibility: Rocket-Ti, UAP-Pro.Certifications and standards: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B.Weight: 5.59 oz..Ubiquiti™ Networks™ 48 VDC 24 W Power over Ethernet injector with gigabit LAN port provides earth grounding/surge protection and also helps to protect against ESD attacks.

The Ubiquiti Instant INS-3AF-O-G outdoor Gigabit PoE converter for 802.3af switches, transforms any Ubiquiti PoE devices into a fully compliant 802.3af compatible product. It works with 10/100/1000 Mbps ports to deliver high throughput speeds over a wired connection. This instant 802.3af adapter supports longer cable runs for more efficient power delivery. The device provides an additional +/-15 kV of Ethernet isolation for built-in protection or surge protection. It is compatible with airMAX and UniFi devices..Outdoor Gigabit PoE converter transforms passive PoE devices into 802.3af-compliant products.Dimensions: 14.4"D x 1.19"Dia. (with RJ45 cable).Compatibility: 802.3af switches for remote control power applications.Protection type: Surge protection.Interfaces/ports: 1 x Gigabit RJ45 port (PoE in), 1 x Gigabit RJ45 cable (PoE out).Network and communication: 10/100/1000Base-T.Power: 48 VDC input, 24 V, 0.5 A output.Form factor: External.Enables longer cable runs due to a more efficient power delivery.Provides an additional +/- 15 kV of Ethernet isolation to lessen the risk of ESD or surge damage to connected devices.Weight: 3.17 oz.

The Ubiquiti® POE-24-12W-G 24V PoE injector with Gigabit LAN port, powers a variety of PoE devices belonging to the airFiber, airMAX, EdgeMAX, airVision, UniFi and mFi series. This 24 VDC injector provides protection against surge, clamping, peak pulse current, maximum surge discharge and ESD attacks..Power over Ethernet injector provides protection against surge, clamping, peak pulse current.Compatible with Ubiquiti products - airFiber, airMAX, airVision, UniFi, mFi.Interface/ports: Gigabit LAN port.Dimensions: 1.14"H x 3.43"W x 1.73"D.Form factor: Wall mountable.Power supply: Input: 90 - 260 VAC at 47 - 63 Hz, 0.3 A at 120 VAC, 0.2 A at 240 VAC, output: 24 VDC at 0.5 A.Temperature: 0 - 40 deg C operating, -30 - 70 deg C storage, humidity: 35 - 95% non-condensing operating.Meets IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B, USA, EU, AR, BR, UL, CCC, Mexico standards.Weight: 3.51 oz.

The Ubiquiti Networks POE-50-60W PoE Adapter is a high-performance power solution designed to deliver reliable 50V, 60W output to a wide range of Ubiquiti PoE-enabled devices, including airFiber, airMAX, airVision, UniFi, and mFi series. Engineered for seamless integration into professional network environments, this adapter features a built-in Gigabit LAN port for high-speed data transmission and supports a wide input voltage range of 90–260V AC at 50/60 Hz, making it ideal for global deployments. Advanced surge protection, clamping, peak pulse current handling, and ESD shielding ensure your network stays protected against electrical threats. The compact and lightweight design (4.0 x 2.4 x 1.3 inches, 6.8 oz) allows for easy installation in tight spaces, while earth grounding support adds an extra layer of operational safety. With an operating temperature range of 32°F to 104°F (0°C to 40°C) and 35–95% humidity tolerance, the POE-50-60W is built to perform in demanding conditions. Backed by a 1-year limited warranty, this PoE adapter is the perfect choice for powering Ubiquiti devices with efficiency, safety, and speed..Powerful 50V, 60W Output: Delivers reliable Power over Ethernet (PoE) for a wide range of Ubiquiti devices including airFiber, airMAX, airVision, UniFi, and mFi series.Integrated Gigabit LAN Port: Ensures high-speed data transmission with full Gigabit Ethernet support.Advanced Surge & ESD Protection: Built-in safeguards against surge, clamping, peak pulse current, and electrostatic discharge for enhanced device safety.Wide Input Voltage Range: Operates on 90–260V AC, 50/60 Hz, making it suitable for global deployments.Earth Grounding Support: Provides additional protection and stability in professional network environments.Compact & Lightweight Design: Measures just 4.0 x 2.4 x 1.3 inches and weighs 6.8 oz for easy integration into any setup.Reliable Operating Conditions: Functions in temperatures from 32°F to 104°F (0°C to 40°C) and 35–95% humidity.IEEE 802.3af Backward Compatibility: Supports legacy PoE devices while delivering robust performance.Ideal for Ubiquiti Ecosystems: Optimized for seamless use with Ubiquiti’s networking hardware—ensuring compatibility and performance.1-Year Limited Warranty: Backed by Ubiquiti’s manufacturer warranty for peace of mind.Ubiquiti™ Networks™ 50 VDC 60 W Power over Ethernet injector provides earth grounding/surge protection and also helps to protect against ESD attacks.
