Serial To LAN Adapter

The Brainboxes ES-457 2-port RS232 PoE Ethernet to serial device server with fast Ethernet technology is rail-mountable and features user-friendly interface that is simple to use and delivers powerful operation. It comes with serial port tunneling that allows serial cable replacement over any distance and supports data rate from 110 to 1000000 baud. It features point-to-point Tx/Rx modes and has DB9 9 pin male connector. This device server features EIA - RS232 standard operating distance and is compatible with Microsoft Windows 10/8/7/Server 2008/Vista/XP/2000 operating system..Drive server provides access to two RS232 serial ports.Dimensions: 1.1"H x 4"W x 3.9"D, 96.3 mm x 101 mm x 25 mm (with ears), 91.6 mm x 77 mm x25 mm (without ears).Connectivity: 10/100Base-TX Fast Ethernet.Requires Microsoft Windows 10, 8 - 32 bit & 64 bit Editions, Windows Server 2012, 7 - 32 bit & 64 bit Editions and Windows Server 2008 32/64 bit.Power supply: PW-800 optional global power supply, Power consumption: 1.85 W typical, Power input: Power over Ethernet OR 5 - 30V DC input.Meets CE, IP-30, TAA, Green compliant, RoHS and WEEE certifications & standards.Interface: Two RS232, Network (RJ-45) and PoE (RJ-45) port.Connector: DB9 connector - 9 pin male, Tx FIFO size: 256, Rx FIFO size: 32, Integrated connector.Operating distance: EIA - RS232 standard, Max baud rate: 1 MegaBaud, Data bits: 5 ,6 ,7 , 8, Parity: Odd, even, none, mark or space, Stop bits: 1 or 2.Power over Ethernet: IEEE 802.3af, PCB layers: 4, Mounting accessory: DIN-rail mounting kit - MK-048, Network protocols: ICMP, IP, TCP and UDP.Media type supported: Twisted pair, User friendly interface, simple to use, powerful in operation.Temperature: 0 - 60 deg C (operating), Humidity: 5 to 95 percent (non-condensing).Contains server, quick start guide, installation CD including manual, Microsoft signed drivers & utilities.Weight: 4.48 oz..Comes with lifetime warranty

The Brainboxes ES-413 Ethernet to serial device server provides local control for remote serial device. This device server is user friendly interface, simple to use and powerful in operation..Device server.Dimensions: 1.1"H x 3.9"W x 4"D.Comes in black color.Baud rate: From 110 - 1000000 baud, Data bits: 5, 6, 7 or 8.Data rate: 10/100 mega bits/second.Form factor: Rail-mountable.Interfaces/ports: 2 x serial port, DB9 connector - 9 pin male.Power supply: Power over Ethernet, 5 - 30 VDC input, reverse polarity protected.Ethernet technology: 100Base-TX fast Ethernet.Network protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217.OS compatibility: Communicate with Device over TCP from any OS / Microsoft Windows 8 32 bit 64 bit Editions / Windows Server 2012.User friendly interface, simple to use, powerful in operation.Serial port tunnelling allows serial cable replacement over any distance, no software required.Optional DIN rail mounting kit and stand alone power supply.Certifications and standards: AEO C-TPAT Microsoft Certified Gold Partner WEEE RoHS EMC: CE TAA.Weight: 4.62 oz..Comes with lifetime warranty.Ethernet to serial device server features user friendly interface, simple to use, powerful in operation and data rate from 110 - 1000000 baud.

The Brainboxes ES-446 1-port RS232 PoE Ethernet to serial device server with fast Ethernet technology is rail-mountable and features user-friendly interface that is simple to use and delivers powerful operation. It comes with serial port tunneling that allows serial cable replacement over any distance and supports data rate from 110 to 1000000 baud. It features point-to-point Tx/Rx modes and has DB9 9 pin male connector. This device server features EIA - RS232 standard operating distance and is compatible with Microsoft Windows 10/8/7/Server 2008/Vista/XP/2000 operating system..Drive server provides access to one RS232 serial port.Dimensions: 1.1"H x 4"W x 3.9"D, 96.3 mm x 101 mm x 25 mm (with ears), 91.6 mm x 77 mm x25 mm (without ears).Connectivity: 10/100Base-TX Fast Ethernet.Requires Microsoft Windows 10, 8 - 32 bit & 64 bit Editions, Windows Server 2012, 7 - 32 bit & 64 bit Editions and Windows Server 2008 32/64 bit.Power supply: PW-800 optional global power supply, power consumption: 1.5 W typical, Power input: Power over Ethernet OR 5 - 30V DC input.Meets CE, IP-30, TAA, Green compliance, RoHS and WEEE certifications & standards.Interface: One RS232 serial port, one Network (RJ-45) and PoE (RJ-45) port.Connector: DB9 connector - 9 pin male, Tx FIFO size: 256, Rx FIFO size: 32, Integrated connector.Operating distance: EIA - RS232 standard, Max baud rate: 1 MegaBaud, Data bits: 5 ,6 ,7 , 8, Parity: Odd, even, none, mark or space, Stop bits: 1 or 2.Power over Ethernet: IEEE 802.3af, PCB layers: 4, Mounting accessory: DIN-rail mounting kit - MK-048, Network protocols: ICMP, IP, TCP and UDP.Media type supported: Twisted pair, User friendly interface, simple to use, powerful in operation.Temperature: 0 - 60 deg C (operating), Humidity: 5 to 95 percent (non-condensing).Contains server, quick start guide, installation CD including manual, Microsoft signed drivers & utilities.Weight: 4.27 oz..Comes with lifetime warranty.Black

Ethernet to Serial device server providing access to four RS422/485 serial ports. Data transfer rates up to 1,000,000 baud rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed 32 bit and 64 bit driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. Serial Port Tunnelling individually configurable allows serial cable replacement over any distance, no software required. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs..Network (RJ-45): Yes.Phone Line (RJ-11): No.Network (RJ-11): No

Brainboxes Ethernet to 4 Digital IO and RS323 serial port device server supports fast ethernet technology with 10/100Base-TX network standard. Server delivers uncompromising performance of up to 1 megabaud and is rail-mountable..Serial port, network (RJ-45).Ethernet technology: Fast Ethernet, network standard: 10/100Base-TX, media type supported: Twisted-pair.Interface: 2 x RJ-45, 1 x serial port.Form factor: Rail-mountable.Power consumption: Input: 5 - 30 VDC, 100mA at 24 V 2.5 W (max).Digital inputs: 4, digital output type: Open drain transistor, protected MosFET, short circuit protection up to 36V, over temperature shutdown -175 deg C typical 150 deg C (min).Latched inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged.Counter inputs: User programmable- counts positive or negative transitions up to 100Hz.Watchdog: Active high/low, pulsed high/low.Logic level 0: 0 - 1 V, logic level 1: 2 - 30 V.Maximum output load voltage: 30 - 250 VAC, maximum output current sink: 5.0 A per channel.Operating systems: Windows server 2008 32 bit & 64 bit editions, windows vista 32 bit & 64 bit editions, mac OS X, windows server 2003 32 bit & 64 bit editions, windows XP 32 bit & 64 bit editions, microsoft windows 2000, Linux.Operating temperature: 0 - 60 deg C.Includes ED-004 4 Port Selectable DIO + RS232, installation CD (manual, Microsoft signed drivers & utilities, quick-start guide).Certifications and standards: CE, CCC-mark, C-TICK, RoHS, WEEE.Warranty: Lifetime limited.Brainboxes Ethernet to 4 Digital IO and RS323 serial port device server is supported with twisted pair media and has a RJ-45 network port.

Brainboxes Ethernet to digital IO/RS232/switch device server supports fast ethernet technology with 10/100Base-TX network standard. Server delivers uncompromising performance of up to 1 megabaud and is rail-mountable..Serial port, network (RJ-45).Ethernet technology: Fast Ethernet, network standard: 10/100Base-TX, media type supported: Twisted-pair.Interface: 2 x RJ-45, 1 x serial port.Form factor: Rail-mountable.Power consumption: Input: 5 - 30 VDC, 100mA at 24 V 2.5 W (max).Digital inputs: 4, digital output type: Open drain transistor, protected MosFET, short circuit protection up to 36V, over temperature shutdown -175 deg C typical 150 deg C (min).Latched inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged.Counter inputs: User programmable- counts positive or negative transitions up to 100Hz.Watchdog: Active high/low, pulsed high/low.Logic level 0: 0 - 1 V, logic level 1: 2 - 30 V.Maximum output load voltage: 30 - 250 VAC, maximum output current sink: 5.0 A per channel.Operating systems: Windows server 2008 32 bit & 64 bit editions, windows vista 32 bit & 64 bit editions, mac OS X, windows server 2003 32 bit & 64 bit editions, windows XP 32 bit & 64 bit editions, microsoft windows 2000, Linux.Operating temperature: 0 - 60 deg C.Includes Ethernet to digital/RS232/switch, installation CD (manual, Microsoft signed drivers & utilities, quick-start guide).Certifications and standards: CE, CCC-mark, C-TICK, RoHS, WEEE.Warranty: Lifetime limited.Brainboxes Ethernet to digital IO/RS232/switch device server is supported with twisted pair media and has two RJ-45 network ports.

Brainboxes 1 Port USB to serial adapter has type A male USB connector on first end and 9-pin DB-9 male RS-232 serial connector on second end. Adapter includes installation CD, 0.25 m USB extender cable and weighs 0.80 oz..USB 2.0.Data transfer rate: Up to 921600 baud, USB 2.0: 480 Mbps.Ports: 1 x 9-pin DB-9 male RS-232 serial, 1 x type-A male USB.Dimensions: 3.5" x 1.4" x 0.8".Form factor: External.Power consumption: 40mA at 5V.Serial port: Ports: 1, Protocol: RS232, Connector: DB9 connector - 9 pin male.Operating distance: EIA - RS232 standard, Tx FIFO size: 128, Rx FIFO size: 256.Max baud rate: 921600, Data bits: 7 or 8, Parity: odd, even, none, mark or space, Stop bits: 1 or 2.Tx/Rx modes: Point to point.PCB layers: 4.Platform supported: PC.Operating system: Microsoft Windows 7/Server 2008/Vista/Server 2003/XP/2000.Includes USB to serial adapter, installation CD, 0.25m USB extender cable.Certifications and standards: RoHS, WEEE.Weight: 0.81 oz..Warranty: Lifetime limited.Black/Blue.Brainboxes 1 Port USB to serial adapter supports 921,600 bytes data transfer rate to provide high performance and drivers for all popular operating systems.

Brainboxes Device server has wide operating voltages of 5 - 30 VDC input. Server features data transfer rates of up to 1000000 baud and coupled with 1 Mbps line drivers which deliver uncompromising performance..Network Certificates and standards: 10Base-T/100Base-Tx.LAN Ports: Ethernet 10Base-T/100Base-Tx.Connectivity technology: Wired.Protocol: Ethernet, fast ethernet, RS-232, RS-422, RS-485 data link, TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP network/transport.Form factor: DIN rail mountable.Status indicators: Port status, link activity, link OK.Voltage required: 5 - 30 VDC.Power consumption: 2.9 W.OS required: Microsoft Windows 2000/2008/2003 Server, Windows Vista/7/xP/ (32/64 bits).Operating distance: RS422/485 standard (4000 ft : 1200 metres) / EIA - RS232.Max baud rate: 1000000 baud.Features: Flow control, full duplex capability, auto-uplink (auto MDI/MDI-x).Operating tempreature: 176 - -22 deg F.Operating humidity range: 5 - 95 (non-condensing).Certifications and Standards: ISO 9001, ISO 14001, EMC, RoHS, WEEE, IEC 60529 IP30.Warranty: lifetime.Brainboxes Device server has removable screw terminals blocks for easy wiring and supports legacy software using COM port interfacing.

Brainboxes 2-Port 9-pin DB-9 male RS422 to serial adapter is an effective solution to extend your device connectivity and provides two RS422/485 serial ports to offer peak performance. Delivers uncompromising performance on your laptop/PC with 128 byte deep transmit and 384 byte receive FIFOS coupled with 1Mbit line drivers. Supports 32 bit and 64 bit operating systems that includes Windows XP/Server 2003/Vista/Server 2008/Windows 7/8. Comes with IP-30 rated enclosure for added durability and protection..Serial adapter that is compatible to connect with various devices.USB for quick data-transmission.Full duplex, half duplex autogating modes for transmission, reception.Compatible with Microsoft Windows 8/7/Server 2008/Vista/Server 2003/XP OS.Includes US-313 x USB 2 port RS422/485 1M baud, installation CD including manual, Microsoft signed drivers and utilities.Measures 1.1" x 4.1" x 4".Copper offers good conductivity.Lifetime limited warranty.Meets WEEE, RoHS certification and standards.Weighs 4.06 oz.Brainboxes 2-Port 9-pin DB-9 male RS422 to serial adapter enhances productivity by connecting your computer to serial comms enabled devices. Transfers at 480 Mbps data rate.

Brainboxes USB to serial adapter features drivers for all popular operating systems including Windows 8. Adapter has external form factor and is PC platform supported with 2 x 9-pin DB-9 male RS-232 serial ports..USB 2.0.Data transfer rate: Up to 921600 baud, USB 2.0: 480 Mbps.Ports: 2 x 9-pin DB-9 male RS-232 serial.Dimensions: 4" x 4.1" x 1.1".Form factor: External.Power consumption: 100mA at 3.3V.Serial port: Ports: 2, Protocol: RS232, Connector: DB9 connector - 9 pin male, Tx FIFO size: 128, Rx FIFO size: 384.Operating distance: EIA - RS232 standard, Tx FIFO size: 128, Rx FIFO size: 384.Max baud rate: 921600, Data bits: 7 or 8, Parity: odd, even, none, mark or space, Stop bits: 1 or 2, Flow control: RTS/CTS, DSR/DTR, Xon/Xoff.Tx/Rx modes: Point to point.PCB layers: 4.Platform supported: PC.Operating system: Microsoft Windows 7/Server 2008/Vista/Server 2003/XP/2000.Certifications and standards: RoHS, WEEE.Weight: 3.84 oz..Warranty: Lifetime limited.Black.Brainboxes USB to serial adapter has data transfer rates up to 921.60 Kbps and features high retention USB socket.

Brainboxes Ethernet to DIO 8 digital inputs and 8 digital outputs + serial port supports factory floor process control and has integrated DIN rail mount. Port controls any input or output from TTL to high voltage high current industrial devices..Dimensions: 128 mm(H) x 22.6 mm(W) x 102 mm(D).For device with a web browser, Microsoft Windows 8 editions/server 2012/server 2008 R2/server 2008/Vista/server 2003/XP/2000, Android, iOS, Mac OS X, Linux operating systems.Control any input or output from TTL to high voltage high current industrial devices.Interfaces/ports: 1 x network (RJ-45)-port, 1 x serial-port.Power: Unregulated 5 - 30 VDC, reverse polarity protection, 2.5 W max power consumption.Media type supported: Twisted pair.Ethernet technology: Fast ethernet, Network standard: 10/100BASE-TX.Form factor: Rail-mountable.Isolation: 1500VRMS magnetic isolation from ethernet.Tx/Rx FIFO size: 2048/2048, Watchdog: Active high/low, pulsed high/low.Operating distance: 4000'.Operating temperature: -30 - 80 deg C, Ambient relative humidity: 5 - 95% (non-condensing).Network enable your NuDAM/ADAM modules.Factory floor process control and automation.Removable screw terminal blocks make installation easier and quicker.Colour coded blocks and-ports prevents incorrect connection, numbered-pins simplifies wiring and removes confusion.Includes ED-588 ethernet to digital IO 8 inputs plus 8 outputs, installation CD (manual, Microsoft signed drivers and utilities, quick start guide).Compliant and standards: RoHS, WEEE, CE, CCC-Mark, C-Tick.Weight: 18.17 oz..Warranty: Lifetime limited.Brainboxes Ethernet to DIO 8 digital inputs and 8 digital outputs + serial port supports fast Ethernet technology and has rail-mountable form factor.

Brainboxes ED-516 16 Digital input device server is well suited as RS485 Gateway for connecting with industry standard NuDAM, eDAM and ADAM modules. Server has 16 non-isolated digital input channels for better performance. Server is implemented using Windows COM port driver that is compatible with all PC packages. Server has latched inputs that stay true until acknowledged. Provides user programmable count that is positive or negative transitions of up to 100Hz. Has RJ45 Jack 10/100 MHz autosensing, cross over autosensing type network ports. Server has ICMP, IP, TCP, DHCP, HTTP network protocols. Provides 1500 V magnetic isolation between ports and network for better protection. Server is compatible with Microsoft Windows 8, Microsoft Windows 7, Windows Server 2008 and more..Measures 5" x 0.9" x 4".Features network RJ-45, serial ports for reliable connectivity.Rail-mountable form factor.Offers fast ethernet and 10/100Base-TX network for quicker operation.Offers twisted pair connectivity.Supports ICMP, IP, TCP, DHCP, HTTP network protocols for reliable connection.Has 5 - 30VDC input power and is reverse polarity protected as well as operates at an input voltage of 35 V.Works smoothly on Microsoft Windows 8 32 bit & 64 bit and 7 32 bit & 64 bit operating system.Has an operating temperature of -30 to +80 deg C and storage temperature of -40 to 85 deg C.Meets RoHS, CE, TAA, CCC-Mark and C-Tick certification/standards.Weighs 4.8 oz.Operating systems: Microsoft Windows 8/7/ (32-bit/64 bit), Windows Server 2003/2008/Vista/XP (32-bit/64 bit).Monitor any input from TTL to high voltage high current industrial devices, RS485 gateway for connecting to Industry standard NuDAM, eDAM and ADAM modules.Removable, numbered, colour coded screw terminals.Includes: Installation CD including manual, Microsoft signed drivers & utilities, quick start guide.Certifications and standards: CE, CCC-Mark, C-Tick, RoHS, WEEE, Green compliant.Weight: 4.8 oz..Warranty: Lifetime.Brainboxes Ethernet to 16 digital input device server helps to monitor any input from TTL to high voltage high current industrial devices. Comes with rail-mount form factor.

Light Industrial/Commercial Ethernet 8-port unmanaged switch. Galvanically isolated ports. Power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable for easy wiring. Power consumption is optimized based on the status of the link device. No software required. Perfect for factory floor, in vehicle and marine applications. Wall mountable using mounting screw holes, optional DIN Rail mount accessory available..Light industrial/commercial Ethernet unmanaged switch.Eight 10/100Mbps Ethernet ports.Dimensions: 4.3"H x 3.9"W x 1.2"D.Wide power input: 5-30VDC.Meets or exceeds Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE, METL, UL 60950-1 standards.IP30 nonconducting polyamide casing prevents electrical conduction, for safer installation.No software needed: simply plug in any Ethernet cable.Power consumption is optimized based on the status of the link device.All Ethernet ports are Auto MDI/ MDIX supporting straight through or crossover Ethernet cables.Easy wire removable screw terminal block.Wall-mount holes compatible with MK-048 DIN mount clips.Lifetime manufacturer limited warranty

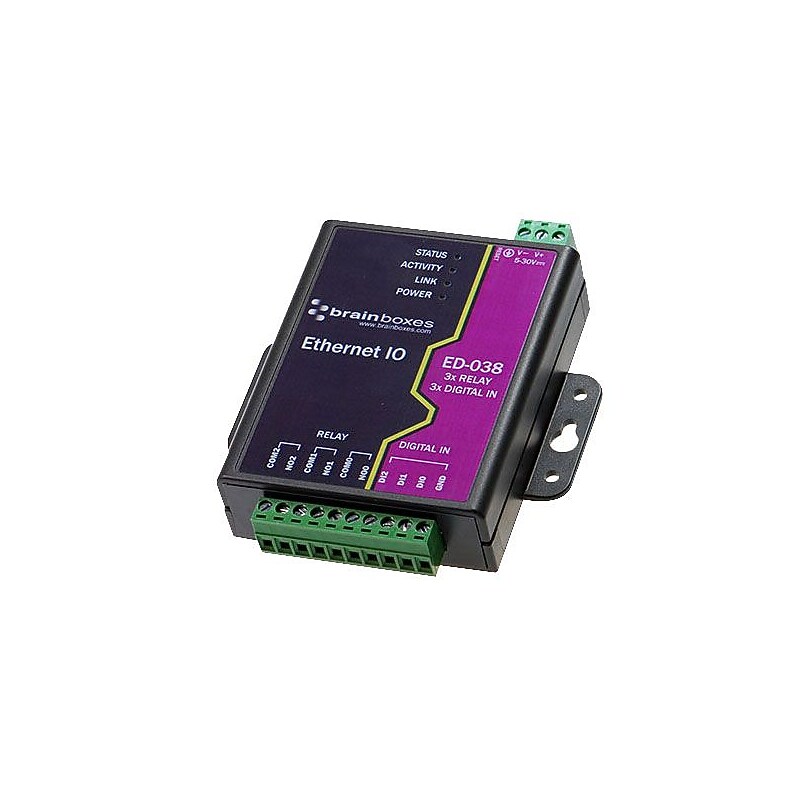

Brainboxes Ethernet to 3 relay + 3 digital input has user friendly software interface and is legacy compatible. Relay is used to control and switch AC or DC motors, fans, pumps, voltage regulators and battery chargers..IO channels: 3 digital inputs and 3 relays, 3 digital inputs, logic level 0: 0 - 1 V, logic level 1: +2 - +30 V.Latched inputs: Triggered by user programmable positive or negative edges, stays true until acknowledged.Drives high current and high voltage loads ideal for inductive, capacitive and resistive loads.Counter Inputs: User programmable- counts positive or negative transitions up to 100 Hz.Watchdog: Active high/low, pulsed high/low, digital outputs: 3 relays, digital output type: Form a relay, maximum output load voltage: 30 VDC, 250 VAC.Serial gateway: RS485 NuDam/ADAM compatible gateway.Power input: 5 - 30 VDC input, reverse polarity protected, Global power supply: PW-600, 35 V.Maximum output current sink: 5 A per channel.Power consumption: Input: 5 - 30 VDC 100 mA at 24 V 2.5 W max.Dimensions: 4.6" x 4" x 1.1".User friendly software interface, Legacy compatible.System requirements: Microsoft Windows 8 32 bit & 64 bit editions, Windows server 2012, Android, iOS, Windows Vista, Mac OS X.Includes ED-038 Ethernet to digital IO relay, installation CD including manual, Microsoft signed drivers and utilities and quick start guide.Certifications and standards: WEEE, RoHS.Weight: 0.136 kg.Warranty: Lifetime limited.Brainboxes Ethernet to 3 relay + 3 digital input drives high current as well as voltage loads that is ideal for inductive, capacitive purpose and supports temperature of 0 deg C to +60 deg C.

The Brainboxes ED-538 Ethernet to digital IO relay gateway is suitable for use with CNC machines/PLCs, gauges/dials, counters, sensors, motor and fan. It has eight digital inputs and four relays digital outputs. This reverse polarity protected gateway has redundant DC dual power inputs. It works with Microsoft Windows® 10, Microsoft Windows® 8/7/XP/Vista 32-bit and 64-bit Editions, Microsoft Windows® Server 2012, Android, Mac OS X and Linux operating sytem. Removable terminal block has color-coding and numbering for easy wiring. It supports simple ASCII or industry standard Modbus TCP..Dimensions: 5" x 4"x 0.9".IO channels: Eight digital inputs and four relays digital outputs, Modbus TCP or DCON ASCII (over TCP or Virtual COM port) IO protocols.Input logic level 0: -30 to 1, Input logic level 1: 2 V to 30 V, Input latches: Triggered by user programmable positive or negative edges.Serial port: RS485 NuDam/ADAM compatible serial gateway.Network: RJ45 jack 10/100 MHz autosensing, cross over autosensing (MDIX), ICMP, IP, TCP, DHCP, HTTP network protocols, 1500 V magnetic isolation.Power: Redundant DC dual power inputs, reverse polarity protected 5 VDC to 30 VDC, 35 V maximum input.Operating systems: Microsoft Windows 10, Microsoft Windows 8/7/XP/Vista (32 bit and 64 bit), Windows Server 2012/2008/2008 R2, iOS, Mac OS X, Linux.Easy-wire - color coded and numbered removable terminal blocks.Factory floor process control and automation, integrated DIN rail mount.Supports simple ASCII or industry standard Modbus TCP.Software: APIs for Visual Basic, C#.WEEE, RoHS compliant.Weight: 5.26 oz..Brainboxes Ethernet to DIO relay is well suited for factory floor process control and automation. Relay comes with DIN rail mount form factor for convenience.

Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited..This unmanaged Gigabit Ethernet switch features five ports, supports speeds of 10/100/1000 Mbps, and operates without the need for configuration..Data transfer rate of 10/100/1000 Mbps, supporting Gigabit Ethernet speeds.It has a mega compact form factor, measuring just 55 x 55 x 16 mm (2.17 x 2.17 x 0.63 inches), which is smaller than a standard business card..Designed for straightforward plug-and-play operation without the need for configuration.With a throughput of 10/100/1000 Mbps, this device supports Gigabit Ethernet speeds and operates in a non-blocking layer 2 mode, ensuring efficient data transfer without packet loss..Maximum power consumption of 3.3W.Industrial operating temp (-40 °C to +85 °C / -40°F to +176°F).Seamless integration with design software - logical placements and fixed distances.Board to board and board to cable connection.LEDs visible in all orientations – can be directed to outer casing via fiber optics or light pipe, or electrically wired.Comes with a 10 year limited warranty
