Lantronix Serial to Ethernet Adapters

Lantronix® Xdirect SGL port device comes with an c Ethernet port and serial cable, multiple power options. Port device provides a portable, extremely flexible and highly affordable network connectivity solution..Interfaces/ports: 10Base-T /100Base-T (auto-sensing), DB9F (DCE pinned).Dimensions: 9 1/2"(H) x 1.3"(W) x 1.1"(D).Modes: RS232, RS422* or RS485* (2 and 4 wire support).Baud rate: 300bps to 921.6 Kbps.Characters: 7 or 8 data bits, stop bits: 1 or 2.Parity: Odd, even, more.Control signals: CTS/RTS (hardware).Flow control: CTS/RTS, XON/XOFF.Connector: RJ45.Protocols: UDP, TCP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, HTTP, Telnet com port control.Power/status, link, activity, serial RX activity and TX activity.CPU: Based on DSTni-EX enhanced 16-bit x86 architecture.Memory: 256 KB SRAM, 1 MB flash.Input voltage: 5 V at mini-USB-B jack, input voltage: 5 - 15 VDC at DB9F pin 9.128/192/256-bit AES encryption.Environmental conditions: -40 - 85 deg C non-PoE models, -40 - 70 deg PoE model, humidity: 0% - 90% non-condensing.Weight: 0.15 lbs..Warranty: 5 years limited.Lantronix® Xdirect SGL port device is a compact serial-to- Ethernet device server and offers quick as well as easy Ethernet connectivity to virtually any device or machine with a serial interface.

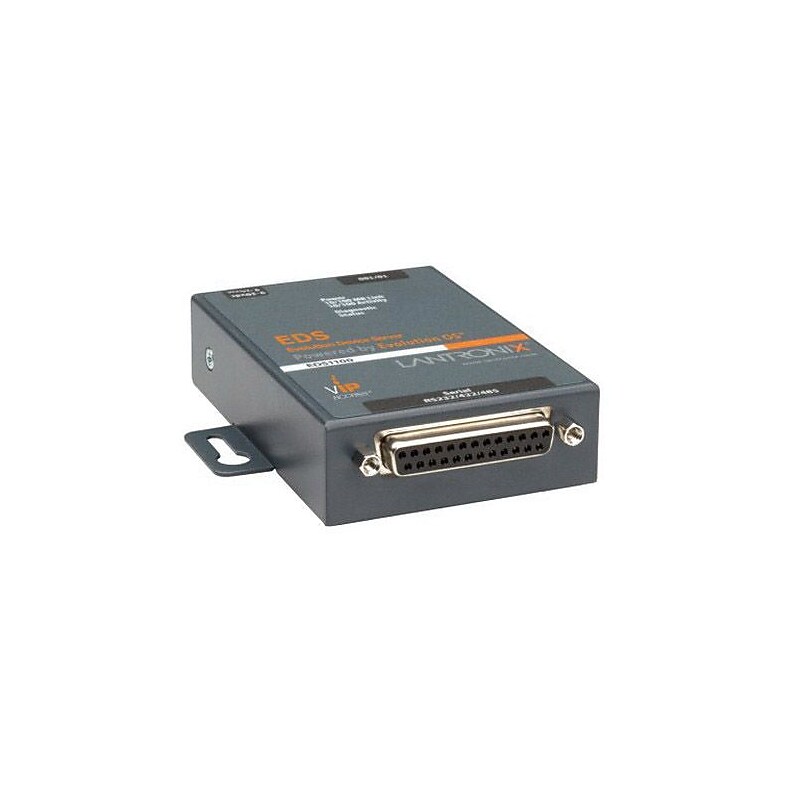

Lantronix® ED1100002-01 1-Port Secure serial to IP ethernet device server meets the most demanding dynamic computing workloads. It delivers increased performance with the exceptional memory..Measures 0.9"H x 2.5"W x 3.5"D.Runs on high performance 32-bit processor for reliable performance.Has 8MB SDRAM with 8MB flash memory for optimum storage.Supports twisted pair media.Has 1 port for easy connectivity.Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity.Supports software selectable RS232, RS422 or RS485, software selectable RS485/422 termination and biasing modes.Has 1 x Network (RJ-45) port for easy connectivity, has XON/XOFF types flow controls, supports CTS, RTS, DTR/DCD modem control signals.Operates in 10BaseT and 100Base-TX Link network using HTTP, HTTPS, FTP, TFTP, Telnet, TCP/IP, UDP/IP, LPD,DHCP protocols.Supports security protocols like SSL v3, SSH v2 client & server.Power supply is rated at 9 - 30 VDC, 1.8 W maximum.Supports desktop form factor.Supports Windows 98/NT/2000/XP/Vista-Based DeviceInstaller™, ComPort Redirector™, Secure ComPort Redirector softwares.Supports internal web manager, CLI, XML configuration records via CLI or FTP, DeviceInstaller software management.Meets FCC part 15, subpart B, Class A, EN55022, Class A, EN55022 and EN55024, EN61000-4-2, EN6100-4-3 certifications and standards.Weighs 0.20 kg.Comes with 2 years limited warranty.Gray.Lantronix® 1-Port Secure serial to IP ethernet device server has the ability to with stand demanding environmental conditions.

Lantronix® UD1100002-01 1-Port Device server enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet. On-board Flash memory offers room for future system software upgrades and maintenance-free, non-volatile web page storage. The built-in web server enables users to access and configure this server from a standard web browser..Measures 0.9"H x 2.5"W x 3.5"D.Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance.Has 256KB SDRAM with 2MB flash memory for optimum storage.Has 1 port for easy connectivity.Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity.Supports RS232, RS422 or RS485 modes, 300 to 921.6 kbps data rates and has 2 DB9 DTE serial ports for connectivity.Has 1 x Network (RJ-45), 1 x parallel ports for easy connectivity.Operates with 10Base-T/100Base-T interface at a speed of 10/100/Auto Mbps with the aid of RJ45 connector.Supports protocols like ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP and Telnet, TFTP, RFC2217.Power supply is rated at 100 - 240 VAC, 1.8 W max.Supports wall-mountable form factor.Supports Windows 98/ME/NT/2000/XP/Vista (32-bit versions) DeviceInstaller configuration software.Box includes UD1100002-01 device server, power adapter, DeviceInstaller Software, Com Port Redirector software.Meets FCC, C/UL, CSA, VCCI, CE, TUV, Ctick certifications and standards.Weighs 0.4 kg.Comes with 2 years limited warranty.Includes UD1100002-01 device server, device installer software, com port redirector software.Weight: 7.05 oz..Black.Lantronix® 1-Port Device server is a quick, simple & inexpensive way to bring the advantages of remote management to equipment. Delivers increased performance with the best memory.

Lantronix® UD1100001-01 1-Port Serial to IP ethernet device server enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet. Replace dedicated PCs and modem lines with fast and reliable Ethernet networking. It features TruPort Com port control technology for better performance..Measures 0.9"H x 2.5"W x 3.5"D.Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance.Has 256KB SDRAM with 2MB flash memory for optimum storage.Has 1 port for easy connectivity.Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity.Supports RS232, RS422 or RS485 modes, 300 to 921.6 kbps data rates and has 2 DB9 DTE serial ports for connectivity.Has 1 x Network (RJ-45), 1 x parallel ports for easy connectivity.Operates with 10Base-T/100Base-T interface at a speed of 10/100/Auto Mbps with the aid of RJ45 connector.Supports protocols like ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP and Telnet, TFTP, RFC2217.Power supply is rated at 110 VAC, 1.8 W max.Supports wall-mountable form factor.Supports Windows 98/ME/NT/2000/XP/Vista (32-bit versions) DeviceInstaller configuration software.Box includes UD1100001-01 device server, DeviceInstaller software, Com Port Redirector software.Meets FCC, C/UL, CSA, VCCI, CE, TUV, Ctick certifications and standards.Weighs 0.4 kg.Comes with 2 years limited warranty.Black.Lantronix® Device server features Fast Ethernet technology that offers better performance. It supports RS232, RS422 and RS485 communications.

Lantronix® UD1100IA2-01 1-Port Serial to ethernet industrial device server is a rugged and powerful tool that enables users to connect, manage and control just about any piece of industrial equipment from virtually anywhere over Ethernet or the Internet. In minutes, securely connect factory floor devices to enterprise systems. Support RS-232, RS-422 and RS-485 communications..Measures 0.9"H x 2.5"W x 3.5"D.Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance.Has 256KB SDRAM with 2MB flash memory for optimum storage.Has 1 port for easy connectivity.Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity.Supports a baud rate of 300 bps to 230 Kbps.Has 1 x Network (RJ-45), 1 x parallel ports for easy connectivity, XON/XOFF (software), CTS/RTS (hardware) types flow control.Operates with 10Base-T/100Base-T interface at a speed of 10/100/Auto Mbps with the aid of RJ45 connector.Supports protocols like ARP,UDP,TCP, ICMP,Telnet,TFTP, AutoIP,DHCP,HTTP, SNMP, TCP,UDP and Telnet,TFTP.Power supply is rated at 9 - 30 VDC, 3.3 VDC on serial interface.Supports wall-mountable form factor.Supports Windows 98/ME/NT/2000/XP-based DeviceInstaller configuration software, Com Port Redirector™ softwares.Supports Lantronix DeviceInstaller GUI, Serial login,SNMP, Telnet login,HTTP management.Box includes UDS1100-IAP industrial device server, 500-163 serial cable.Meets UL, CSA, FCC, CE,TUV, CTick,VCCI certifications and standards.Weighs 0.20 kg.Comes with 2 years limited warranty.Weight: 7.05 oz..Black.Lantronix® 1-Port Device server is a quick, inexpensive & simple way to bring the advantages of remote management to equipment. Delivers increased performance with the best memory.

The EDS4100 is the first external device server to deliver an enterprise-grade, programmable device computing and networking platform for integrating edge equipment into the enterprise network..Ports: 4 x DB 9, 1 x RJ 45.Dimensions: 3.8"(H) x 17.7"(W) x 12.7"(D).Compatibility: PC.Form factor: Wall mountable, Processors installed: 1 x 266 MHz.Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485.Interface/ports: 2 x serial - RS 232 - 9 pin D Sub (DB 9), 2 x serial - RS 232/422/485 - 9 pin D Sub (DB 9), 1 x network - Ethernet 10base T/100Base TX - RJ 45.Connectivity technology: Wired.Status indicators: Link activity, power, test mode.OS compatibility: Microsoft windows 98/ME/NT/2000/XP.RAM Installed ( Max ): 32 MB, Flash Memory Installed (Max): 8 MB.Operating temperature: 32 - 131 deg F, Humidity: 10 - 90%.Encryption algorithm: Triple DES, ARCFOUR, AES, SSL 3.0, Authentication method: Secure shell v.2 (SSH2).Co mmunication mode: Half duplex, full duplex, IEEE 802.3af (when PoE is populated), 128 bit encryption, DHCP support, BOOTP support, ARP support.Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP 2, Telnet, HTTP.Includes: EDS4100 4 port device server with PoE, universal power supply and regional adapters, deviceInstaller configuration software, com port redirector software and related utilities.Certificate and standards: UL, TUV GS, VCCI, C Tick, cUL, EN 61000 3 2, IEC 61000 4 11, IEC 61000 4 2, IEC 61000 4 3, IEC 61000 4 4, IEC 61000 4 5, IEC 61000 4 6, IEC 61000 4 8, EN 61000 3 3, EN55024, EN55022 Class A, CISPR 22, FCC Part 15, RoHS.Weight: 1.90 lbs..Warranty: 2 years limited.Lantronix EDS Series PoE Device Server - Faster Ethernet Connection

Network (RJ-45): Yes.USB: Yes.Serial Port: Yes

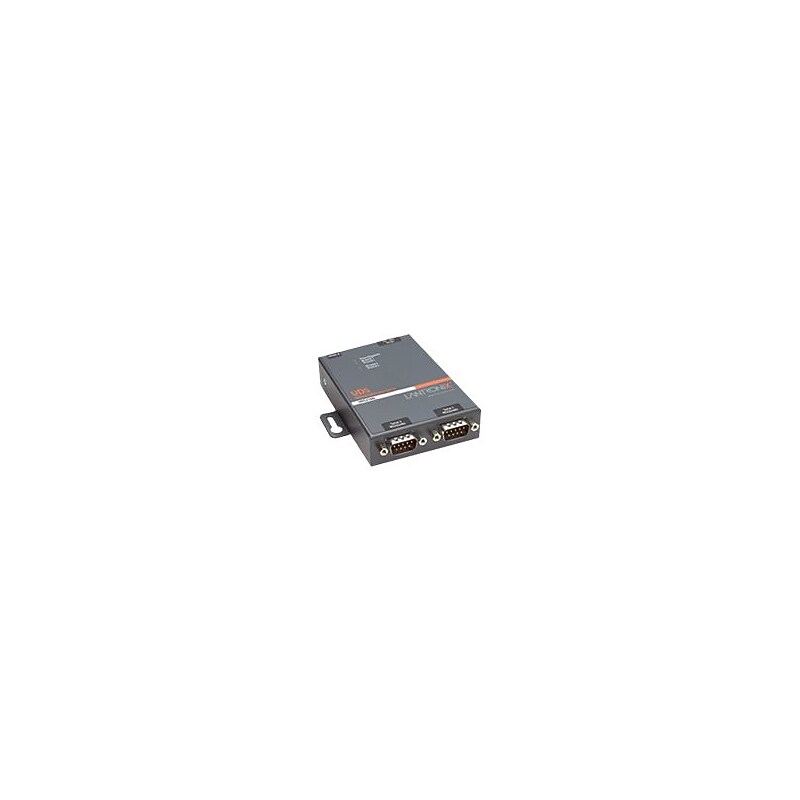

Lantronix® Device server enables users to connect, manage and control any piece of equipment from virtually anywhere over Ethernet. Server is a single port wall mountable dual-port device offers control to equipment..Compatibility: PC.Network standard: 10/100Base-TX.Dimensions: 0.9"H x 2.8"W x 3.7"D.CPU: Lantronix DSTNI-EX 48 MHz clock.Protocols: Arp, Icmp/ip, Tcp/ip, Udp/ip, Dhcp, Http, Snmp, Telnet.Number of ports: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485.Operating supply voltage: 9 - 30 V.Power consumption: 1.8 W.Memory: 256KB SRAM, 2MB flash.Minimum operating system required: Microsoft Windows 98/ME/NT/2000/XP.Status indicators: Link activity, Port duplex mode, Power, Status.Black.Lantronix® UD2100002-01 Device Server is a single port wall mountable device server that comes with Lantronix DSTNI-EX 48 MHz clock processor, designed for PC.

The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet..Ports: 1 x RJ 45, 1 x DB 25.Dimensions: 3 1/2"(H) x 2 1/2"(W) x 0.9"(D).Compatibility: PC.Form factor: Wall mountable, Processor speed: 48 MHz.Ethernet technology: Fast ethernet, Data link protocol: Ethernet, fast ethernet, RS 232, RS 422, RS 485.Interface/ports: 1 x serial - RS 232/422/485 - 25 pin D Sub (DB 25), 1 x network / power - Ethernet 10base T/100Base TX - RJ 45.Connectivity technology: Wired.Status indicators: Link activity, power, status.Standard memory: 256 KB, Memory technology: SRAM, Flash Memory installed (Max): 2 MB.Operating temperature: 41 - 122 deg F.Input voltage: 30 VDC.Software selectable RS232, RS422 or RS485, flow control, DHCP support, ARP support, half duplex mode, full duplex mode.Network protocols: TCP/IP, UDP/IP, ICMP/IP, Remote management protocol: SNMP, Telnet, HTTP.Certificate and standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, UL, CSA, FCC, CE, TUV, C Tick, C Tick.Weight: 7.05 oz..Warranty: 2 years limited.Latronix Device Server with PoE - Simplicity and Speed

Lantronix® XSDR22000-01 XPress-DR+ 4-Port Industrial device server enables users to remotely configure, monitor and control PLCs, drives, motion controllers, power equipment, barcode scanners and other serial devices from anywhere over the Net. It provides complete access and control of virtually any type of equipment with a serial port..XPress-DR+ industrial device server allows users to remotely configure, monitor and control PLCs.Measures 2.2"H x 4.8"W x 3.5"D.Runs on Lantronix DSTNI-EX 48 MHz processor for reliable performance.Has 256KB SDRAM with 2MB flash and 2KB EEPROM memory for optimum storage.Has 4 ports for easy connectivity.Supports 7 or 8 data bit characters, 1 or 2 stop bits and odd, even, none parity.Supports a baud rate of 300 to 230 Kbps and 1 screw terminal RS-422/485 interface on serial port 2.Has 4 x Network (RJ-45) ports for easy connectivity, supports DTR, DSR modem control signals, XON/XOFF (software), CTS/RTS (hardware) flow control.Operates in embedded, unmanaged, fully compliant 802.3u non-blocking network with 2 RJ45 10Base-T/100Base-TX Ethernet ports.Supports protocols like ARP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP and HTTP.Power supply is rated at 9 - 30 VDC or 9 - 24 VAC with chassis ground and 2.6 W, has removable screw terminal block connector.Has front panel recessed push button for resetting.Supports internal web server, SNMP v2, Serial login, Telnet login, DeviceInstaller software management.Meets UL, CSA, FCC, CE, TUV, CTick, VCCIs certifications and standards.Weighs 0.21 kg.Black.Lantronix® Industrial device server enables remote firmware upgrades, saving time and money.

Lantronix Single port device server provides a portable, extremely flexible and highly affordable network connectivity solution. Server features serial data rate of up to 921.6 Kbps..Network Certificates and standards: 10Base-T/100Base-Tx.LAN Ports: Ethernet 10Base-T/100Base-Tx.Wired router security: 128-bit AES, 192-bit AES, 256-bit AES encryption.Connectivity technology: Wired.Protocol: Ethernet, fast ethernet, RS-232, RS-422, RS-485 data link, TCP/IP, UDP/IP, ICMP/IP, BOOTP, DHCP network/transport, SNMP, Telnet, HTTP, TFTP remote management.Form factor: External.Status indicators: Power, status, link/activity, serial.Power consumption: 2 W.OS required: Microsoft Windows 2008/2003 server, Windows Vista/7/xP/ (32/64 bits).Data rate: 300 bps - 921.6 kbps, 10 Mbps, 100 Mbps.Features: Flow control, auto-sensing per device, DHCP support, 15 KV electrostatic discharge protection.Operating tempreature: 70 - -40 deg C.Processors: 1 x installed, 256 KB SRAM, 1MB flash memory installed.Certifications and Standards: VCCI, C-Tick, EN 61000-3-2, EN 61000-3-3, EN55024, CISPR 22, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, IEEE 802.3af.Lantronix Single port device server is a sleek and compact serial-to- Ethernet device server providing quick and easy Ethernet connectivity to virtually any device or machine with a serial interface.

The Lantronix® XPress™ DR-IAP industrial device server with 10/100Base-TX Fast Ethernet connectivity, allows you to connect, manage and control any equipment with a serial port from nearly anywhere through a network or the Internet. The installable industrial protocols support various communication drivers. It has one RJ-45 network port and one RS-232/422/485 serial network port for enhanced connectivity. This device server is a quick, simple and inexpensive way of adding Ethernet connectivity to virtually any device with a serial interface..Industrial device server with installable industrial protocols allow virtually any serial device to connect to a new or existing Ethernet network.Dimensions: 3.54"H x 1.4"W x 2.4"D.High-impact plastic for durability.Media type supported: Twisted pair.Connectivity: 10/100Base-TX Fast Ethernet, Data rates: 300 - 115200 bps, Characters: 7 or 8 data bits.Interfaces/ports: Network (RJ-45), RS-232/422/485 serial.Form factor: DIN rail-mountable.Connector type: Terminal block (screw).Power supply: 9 - 24 VAC/9 - 30 VDC, Power consumption: 3 W (operational).Network transport protocol: ARP, BOOTP, DHCP, ICMP/IP, TCP/IP and UDP/IP.Remote management protocol: HTTP, SNMP, Telnet and TFTP.Status indicators: Active, fail, link ok, ready, receive and transmit.Operating system: Microsoft Windows.Meets UL, CSA, CE, RCM, VCCI and RoHS certifications and standards.Comes with 1 year limited warranty

The Lantronix UD2100001-01 device server has 256KB SRAM memory and 48 MHz processor speed. It withstands voltage rating of 120 VAC. Server has data transfer rate 100 Mb/s and is suitable for business purpose. It measures 0.9" x 2.8" x 3.7". Server is UL/cUL listed, RoHS compliant and CSA certified..Wall mountable device server enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere.Processor speed: 48 MHz.Memory: 256KB SRAM memory with 2MB flash.Dimensions: 0.9"H x 2.8"W x 3.7"D.Interface/ports: Fast Ethernet, network (RJ-45), two serial ports.System requirements: Microsoft Windows 98/ME/NT/2000/XP.Power: 120 VAC, Consumption: 1.8 W.CSA certified, UL/cUL listed, FCC certified, RoHS Compliant, meets TUV, VCCI, WEEE certifications and standards.Data transfer rate: 100 Mbps.Management: HTTP, SNMP, Telnet.Network protocols: ICMP/IP, TCP/IP, UDP/IP.Features: ARP support, DHCP support, flow control, full duplex mode, half duplex mode, manageable.Box includes UDS2100 2-Port device server, power adapter, DeviceInstaller Software, Com Port Redirector software.Meets FCC, C/UL, CSA, VCCI, CE, TUV, Ctick certifications and standards.Weighs 0.4 kg.Comes with 2 years limited warranty.Includes UDS2100 2-port device server, power supply, device installer software, com port redirector software and related utilities.Certifications and standards: FCC, C/UL, CSA, VCCI, CE, TUV, CTick.Weight: 14.11 oz..Warranty: 2 years limited.Black.Lantronix® 2-Port Device server features Fast Ethernet technology that offers better performance. It has two DB9M DTE serial ports supporting RS232, RS422 and RS485.

The Lantronix® EDS2100 hybrid Ethernet terminal and multiport device server which allows remote access to and management of virtually any IT/networking equipment or edge device such as medical equipment, POS terminals or security equipment. The EDS1100 device server converts your RS232/422/485 serial port to a high speed networked 10/100 Ethernet port. The server features Lantronix powerful evolution OS®, with AES, SSH and SSL built in, which allows EDS device server to provide enterprise-level security for safe remote access and management from practically anywhere. It has dual-port 2 x DB9M serial connectors..Desktop server offers reliable and efficient performance.Features 32-bit processor and 8MB SDRAM for high-performance.Flash memory: 8MB.Dimensions: 0.9" x 2.8" x 3.7".Connectivity interface: two DB9M, 10BaseT and 100Base-TX Link network interface.Power: 120/230 VAC input voltage, 1.8 W power consumption external power adapter.Certifications: FCC Part 15, Subpart B, Class A, EN55022, Class A, EN55022 and EN55024, ICES-003 Issue 4, AS/NZS CISPR22, VCCI, CE, C-Tick.ARP support, BOOTP support, syslog support.Nominal voltage: 120/230 VAC, Power consumption: 1.8 W.Media type supported: Twisted pair.Authentication method: Secure Shell v.2 (SSH2), Encryption algorithm: AES, SSL 3.0.Meets AES, C-Tick, CISPR 22, CSA C22.2 No. 60950-1-03, EN 61000-4-11, EN55022 Class A, EN55024, FCC Class A, FCC Part 15, ICES-003, RoHS, U standards.Supports Windows 98/NT/2000/XP/Vista-Based DeviceInstaller™, ComPort Redirector™, Secure ComPort Redirector softwares.Supports internal web manager, CLI, XML configuration records via CLI or FTP, DeviceInstaller software management.Meets FCC part 15, subpart B, Class A, EN55022, Class A, EN55022 and EN55024, EN61000-4-2, EN6100-4-3 certifications and standards.Weighs 0.40 kg.Comes with 2 years limited warranty.Gray.Lantronix® 2-Port Secure serial to IP ethernet device server has the ability to with stand demanding environmental conditions.
