Tripp Lite Rack Mount Power Strips

TRIPP LITE 5-15/20R 32 Outlet 40 A 100 - 127 V Metered Power Distribution Unit provides an efficient and manageable power distribution solution for multiple servers with dual redundant power supplies, or any other application that requires numerous outlets, high capacity, and a compact form factor. The dual input current monitoring display shows AC power consumption for each independent circuit. Switchless design eliminates accidental shutoff of connected equipment. Unfiltered electrical pass-through without a power switch makes the PDUMV40 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Each of two independent circuits' supports 16 outlets and equipment loads up to 2,400 watts 32 outlets and 4,800 watts total capacity without consuming additional rack space..Single phase NEMA 5-20P / NEMA L5-20P 10 ft 40 A 100 - 127 V input.120 V 50/60 Hz output.32 NEMA 5-15/20R outlet connector.40 A overload protection.0U vertical rack mount.Package includes PDUMV40 dual vertical circuit/metered PDU, mounting hardware, two NEMA L5-20P to 5-20P plug adapters, owner's manual with warranty information.All-in-one Zero U form factor enables efficient, single-enclosure installations.Dual independent circuit design delivers high capacity across 32 outlets in minimal space.Switchless design prevents accidental shutdown of connected equipment.Dual digital current monitoring displays (1 for each circuit).Vertical rack mount, wall mount, raceway, workbench style.Form factors supported: Zero U vertical rack mount, wall-mount, raceway, workbench and more.Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications.Combines the advantages of two separate high-current PDU's without the extra expense, increased space requirements and added management complexity.Input plugs, input power cords, breakers and outlets are color-coded to match each independent 20A circuit, allowing simplified cable management for multi-server configurations.Typical applications: Ideal means of powering servers and networking equipment with dual redundant power supplies and other applications requiring numerous outlets, high capacity and a compact form factor.Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS compliant.8.2 lbs.3"(H) x 71 1/4"(W) x 1 1/2"(D).Lifetime limited warranty.TRIPP LITE 5-15/20R 32 Outlet 40 A 100 - 127 V Metered Power Distribution Unit comes with rugged steel casing to ensure maximum durability.

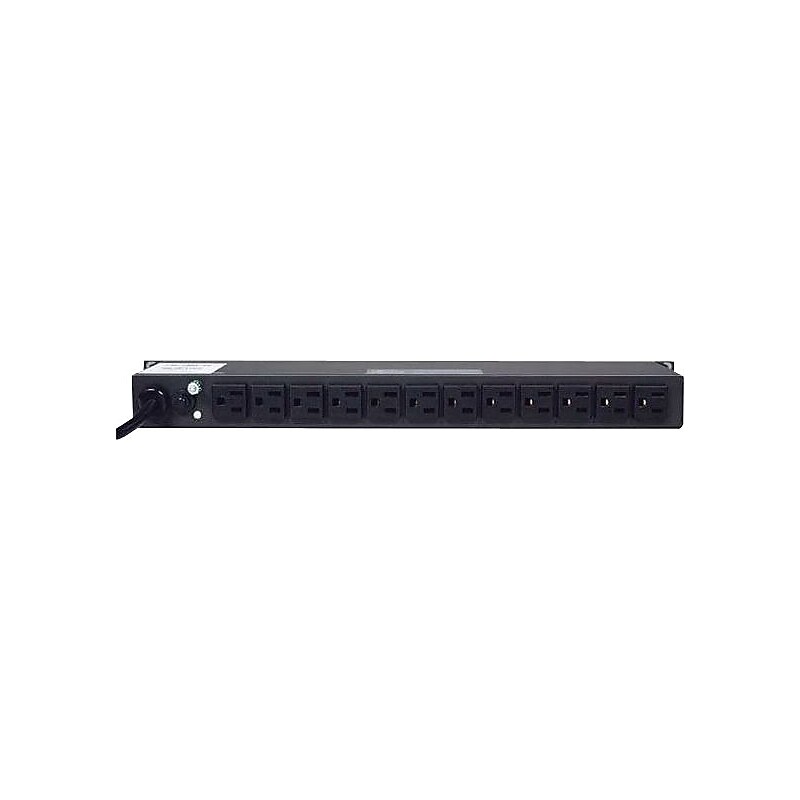

TRIPP LITE 5-15R 13 Outlet 15 A 100 - 127 V Metered Power Distribution Unit offers real-time local reporting of load level in amps via built-in digital meter. It enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. It also offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories..Single phase NEMA 5-15P 15 ft 15 A 100 - 127 V input.120 V 50/60 Hz output.13 NEMA 5-15R outlet connector.15 A overload protection.1U horizontal rack mount.Package includes PDUMH15 metered rack mount PDU, owner's manual with warranty information.Built-in 2 digit visual meter continuously reports PDU load level in amps.Back panel grounding lug.Rack mount, vertical rack mount, wall mount/under-counter style.Outlets center to center measurement: Rear Side = 30.20 mm.Form factors supported: 1U rack mount, 0U vertical rack mount, wall-mount, and under-counter installation.Digital LED current monitor display indicator.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Typical applications: Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rack mount, wall-mount, and under-counter applications such as internetworking, PC systems, telecommunicati.Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS Compliant.4.5 lbs.1 3/4"(H) x 17 1/2"(W) x 4 1/2"(D).Lifetime limited warranty.TRIPP LITE 5-15R 13 Outlet 15 A 100 - 127 V Metered Power Distribution Unit offers real-time local reporting of load level in amps via built-in digital display.

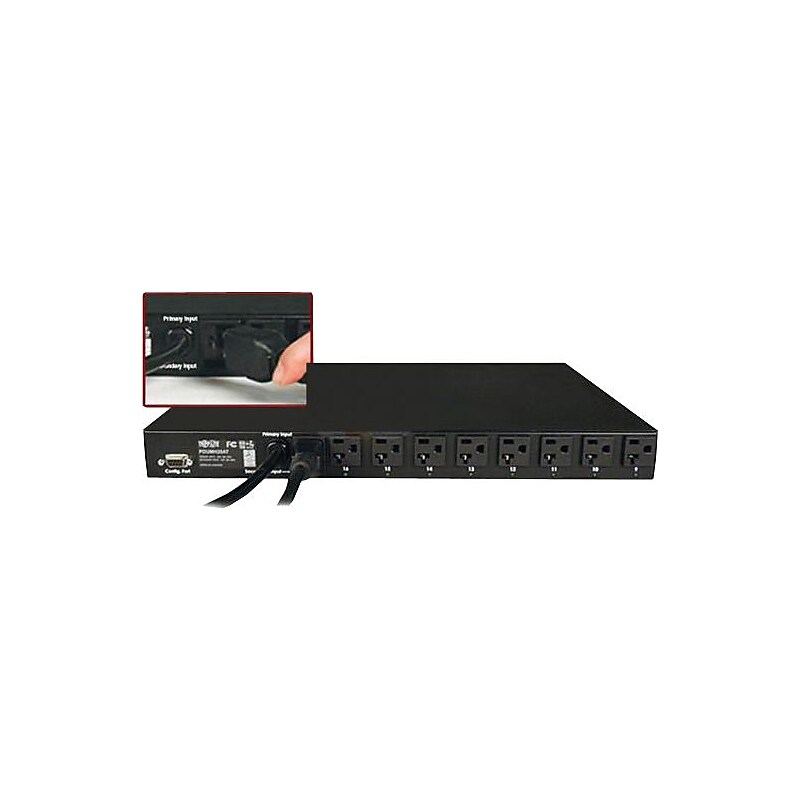

TRIPP LITE 5-15R 8 Outlet 15 A 100 - 127 V Metered Power Distribution Unit provides a redundant power option for single-corded network devices. The dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. It enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. The ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. The front input LED's display primary or secondary power availability..Single phase NEMA 5-15P 12 ft 15 A 100 - 127 V input.120 V 60 Hz output.8 NEMA 5-15R outlet connector.1U horizontal rack mount form factor.Package includes PDU with attached 5-15P input power cord, detachable C13 to NEMA 5-15P 12 ft/3.6m secondary input cord, installable 1U mounting brackets, user manuals with warranty information.2 digit display reports output power consumption in amps.Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds.Front panel LEDs confirm power availability on both input lines.Typical applications: Ideal means to provide single-corded network gear a redundant power option.ATS circuits normally maintain output sourced from the primary input cable, as primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and st.ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported.Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported.On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source.Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup.Indicator type: 10 front panel LEDs display power on - off status for each outlet, plus 3 LEDs for power status on each input line cord, digital current meter displays output power consumption in amps.Certifications: Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant.11 lbs.1 3/4"(H) x 17 1/2"(W) x 14 1/2"(D).2 years limited warranty.TRIPP LITE 5-15R 8 Outlet 15 A 100 - 127 V Metered Power Distribution Unit provides a redundant power option for critical networking equipment with a single input power cord.

TRIPP LITE 5-15/20R 16 Outlet 20 A 100 - 127 V Metered Power Distribution Unit provides a redundant power option for single-corded network devices. The dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. It enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. The ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. The front input LED's display primary or secondary power availability..Single phase NEMA 5-20P / NEMA L5-20P 12 ft 20 A 100 - 127 V input.120 V 60 Hz output.16 NEMA 5-15/20R outlet connector.1U horizontal rack mount form factor.Package includes PDU with attached L5-20P primary input cord, detachable C19 to NEMA L5-20P secondary input cord, set of two L5-20R to 5-20P plug adapters, 1U mounting brackets, user manual with warranty information.2 digit display reports output power consumption in amps.Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds.Front panel LEDs confirm power availability on both input lines.Typical applications: Ideal means to provide single-corded network gear a redundant power option.ATS circuits normally maintain output sourced from the primary input cable, as primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and st.ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported.Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported.On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source.Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup.Indicator type: 16 front panel LEDs display power on - off status for each outlet, plus 2 LEDs for power status on each input line cord, digital current meter display shows total load consumption of connected equipment in amps.Certifications: Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS complaint.12.2 lbs.1 3/4"(H) x 17 1/2"(W) x 14 1/2"(D).2 years limited warranty.TRIPP LITE 5-15/20R 16 Outlet 20 A 100 - 127 V Metered Power Distribution Unit provides redundant power option for critical networking equipment with a single input power cord.

Includes rackbar surge suppressor 14-outlet, mounting brackets (2 sets), cord retention tray, cord organizers, user manual.Input voltage: 120 VAC.Input connection: NEMA 5-15P input plug.15' power cord.Dimensions: 1 3/4"(H) x 17 1/2"(W) x 4"(D).Surge energy rating: 3840 J.Output voltage: 120 VAC.Current: 15 A.Frequency: 50/60 Hz.Outlets: 12 x NEMA 5-15R.Form factor: 1U rack mountable.Protection type: Full normal mode (H-N) and common mode (N-G / H-G) line surge suppression.Material: Metal case.Noise suppression: 40 - 80 dB EMI / RFI.Compatibility: Internetworking equipment, PC systems, telecommunications, audio/video, security, sound reinforcement.Load capacity: 1800 W.Certifications and standards: UL1449 (let through rating 330V), UL1283, cUL, IEEE 587 category A and B.Weight: 4.6 lbs..Warranty: Lifetime limited.Warranty: Lifetime limited.Tripp Lite 12-Outlet rackmount isobar surge suppressor features network grade AC surge suppression with EMI/RFI noise filtering and has an energy rating of 3840 J.

The Tripp Lite PDUMV20-72 1.9 kW single-phase metered PDU provides real-time local reporting of load level in amps through built-in digital display. This PDU provides multi-outlet power distribution from any protected UPS, generator or mains input power source. It features rugged all-metal housing, 36 NEMA 5-15/20R output receptacles and offers secure rackmount installation with included mounting accessories. This PDU comes with NEMA L5-20P input plug with 15' line cord and 5-20P adapter. It contains 20 A circuit breaker and lighted power switch inside a transparent protective cover..Power distribution unit offers reliable and cost effective power distribution.Dimensions: 72"(H) x 1.8"(W) x 1.3"(D).Metal construction for long lasting durability.Receptacles: NEMA L5-20P input and 36 x NEMA 5-15/20R output.Voltage: 120 VAC at 50/60 Hz input/output, Input current: 20 A.Output capacity: 1.9 kW.Input cord length: 15'.Form factor: Vertical.Offers overload protection.Enables visual monitoring of PDU load levels to avoid overloads.Provides reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source.High-quality design incorporates rugged all-metal housing and secure rack mount installation with available mounting accessories.Meets UL60950-1 (USA), UL/CSA60950-1 (Canada), NOM (Mexico), FCC Class A (Emissions), RoHS standards or certifications.Weight: 5.51 lbs..Comes with 2 years limited warranty

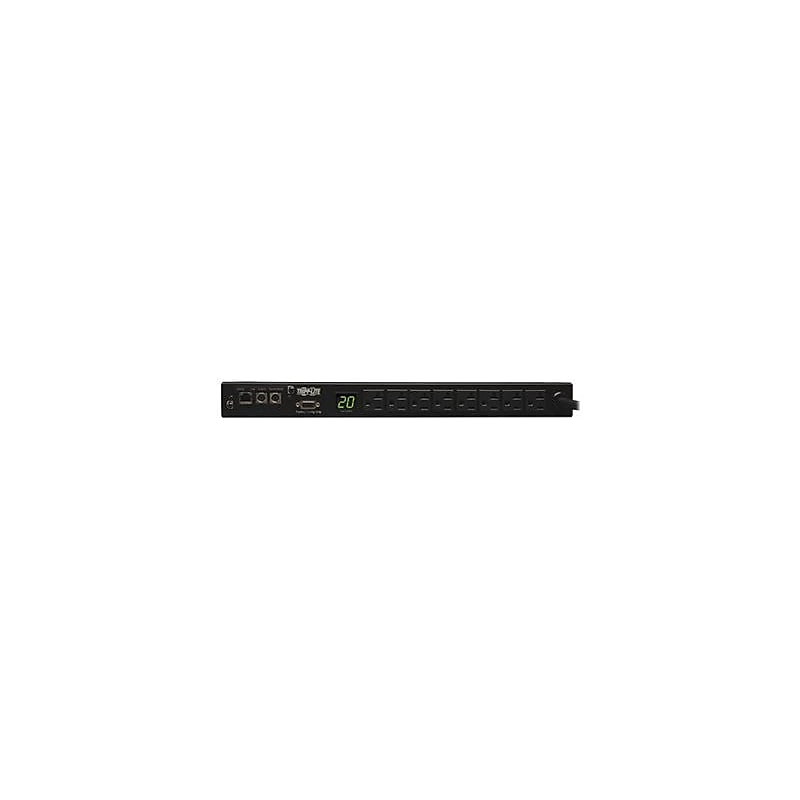

The Tripp Lite PDUMNH20 single-phase monitored PDU with eight outlets, reports voltage, frequency and load level through Ethernet interface. It features lighted display that continuously reports output power consumption in amps. This PDU supports HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and NTP protocols. It offers real-time clock backup to maintain the time of day and date. The 10/100 Mbps auto-sensing feature of this PDU, allows optimal communication with 10/100 Base-T networks..Single-phase monitored PDU SmartOnLine SU2200RTXL2Ua, SU2200RTXLCD2U, SU2200XLCD, SmartPro SM2200RMDVTAA, SMART2200CRMXL UPS.Dimensions: 1.7"H x 17.3"W x 6.2"D.Metal construction for durable use.Output receptacles: Eight NEMA 5-15/20R, Input receptacles: NEMA L5-20P.Input voltage: 120 VAC, Output voltage: 120 VAC, Input current: 20 A.Frequency required: 50/60 Hz, Power rating: 1.9 kW.Cable length: 12'.Management protocols: HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP.Form factor: Horizontal rackmount.Front panel LCD display: Digital meter reports PDU output current in amps.Storage temperature: 5 to 122 deg F, Relative humidity: 5 - 95 percent non-condensing, Operating elevation: 0 - 10000'.Tiered access privileges allow an administrator and a guest to login via web browser.Built-in SNMP/Ethernet interface reports voltage, frequency and PDU loading via network or secure web browser interface using user specified alarm.Supports DHCP/manual configuration and 10/100 Mbps auto-sensing for optimal communication with 10/100 Base-T networks.Contains plug retention plates, rack mount brackets, owner's manual, L5-20R to 5-20P adapter.Meets Tested to UL 60950 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant certifications and standards.Weight: 7 lbs..Comes with 2 years limited warranty

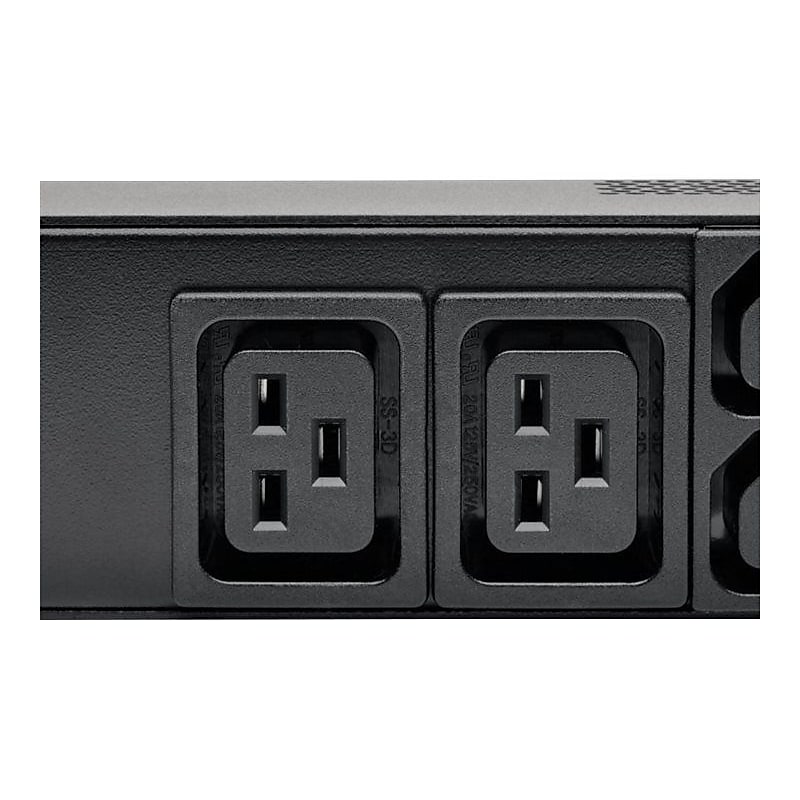

The Tripp Lite PDUMV30HV2 5.8 kW single-phase metered PDU has 48 outlets for distributing single-phase AC power to rack-mounted equipment. The ammeters in this PDU, allows you visually monitor each bank and maintain balanced loads to prevent circuit overloads due to breakers tripping. It has special guards to prevent the breakers from tripping accidentally. This PDU comes with NEMA L6-30P input plug with 10' cord to connect to your AC power source, generator or protected UPS..Power distribution unit offers reliable and cost effective power distribution.Dimensions: 70"(H) x 2.2"(W) x 2.5"(D).Metal construction for long lasting durability.Receptacles: NEMA L6-30P input, eight IEC 60320 C19 and 40 x IEC 60320 C13 output.Voltage: 208/240 VAC at 50/60 Hz input/output, Input current: 30 A.Output capacity: 5.8 kW.Input cord length: 10'.Form factor: Vertical (0U).Offers overload protection.Operating temperature: 32 - 122 deg F (0 - 50 deg C), Storage temperature: 5 - 140 deg F (-15 - 60 deg C).Comes with outlets arrangement in two separate load banks, each with 24 outlets.Ammeters allow you visually monitor each bank and maintain balanced loads to avoid circuit overloads and downtime due to breakers tripping.Special guards aid to prevent the breakers from tripping accidentally while outlets, breakers come color-coded and labeled for easy identification.Contains plug-lock inserts (8 C20, 40 C13), spare installation buttons, 2.9 mm/4.6 mm, ground screw, mounting hardware and owner's manual.Meets UL/CAN 60950-1 (USA, Canada), NOM (Mexico), FCC Class A (Emissions), ROHS, TAA standards or certifications.Weight: 12.35 lbs..Comes with 2 years limited warranty

TRIPP LITE 5-15/20R 12 Outlet 20 A 100 - 127 V Metered Power Distribution Unit offers real-time local reporting of load level in amps via built-in digital meter. It enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Also offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories..Single phase NEMA 5-20P / NEMA L5-20P 15 ft 20 A 100 - 127 V input.120 V 50/60 Hz output.12 NEMA 5-15/20R outlet connector.20 A overload protection.1U horizontal rack mount.Package includes PDUMH20 metered rack mount PDU, L5-20R to 5-20P plug adapter, owner's manual with warranty information.Built-in 2 digit visual meter continuously reports PDU load level in amps.Back panel grounding lug.Rack mount, vertical rack mount, wall mount/under-counter style.Outlets center to center measurement: 30.20 mm.Form factors supported: 1U rack mount, 0U vertical rack mount, wall-mount, and under-counter installation.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Typical applications: Multi-outlet power distribution unit with digital current monitoring is the ideal means of powering multiple loads in 19 inch rack mount, wall-mount, and under-counter applications such as internetworking, PC systems, telecommunicati.Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS compliant.3.6 lbs.1 3/4"(H) x 17 1/2"(W) x 4 1/2"(D).Lifetime limited warranty.TRIPP LITE 5-15/20R 12 Outlet 20 A 100 - 127 V Metered Power Distribution Unit is made of rugged steel casing, and built in circuit breaker to ensure maximum durability.

Tripp Lite PDUMV30HV Single phase metered power distribution unit is perfect to power networking equipment in datacenters, computer rooms and network closets. Comes with mounting brackets and installation hardware for user convenience. Has 30 outlets in two separately breakered load banks with separate 15 A breaker and current metering. Includes 10' cord for easy connectivity..Single phase NEMA L6-30P 10 ft 30 A 208/240 V input.208/240 V 50/60 Hz output.6 IEC-C19, 24 IEC-C13 outlet connector.Outlets are arranged in two separately breakered load banks each with 15 A overload protection.0U vertical rack mount.Package includes PDUMV30HV 63.75 in basic PDU with owner's manual, set of 2 bolt-on plug retention brackets and installation hardware, set of mounting brackets and installation hardware.Toolless installation in button-mount compatible equipment racks.Set of two lighted meters report PDU output current in amps for each output load bank.Bolt-down installation brackets support installation in other racks and additional surfaces.Vertical rack mount, wall mount, raceway, workbench style.Typical applications: Ideal means of powering networking equipment in datacenters, computer rooms and network closets.Form factors supported: 0u vertical installation in equipment racks, plus under-counter and wall mount.Includes 2 built-in 2-character LED meters to display power consumption of items plugged into each separately breakered 15A loading bank indicator.Certifications: Tested to UL60950-1 (USA, Canada), NOM (Mexico).8 lbs.63 3/4"(H) x 2 1/4"(W) x 3 3/4"(D).Lifetime limited warranty.T+AK804ripp Lite 208/240 V Single phase metered power distribution unit has 30 outlets in two separately breakered load banks. Has durable construction and offers superior performance.

Tripp Lite Ultra 12-Outlet compact surge suppressor features diagnostic LEDs which indicate AC present, line fault and protection status. Surge suppressor includes 15' AC power cord and guarded power switch to reduce the risk of accidental shutoff..Input voltage: 120 VAC.Input connection: NEMA5-20P input plug.15' power cord.Dimensions: 1 3/4"(H) x 17 1/2"(W) x 4"(D).Surge energy rating: 3840 J.Output voltage: 120 VAC.Current: 20 A.Frequency: 50/60 Hz.Outlets: 12 x NEMA 5-20R.Form factor: 3U rack mountable.Protection type: Full normal mode (H-N) and common mode (N-G / H-G) line surge suppression.Material: Metal.Noise suppression: 40 - 80 dB EMI / RFI.Status indicators: Line fault, line ok, protection present.Compatibility: Sensitive electronic equipment in 19 inch rackmount, internetworking equipment, PC systems, telecommunications, audio/video, security, sound reinforcement.Load capacity: 2400 W.Certifications and standards: UL1449 (UR status), UL1283, cUL, exceeds IEEE 587 category AandB specifications.Warranty: Lifetime limited.Warranty: Lifetime limited.Tripp Lite Ultra 12-Outlet compact surge suppressor features network grade AC surge suppression with EMI/RFI noise filtering and has an energy rating of 3840 J.

Tripp Lite Metered PDUMH20HV 10-Outlets PDU.Input voltage: 200 VAC, 208 VAC, 230 VAC, 240 VAC.Output voltage: 208 VAC, 230 VAC, 240 VAC.Built-in 2 digit visual meter continuously reports PDU load level in amps.PDU type: Basic.Frequency: 50/60 Hz.Input receptacles: IEC 60320 C20, NEMA L6-20P.Output receptacles: 2 x IEC 60320 C19, 8 x IEC 60320 C13.Form factor: Horizontal rackmount 1U.Dimensions: 1.8"(H) x 17 1/2"(W) x 6 1/2"(D).Overload protection: Outlets are arranged in a single unbreakered load bank.Protection type: Overload protection.Includes: Metered PDUMH20HV 10-outlets PDU, rackmount brackets, cord retention brackets.Certifications: Tested to UL 60950-1 (USA, Canada), class A (Emissions), NOM (Mexico), ), CE (IEC 60950), (RoHS compliant).Weight: 6.8 lbs..Warranty: Lifetime limited.Meets UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950), RoHS, TAA standards or certifications.Weight: 3.1 kg.Comes with 2 years limited warranty.Tripp Lite PDU has a visual current meter which tracks the output current of all outlets and features rackmount brackets.
