APC 2200VA Smart UPS

The APC® Smart-UPS™ SMX2200HV 2200 VA line interactive UPS offers full load backup/run time of 10 min, half load backup/run time of 25 mins and maximum battery recharge time of 3 hrs. It measures 17" x 7" x 19". The sealed lead acid UPS has eight IEC 320 C13 plugs, two IEC 320 C19 plugs, two IEC jumpers plugs, SmartSlot, USB port and serial port for connectivity. The control panel has LED display with on battery, replace battery and overload indicators, multi-function LCD status as well as control console. It withstands an operating temperature range of 0 to 40 deg C. The UPS has alarm for on battery, low battery and configurable delay..Load capacity: 2200 VA, 1980 W.Dimensions: 17"H x 7"W x 19"D.Backup/run time (full load): 10 min, Backup/run time (half load): 25 min, Maximum battery recharge time: 3 hrs.Output voltage: 220 VAC, 208 V, 230 V (nominal).Control panel: LED status display with on line, on battery, replace battery and overload indicators, multi-function LCD status and control console.Form factor: 4U tower/rack mountable.Battery chemistry: Sealed Lead Acid, Replacement battery: APCRBC143, Battery capacity: 702 VAh.Interface: SmartSlot, USB, serial port, Number of expansion slots: 1, Receptacles: Eight IEC 320 C13, two IEC 320 C19, two IEC jumpers.Safety Features (lightning protection).Input connections: IEC-320 C20, Cord length: 6.56'.Color: Black, Battery characteristics: Spill-proof, maintenance-free with suspended electrolyte, leak-proof, Emergency power off.Nominal input voltage: 208 V, 230 V, Output frequency (sync to mains): 50/60 Hz +/- 3 Hz, Input frequency: 50/60 Hz +/- 3 Hz (auto sensing).Waveform type: Sine wave, Surge energy rating: 645 J.Alarm: On battery, low battery, configurable delay.Temperature: 0 - 40 deg C, Storage Temperature: -15 to 45 deg C, Relative humidity: 0 - 95% (operating/storage), Thermal dissipation: 150 BTU/hr.Meets RoHS, REACH, CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950 certifications and standards.Weight: 85 lbs..Comes with 3 years (without battery) and 2 years (with battery) warranty.SCHNEIDER ELECTRIC IT USA™ Rack/tower LCD smart-UPS with power delivering capacity of 2200 VA offers high-performance. Secures electronic equipment from power blackouts/surges.

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Smart-UPS are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently..Experience higher efficiency with lower energy cost.1920 VA load capacity provides sufficient backup during power failures.Prevent critical data loss by staying powered during a blackout with up to 1920 W load capacity.Keep your sensitive devices powered with a backup of up to 5 minute at full load

APC Smart-UPS 2200VA LCD 120V with SmartConnect Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices..2200 VA load capacity - work without any interruption during power outages.Prevent critical data loss by staying powered during a blackout with up to 1980 W load capacity.Keep your sensitive devices powered with a backup of up to 10.10 minute at full load

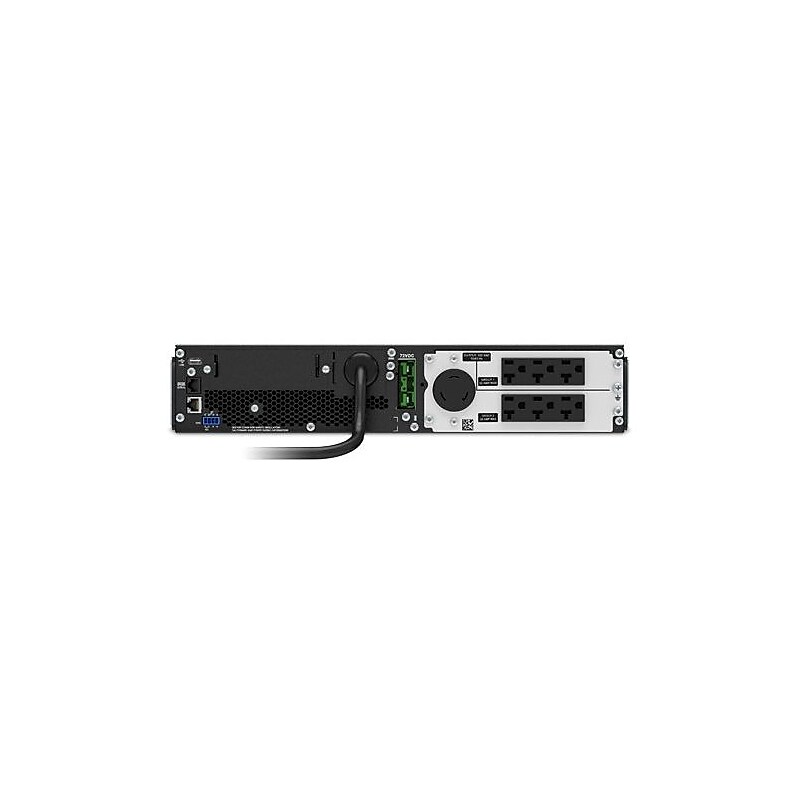

The APC® Smart-UPS™ SRT2200RMXLA 2200 VA 120 V dual conversion online UPS offers maximum battery recharge time of 3 hrs. It measures 3.35" x 17" x 23". The lead acid battery UPS has six NEMA 5-20R plugs, one NEMA L5-20R plug, SmartSlot, USB port, RJ-45 serial port for connectivity. The control panel has multi-function LCD status and control console. It has built-in bypass and audible as well as visible alarms that comes prioritized by severity. This hot-swappable UPS withstands an operating temperature rating of 0 to 40 deg C. It comes with CD with software, documentation CD, installation guide, rack mounting brackets, support rails, rack mounting hardware, USB cable and warranty card..Dual conversion online UPS for power protection.Load capacity: 2200 VA, 1800 W.Dimensions: 3.35"H x 17"W x 23"D.Maximum battery recharge time: 3 hrs..Output voltage: 120 VAC (nominal).Control panel: Multi-function LCD status and control console.Form factor: 2U tower/rack mountable, hot-swappable batteries.Battery chemistry: Sealed Lead Acid, Replacement battery: APCRBC141, Battery capacity: 306 VAh.Interface: SmartSlot, USB, RJ-45 serial, Receptacles: Six NEMA 5-20R, one NEMA L5-20R.Input connections: NEMA 5-20P, Cord length: 6'.Color: Black, Battery characteristics: Maintenance-free with suspended electrolyte, leak-proof, Emergency power off, Expected battery life: 3 -5 years.Input voltage: 120 VAC (nominal), Output frequency (sync to mains): 50/60 Hz +/- 3 Hz, Input frequency: 40-70 Hz (auto sensing).Waveform type: Sine wave, Surge energy rating: 340 J.Built-in bypass, Audible alarm: Audible and visible alarms prioritized by severity.Temperature: 0-40 deg C, Storage Temperature: -20 to 50 deg C, Relative humidity: 0-95% (operating/storage), Protection class: IP 20.Includes smart-UPS, CD with software, documentation CD, installation guide, rack mounting brackets, rack mounting hardware.Meets ENERGY STAR, RoHS, REACH, CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778 certifications and standards.Weight: 55 lbs..Comes with 3 years (without battery) and 2 years (with battery) warranty

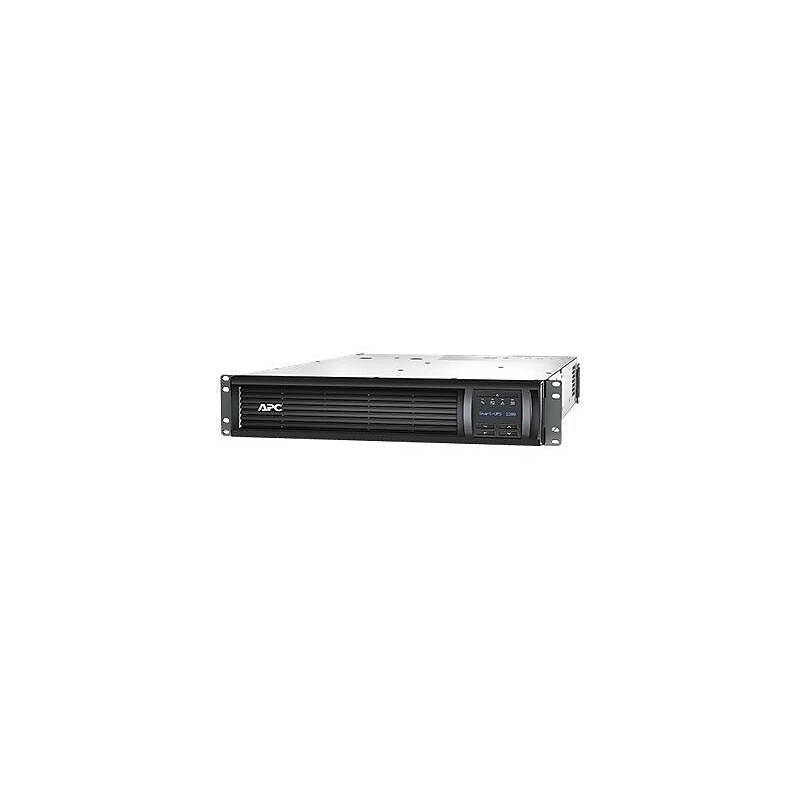

APC Smart-UPS 2200VA RM 2U 2200VA UPS, 8-Outlets, Black (SMT2200RMUS).1920 W UPS for seamless operations in case of blackouts or brownouts.Sealed lead acid battery offers a run time of 16 mins at half load and 5 mins at full load on a recharge time of 3 hrs..Dimensions: 3.39"H x 18.9"W x 26.89"D.Output voltage of 1920 VA to ensure adequate power supply.LED status display with on line, on battery, replace battery, overload indicators, multi-function LCD status and control console aid in seamless operation.Rack mountable design makes it easy to install.Comes with 8 outlets, 1 x USB - 4-pin USB Type B and NEMA 5-20P for seamless connectivity.Power conditioning, automatic restart, automatic self-test and leakproof design provide optimum protection.8' cord allows you to set up your system at a comfortable distance.CSA, FCC Part 15 Class A, UL 1778, ENERGY STAR qualified and RoHS compliant.3-year warranty.The APC SMT2200RMUS 120 V Smart-UPS is an ideal power supply system to guard servers, telecom equipment and other networking hardware.

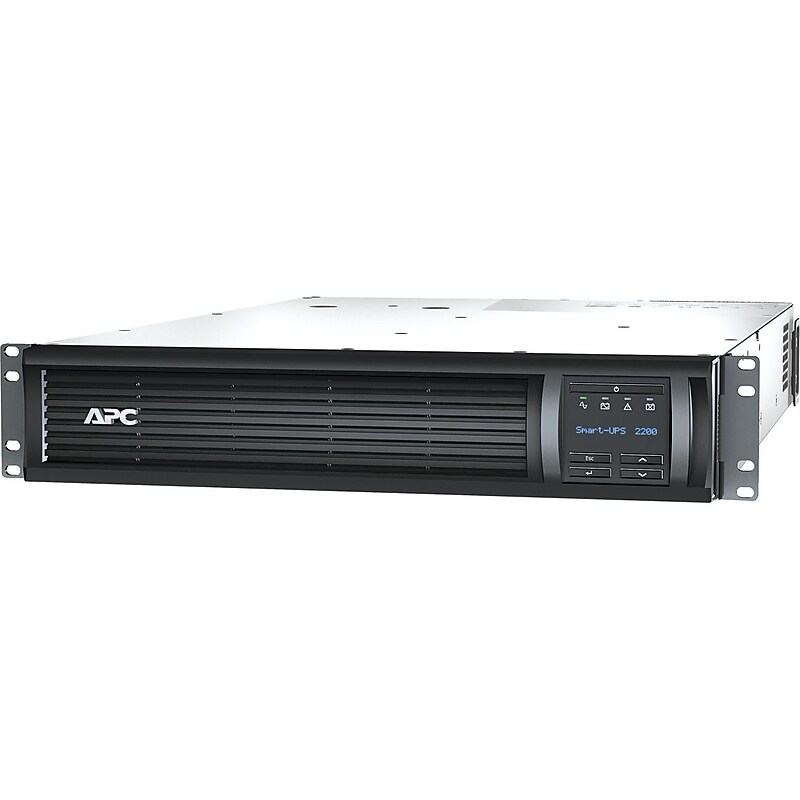

Prevent network downtime and install this uninterruptible power supply device. Whether you need to keep the office servers running or point-of-sale devices ready to go, this UPS protects equipment and data from costly damage caused by electrical outages. Enjoy peace of mind and install the intelligent APC rack/tower LCD, which has an easy-to-read screen for quick configuration and status updates..UPS protects electronic equipment and prevents data loss during a power outage.Surge energy rating: 540 joules.Equipped with eight outlets for seamless connectivity.Provides USB connectivity for maximum flexibility.8' cord allows you to set up your system at a comfortable distance.Recharge time: three hours.Output voltage of 120 VAC to ensure adequate power supply.Lead acid battery ensures efficient performance.Meets or exceeds CSA, TUV, BSMI, NOM, UL 1778, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A, EN 55022 Class A standards.Dimensions: 3.36"H x 17"W x 26.26"D.3-year manufacturer limited warranty.Safeguard your network from power failures with this APC Smart-UPS rack/tower LCD.

APC® Smart UPS with a load capacity of 2kVA/1.kW is connected serially to the systems through the USB cable. UPS provides a continuous power supply without any interference..Input voltage: 208V, 230V nominal.Output voltage: 230 VAC.Power capacity: 1.98 kWatt / 2200 VA.Frequency: 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal output, 50/60 Hz +/- 3 Hz (auto sensing) input.Input voltage range: 140 - 280 VAC mains operation.Efficiency: 98.1% at full load.Filtering: Full time multi pole noise filtering, 0.3% IEEE surge let through, zero clamping response time, cable length: 1.83 meters.Battery type: Maintenance free sealed lead acid battery with suspended electrolyte: leakproof, typical recharge time: 3 hours.Backup/run time: 0.17 hour 1.98 kWatt full load, 0.42 hour 990 Watt half load.Surge energy rating: 645 J, topology: line interactive, waveform type: sine wave.Form factor: 2U tower/rack mountable, switching time: 4 ms.Interfaces/ports: RS-232 serial, USB, modular slots: 1 x smartslot.Plug/connector type: 8 x IEC 320 C13, 1 x IEC 320 C19, 2 x IEC Jumpers, receptacles: IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A.Emergency power off, overload protection: resettable circuit breakers.Environmental conditions: Operating temperature: 0-40 deg C, humidity: 0-95% non condensing, audible noise: 55 dBA at 1 meter, thermal dissipation: 150 BTU/hr..Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm, LED status display with on line, on battery, replace battery and overload indicators, multi function LCD status and control console.Automatically starts up the connected equipment upon the return of utility power.Package contents: CD with software, rack mounting brackets, Smart UPS signaling RS-232 cable, USB cable, user manual.Certifications and standards: C-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC Part 15 Class A, GOST, IEC 60950, IRAM, UL 1778, VDE, green compliance certificate/authority: RoHS, REACH.Warranty: 3 years limited repair or replace, 2 years limited for battery.APC® Smart UPS with a load capacity of 2.0 kVA/1. ?8 KW is used to increase the run time and has a USB cable.

The APC® Smart-UPS SRT2200RMXLA-NC 120 V 340 J 2200 VA rack-mountable network card, features multi-function LCD status and control console design. It supports an audible and visible alarm technologies for high performance. This 6' network card has RJ-45 10/100 Base-T, RJ-45 serial, smart-slot and USB interfaces for easy connectivity. It provides early-warning fault analysis, by-passes unused electrical components, text and mimic diagrams that display modes of operation..rack mountable network card has 340 J surge rating.Receptacles: 6 x NEMA 5-20R, 1 x NEMA L5-20R, NEMA 5-20P.Dimensions: 3.35"H x 17"W x 23"D.Input voltage: 120 to 230 VAC, power: 1800 W, runtime: 3 min (full load), 10 min (half load).Meets CSA C22.2 No.107.3-05, ENERGY STAR (USA), FCC Part 15 Class A, OSHPD, UL 1778, RoHS, REACH standards.Technology: Audible and visible alarm.Cable length: 6'.Design: Multi-function LCD status and control console.Interface: RJ-45 10/100 Base-T, RJ-45 serial, smart-slot, USB.Form factor: Tower/rack mountable, topology: Double conversion online.Output: 120 V, 50/60 Hz, power: 1.8 KW, < 2% (voltage distortion), built-in bypass.Battery: Sealed lead acid maintenance free, hot swappable, recharge time: 3 hrs., battery life: 3 to 5 years, Vah capacity: 306.Online thermal dissipation: 535.0 BTU/hour, audible noise: 55 dBA.Features provides early-warning fault analysis, by-passes unused electrical components, text and mimic diagrams that display modes of operation.Protects the initial investment in the UPS when migrating from tower to rack mount environment.Includes software CD, documentation CD, installation guide, network management card, rack mounting brackets, hardware, support rails, USB cable.Temperature: 0 to 40 deg C (Operating), to 20 to -50 deg C (Storage), 0 to 95% (Humidity).Weight: 55 lbs..Comes with 3 year repair or replace warranty

APC offers Uninterruptible Power Supplies (UPSs) that meet the requirements of the Trade Agreement Act (TAA) and are assembled in the U.S.A. The TAA Compliant Smart-UPS are intelligent and efficient network power protection products ideal for supporting servers, point-of-sale devices, routers, switches, hubs and other network devices..Experience higher efficiency with lower energy cost.2200 VA load capacity - work without any interruption during power outages.1980 W load capacity - backup power for your valuable electronics

APC® Smart-UPS 2200VA UPS has 2 x NEMA 5-20R, 6 x NEMA 5-15R receptacles for better flow of current. UPS is perfect for small and medium businesses to protect small switches, networking devices and point-of-sale equipment..Input voltage: 110 VAC.Output voltage: 120 V.Receptacles: 2 x NEMA 5-20R, 6 x NEMA 5-15R.Load capacity: 2.2 kVA/1980 W.Frequency: 50/60 Hz +/- 3 Hz input.Emergency power off.Interface/ports: Serial port, USB.Batteries: Maintenance-free sealed lead acid battery with suspended electrolyte - leakproof.Backup/run time: 5.1 minute full load,15.2 minute half load.Battery recharge time: 3 hour.Form factor: Tower, rack mount, rack/tower convertible.Dimensions: 3.39"(H) x 18.9"(W) x 26.89"(D).Surge energy rating: 530 J.Includes CD with software, documentation CD, rack mounting brackets, rack mounting support rails, smart UPS signaling RS-232 cable, USB cable.Certification and Standards: RoHS, PEP, EOLI, REACH, CSA, FCC Part 15 Class A, UL 1778.Weight: 93.08 lbs..Warranty: 3 years limited.APC® Smart-UPS 2200VA UPS has a load capacity of 1980 W and uses maintenance-free, sealed, lead acid battery.
