Digital Display Meters

This pocket-sized digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance and duty cycle. Designed to fit into the palm of your hand this compact DMM also includes diode test and continuity check functions..4.3"H x 2.3"W x 0.43"D.AC voltage range of 4, 40, 400, 600V.DC voltage range of 6400mV, 4, 40, 400, 600V.AC voltage accuracy of 4,40,400V + or -(1.2% rdg. + 3 dgt.) 600V + or -(1.5% rdg. + 5 dgt.).DC voltage accuracy of 400mV + or -(0.8% rdg. + 3 dgt.) 4,40,400V + or -(0.8% rdg. + 1 dgt.) 600V + or -(1% rdg. + 3 dgt.).AC voltage resolution of 1, 10, 100mV, 1V.DC voltage resolution of 0.1, 1, 10, 100mV, 1V.AC/DC current range of 400, 4000 A, 40, 400mA.AC current accuracy of 400/4000 A + or -(1.5% rdg. + 5 dgt.) 40/400mA + or -(2% rdg. + 5 dgt.).DC current accuracy of 400/4000 A + or -(1.0% rdg. + 3 dgt.) 40/400mA + or -(1.2% rdg. + 5 dgt.).AC/DC current resolution of 0.1, 1, 10, 100 A.Resistance range of 400ohm, 4, 40, 400kohm, 4, 40Mohm.Includes test leads, a battery and a carrying case.Auto ranging digital multimeter with 4,000 count LCD display

This high voltage insulation tester is capable or testing voltages up to 5000V and measures insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity..Test Voltages of 500V, 1000V, 2500V, and 5000V.Measure Insulation Resistance to 60GΩ.Large backlit LCD display with analog bargraph.Timer function for insulation resistance measurements (1-15min).AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions.Polarization index measurement (PI).Dielectric absorption ratio measurements (DAR).Max/Min, Peak, Relative value and Data Hold functions.Cat. IV 600V safety rating.Low battery indicator and auto shut off.7.8"H x 5.8"W x 3.4"D.Blue.Test voltages of 500V, 1000V, 2500V, 5000V DC.Accuracy of + or -5% rdg. +3 dgt..Resistance measurement range of 0.1 to 6000 ohm.Accuracy of + or -1.5% rdg. +10 dgt..Buzzer sounds at 50ohm for continuity test.Less than or equal to 200mA short circuit current.Includes test leads, batteries and a carrying case.High test voltages up to 5kV with insulation resistance to 60GΩ

This auto ranging multimeter is IP67 rated, has a 40,000 count display for precise readings and is capable of measuring AC/DC voltage and current, frequency, resistance, capacitance and temperature. This DMM also includes diode and continuity tests and features 4-20 mA loop measurement and a digital analog bargraph..True RMS AC/DC voltage and current measurements.Measures frequency, resistance, capacitance and temperature.Diode check and continuity functions.Backlit LCD readout with analog bar graph.4-20 mA process loop measurements with % readout.Data hold, Max/Min and Peak capture mode.IP67 dust and waterproof.Cat. IV 600V, Cat. III 1000V safety rating.7.4"H x 3.2"W x 2.0"D.AC range of 400mV, 4, 40, 400, 1000V.DC range of 400mV, 4, 40, 400, 1000V.AC accuracy of + or -(1.0% rdg. + 5 dgt.) at 400mV and + or -(1.0% rdg. + 3 dgt.) for other ranges.DC accuracy of + or -(0.1% rdg. + 5 dgt.) at 1000V and + or -(0.06% rdg. + 2 dgt.) for other ranges.AC resolution of 0.1mV, 0.001, 0.01, 1V.DC resolution of 0.01mV, 0.0001, 0.01, 0.1V.AC/DC current range of 400, 4000 A, 40, 400mA, 10A.AC current accuracy of + or -(1.5% rdg. + 3 dgt.).DC current accuracy of + or -(1.0% rdg. + 3 dgt.).Temperature range of -58 to 1832degree f (-50 to 1000degree C).True RMS multimeter with built-in non-contact voltage detector and 40,000 count backlit LCD display

The REED ST-5500 has many features such as 250V, 500V or 1000V test voltage combinations, a large, easy-to-read dual display with backlight and a durable double molded plastic housing making it stand up to the test of time..Insulation tester for test voltages of 250, 500 or 1000V.8" (h) x 3.5" (w) x 2" (d).Blue.1mA test current for Mohm range at rated voltage.200mA test current for continuity range.Continuity test with beeper.Large, easy-to-read dual display with backlight.Data hold switch.Test button may be locked on for hands-free operation.Double molded plastic housing.Meets IEC61010-1 Cat. III 1000V.Insulation Resistance Range of 200Mohm, 2000Mohm.Insulation Resistance Accuracy of + or -3.5% rdg. + or -5 dgt.Resistance Range of 200ohm, 2000ohm.Resistance Accuracy of + or -1% rdg. + or -2 dgt.Voltage Range of 750VAC / 1000VDC.Voltage Accuracy of AC: + or -1.2% rdg. + or -10 dgt and DC: + or -0.8% rdg. + or -3 dgt.Greater than or equal to 200mA Test Current.6 x 1.5V AA batteries for power supply.Includes test leads, battery and plastic carrying case

This compact autoranging clamp meter is capable of measuring AC current, AC/DC voltage, resistance, frequency, capacitance, duty cycle and temperature. Featuring double molded plastic housing, the R5020 includes diode check and continuity functions and a non-contact voltage detector built into the clamp tip..Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature.4000-count LCD display with low battery and over range indicators.Built-in non-contact voltage detector with LED indicator.Display hold and relative mode.Diode test and continuity check functions.Durable double molded plastic housing.Cat. III 600V safety rating.7.9"H x 2.6"W x 1.5"D.Blue.AC current range of 40, 400A.AC accuracy of + or -(2.5% rdg. + 8 dgt.).AC resolution of 0.01, 0.1A.AC voltage range of 4, 40, 400, 600V.DC voltage range of 400mV, 4, 40, 400, 600V.AC voltage accuracy of + or -(1.8% rdg. + 8 dgt.).DC voltage accuracy of + or -(1.5% rdg. + 2 dgt.).AC voltage resolution of 0.001, 0.01, 0.1, 1V.DC voltage resolution of 0.1mV, 0.001, 0.01, 0.1, 1V.Resistance range of 400ohm, 4, 40, 400kohm, 4, 40Mohm.Includes test leads, a thermocouple wire probe, a thermocouple adapter, batteries and a soft carrying case.Compact AC clamp meter with built-in non-contact voltage detector and contact thermometer

This compact light meter by Reed Instruments can be used either stand-alone or with the Reed Smart Series app (available for download on Android and iOS). When connected to the app, the light meter can be set up to log measurements over a given period..Real-time data logging light meter measures illuminance levels up to 100000 lux.Kit includes: light meter, four AAA batteries.Dimensions: 6.9"H x 1.5"W x 1"D.Weight: 3.4 oz..Can be used either stand-alone or with the Reed Smart Series app (available for download on Android and iOS).Provides wireless Bluetooth 5.0 connectivity with a range of up to 246'.Easy to operate, designed for one-hand operation.Integrated 1.3" EBTN LCD display provides flexibility for use without a mobile device.Magnetic backing allows the instrument to be mounted to metallic surfaces.Tripod mount makes possible long-term monitoring.Features a low battery indicator and auto shutoff.Batteries provide a life of up to 50 hours.Measuring range: 0-100000 lux (0-9290 FC).User-selectable sampling rate from 1 to 120 seconds.Easy setup with automatic app integration.Connect, measure, and log data from up to six instruments simultaneously.Export data via Excel or PDF, and create custom reports that can be emailed from a mobile device.Meets or exceeds the CE, UKCA, FCC, and IC ID standards.1-year manufacturer limited warranty.Safety Data Sheet

This auto ranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the R5008 includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements..Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature.Diode check and continuity functions.Relative and data hold functions.Double molded plastic housing.Cat. III 600V safety rating.5.9"H x 2.8"W x 1.9"D.AC voltage range of 400mV, 4, 40, 400, 600V.DC voltage range of 400mV, 4, 40, 400, 600V.AC voltage resolution of 0.1mV, 1, 10, 100V.DC voltage resolution of 0.1mV, 1, 10, 100V.AC/DC current range of 400, 4000 A, 40, 400mA, 10A.AC/DC current resolution of 0.1, 1 A, 10, 100mA, 1A.Resistance range of 400ohm, 4, 40, 400kohm, 4, 40Mohm.Resistance resolution of 0.01ohm, 1, 10, 100kohm, 1, 10Mohm.Includes a temperature input adapter, type K thermocouple wire probe, test leads, a battery and a carrying case.Compact auto ranging digital multimeter with 11 functions

This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software..High accuracy of 1.4 dB meets Type 2 standards.Triple range measurement (60dB dynamic range).A & C frequency weighting.Fast & Slow time weighting.Record up to 64,000 datapoints and keep track with internal time and date stamp.User selectable sampling rate from 1 to 60 seconds.Large, easy-to-read backlit LCD display.Digital analog bargraph.Min/Max hold and auto shut off.Tripod mount for long-term monitoring.Low battery indicator.10.4" (h) x 2.5" (w) x 1.2" (d).Blue.Full measuring range of 30 to130 dB.Dynamic range of 60 dB (in each range).Resolution of 0.1 dB for digital and 2dB for analog.Response time of 500 ms for digital and 500 ms for analog.frequency range of 20 Hz to 8 kHz.1/2 inch electret condenser microphone.Includes a windshield ball, a USB cable, a PC software, a hard carrying case and batteries.Quick responding triple range sound level meter with large backlit display, built-in memory to data log up to 64,000 points and the ability to graph in real time with included software

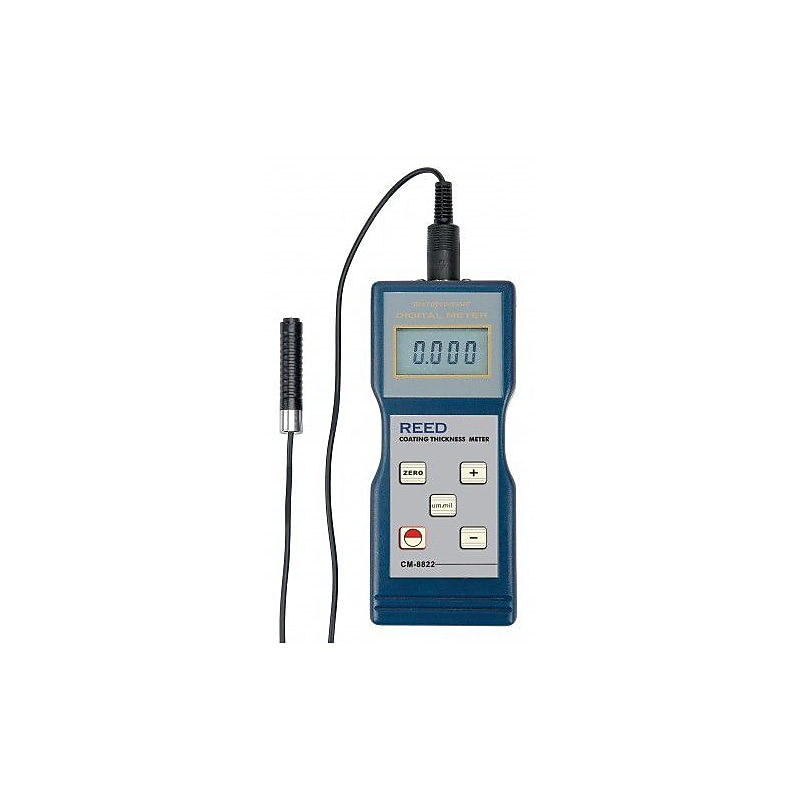

This coating thickness gauge includes ferrous and non-ferrous probes and features a zero button for quick adjustment in the field. The CM-8822 has a large easy-to-read LCD display and basic accuracy of 3%..Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates.User selectable /mils.Probe allows for readings in tight spaces.Large, easy-to-read LCD display.Automatic probe recognition.Zero adjustment button.Automatic calibration.Low battery indicator.6.3"H x 2.7"W x 1.25"D.F probe measures the thickness of non-magnetic coatings on magnetic metal substrates.N probe measures the thickness of non-magnetic coatings on non-magnetic metal substrates.Automatic probe recognition.Automatic calibration.Large, easy-to-read LCD provides exact readings without guessing or errors.m/mil conversion switch.Measuring range of 0 to 1000 m, 0 to 40 mil.Resolution of 0.1 m.Accuracy of + or -1 to 3% or 2 m, whichever is greater.1 second sampling time.Powered by 4 1.5V AA batteries.Includes battery and hard carrying case.Quick responding, capable of measuring ferrous and non-ferrous substrates

This versatile Reed Instruments compact-sized multimeter measures AC/DC voltage and current, resistance, capacitance, frequency, diode, and continuity. It also features a built-in non-contact voltage detector to quickly detect live voltage on electrical circuits found in residential, commercial, and industrial buildings..Multimeter to measure AC/DC voltage and current, resistance, capacitance, frequency, diode, and continuity.Built-in non-contact voltage detector and double-molded plastic housing.4000-count backlit LCD display.Low battery indicator and auto shutoff.CAT III 600V safety rating

Simultaneously measure 2 AC voltage inputs or 2 AC current inputs or 1 AC voltage and 1 AC current input. The R5003 can operate remotely with batteries or be plugged in with the included AC adapter. Stored measurements can be downloaded via USB interface and either analyzed with the included software or exported to Microsoft Excel..Data log up to 256,000 AC voltage and current measurements.Dual input measures 2 voltage/current measurement or 1 of each.LCD simultaneously displays time/date, current readings and Max/Min readings.User adjustable sample rate from 1 sec to 24 hrs..High and low alarms.Download measurements via USB interface and analyze results with included software.Magnetic bac allows instrument and sensors to be secured firmly in a variety of locations.Low battery indicator and auto shut off.4.5"H x 2.5"W x 1.3"D.Black.AC current resolution of 0.1A.AC current accuracy of + or -(2% rdg. + or -1A).AC voltage resolution of 0.1V.AC voltage accuracy of + or -(2% rdg. + or -1V).Weighs 8.7 lbs. (248gram).Powered by 4 AAA batteries and a CR 3V memory button battery (CR2032).Includes an AC current clamp sensor and voltage sensor, an AC adapter, a USB cable and software and a battery.Stores up to 256,000 measurements with user programmable sampling rates

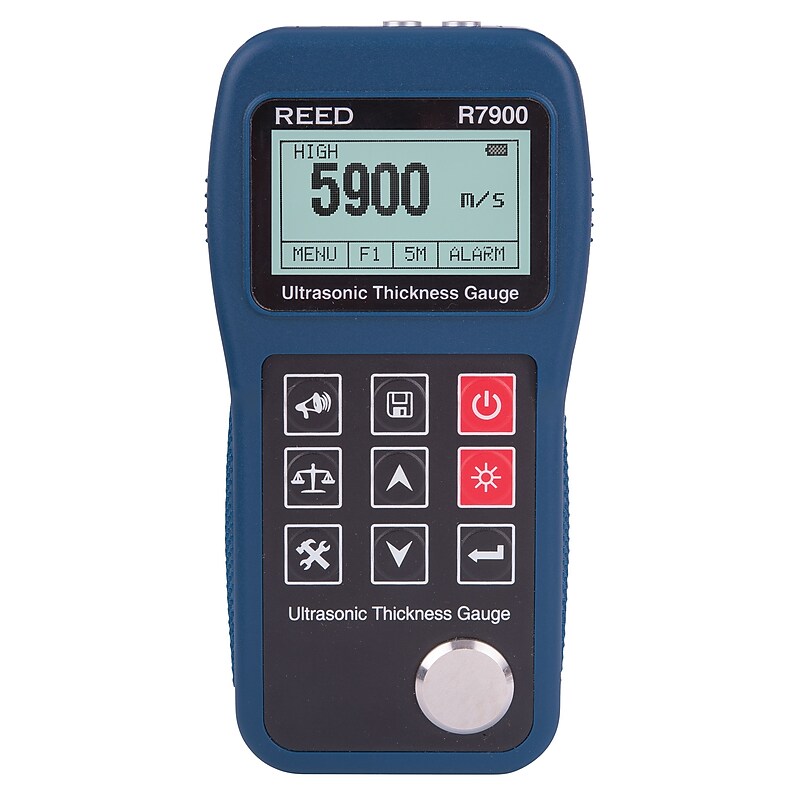

This ultrasonic thickness gauge has a large backlit LCD display and is capable of measuring the thickness of a wide variety of ultrasonic conductive materials. The R7900 features user adjustable high/low alarms and internal memory capable of storing up to 500 measurements..Measures a wide range of material including; metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials.Large, easy-to-read backlit LCD display.User selectable unit of measure (in/mm).Internal memory stores up to 500 measurements.Displays sound velocity at the touch of a button.Zero adjustment button.User adjustable High/Low alarms.Built-in two-point calibration function.Auto sleep, shut off and low battery indicator.5.0" (h) x 3" (w) x 1.2" (d).Blue.Measurement range of 0.65 to 400.0 millimeters (0.03 to 15.7 inches).Sound velocity range of 0.039 to 0.394 in/ s (1000 to 9999 m/s).Accuracy of + or -0.04mm at less than 10mm, + or -(0.1% thickness + 0.04mm) at less than 100mm and + or -(0.3% at more than 100mm.4 measurements per second for a single point measurement.Can store up to 5 files, up to 100 values for each file, for a total of 500 logs.Powered by 2 AA batteries.Includes a transducer, a couplant, batteries and a carrying case.Internal memory capable or storing up to 500 readings, user adjustable high/low alarms

This wood moisture detector uses the electrical resistance principle to measure wood moisture of approximately 170 different species of wood. The R6015 features an automatic temperature compensation (ATC) probe for increased accuracy and includes a remote hand-press for flexibility in the field..Measures wood moisture with integrated pins or with remote hand-press probe.Improved accuracy with use of included automatic temperature compensation probe.Memory contains 8 wood groups with calibrations for approx. 170 species of wood.Built-in 2-point calibration check.Low battery indicator and auto shut-off.7" (h) x 1.9" (w) x 2" (d).Black and Blue.Measuring range of 6 to 99.9% of moisture content.Accuracy of + or -1% of moisture content.Temperature compensation of -31 to 176degree f (-35 to 80degree C).Powered by 2 AAA batteries.Weighs 6.1oz.Includes a remote hand-press moisture electrode, a temperature probe, a protective cap, replacement pins, batteries and a soft carrying case.Designed specifically to measure moisture in approximately 170 species of wood

This compact level meter by Reed Instruments can be used either stand-alone or with the Reed Smart Series app (available for download on Android and iOS). When connected to the app, the level meter can be set up to log measurements over a given period..Real-time data logging light meter measures sound levels with a high accuracy of 1.5dB.Kit includes: light meter, four AAA batteries.Dimensions: 7.1"H x 1.5"W x 1"D.Weight: 3.5 oz..Can be used either stand-alone or with the Reed Smart Series app (available for download on Android and iOS).Provides wireless Bluetooth 5.0 connectivity with a range of up to 246'.Easy to operate, designed for one-hand operation.Integrated 1.3" EBTN LCD display provides flexibility for use without a mobile device.Magnetic backing allows the instrument to be mounted to metallic surfaces.Tripod mount makes possible long-term monitoring.Features a low battery indicator and auto shutoff.Batteries provide a life of up to 50 hours.Measuring range: 30-130dB.Frequency range: 31.5Hz to 8kHz.User-selectable sampling rate from 1 to 120 seconds.Provides AC frequency weighting, fast and slow time weighting.Connect, measure, and log data from up to six instruments simultaneously.Meets or exceeds the CE, UKCA, FCC, and IC ID standards.1-year manufacturer limited warranty.Safety Data Sheet

Replacement probe for REED Instruments TM-8811 Thickness Gauge..Replacement Probe for TM-8811.3"H x 2.5"W x 1"D.Black

This LED Light Meter is capable of measuring popular light sources including white, red, green, yellow and blue LEDs up to 199,900 Lux (19,990 Fc). The R8140 includes an auto-ranging feature to optimize resolution and keeps track of minimum and maximum readings. This instrument is also capable of measuring standard incandescent light sources..Measures ambient light levels of white, red, yellow, green and blue LED light and visible light in Foot-candles or Lux.Large, backlit LCD display.Detachable and rotatable light sensor.Min/Max and data hold functions.Cosine and color corrected measurements.User adjustable parameter for specialized light sources.Low battery indicator and auto shut off.Light range of 0 to 199,900 LUX (0 to 19,990 ft-cd).Accuracy of Incandescent Light Source is ±(3% rdg.+ 5 dgt) (Otheer Visible Light Source: ±8% rdg..Resolution of 0.1 Lux (0.01 ft-cd).Response Time of 500mS.Silicon photodiode sensor with color correction filter and cosine correction.Light Types: White LED, Yellow LED, Green LED, Red LED, Blue LED, Warm White Fluorescent, Cold White Fluorescent Lamp, Incandescent.Automatic and Manual Autoranging.6-Digit LCD Display.Min/Max and Data Hold function.Overrange Indicator.Auto Shut-off after 30 minutes.Powered by 2x AA Batteries.6.7''H x 2.5''W x 1.5"D.Weighs 7.4 oz (210g).Includes the Detachable Sensor, Sensor Cover, Hard Carrying Case and 2x AA Batteries.Auto-ranging LED light meter with detachable and rotatable sensor that allows for one-handed operation.
