Non-Contact Voltage Detectors

This pocket-sized digital multimeter measures AC/DC voltage and current, resistance, frequency, capacitance and duty cycle. Designed to fit into the palm of your hand this compact DMM also includes diode test and continuity check functions..4.3"H x 2.3"W x 0.43"D.AC voltage range of 4, 40, 400, 600V.DC voltage range of 6400mV, 4, 40, 400, 600V.AC voltage accuracy of 4,40,400V + or -(1.2% rdg. + 3 dgt.) 600V + or -(1.5% rdg. + 5 dgt.).DC voltage accuracy of 400mV + or -(0.8% rdg. + 3 dgt.) 4,40,400V + or -(0.8% rdg. + 1 dgt.) 600V + or -(1% rdg. + 3 dgt.).AC voltage resolution of 1, 10, 100mV, 1V.DC voltage resolution of 0.1, 1, 10, 100mV, 1V.AC/DC current range of 400, 4000 A, 40, 400mA.AC current accuracy of 400/4000 A + or -(1.5% rdg. + 5 dgt.) 40/400mA + or -(2% rdg. + 5 dgt.).DC current accuracy of 400/4000 A + or -(1.0% rdg. + 3 dgt.) 40/400mA + or -(1.2% rdg. + 5 dgt.).AC/DC current resolution of 0.1, 1, 10, 100 A.Resistance range of 400ohm, 4, 40, 400kohm, 4, 40Mohm.Includes test leads, a battery and a carrying case.Auto ranging digital multimeter with 4,000 count LCD display

Reed Instruments outlet tester quickly identifies faulty wiring. Plug the instrument into the receptacle under test and match the light pattern to the indicator chart to determine the fault. The R5210 features a built-in GFCI test to quickly verify GFCI outlets are functioning properly..Receptacle tester with a built-in GFCI trip test to quickly verify GFCI outlets are functioning properly.Dimensions: 3"H x 2"W x 1"D.Meets or exceeds CE and UL standards.Compact design.Detects common three-wire receptacle issues.LED indicators identify five wiring faults.Status indicator chart.Voltage range: 110-125VAC.Max current: 15A.1-year manufacturer limited warranty

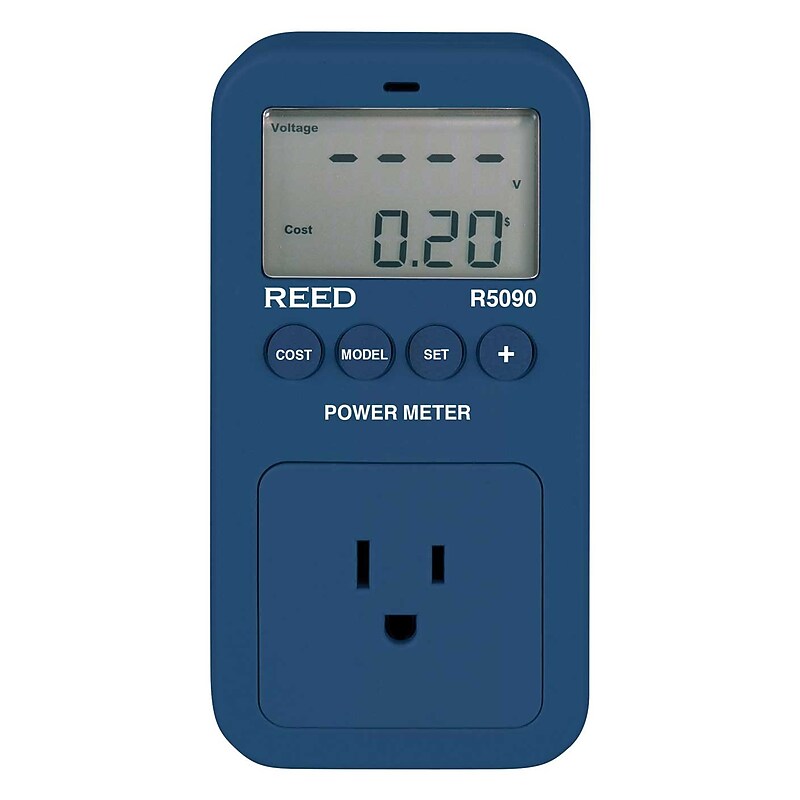

The R5090 is an easy-to-use power meter that accurately measures power consumption of household appliances. Simply set the local utility rate in Kilowatt-hours (KWH) and connect an appliance to start tracking cost. The R5090 can also be used to verify power quality by monitoring voltage, frequency and power factor..Calculates operating costs of household appliances.Displays 8 important units of measure (Voltage, Current, Watts, Frequency, Power Factor, Energy used (kWh), Total Cost and Elapsed Time).Easy-to-read, dual LCD display.Built-in battery backup.Conforms to UL and CSA standards.Calculate operating costs of household appliances.

This auto ranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the R5008 includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements..Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature.Diode check and continuity functions.Relative and data hold functions.Double molded plastic housing.Cat. III 600V safety rating.5.9"H x 2.8"W x 1.9"D.AC voltage range of 400mV, 4, 40, 400, 600V.DC voltage range of 400mV, 4, 40, 400, 600V.AC voltage resolution of 0.1mV, 1, 10, 100V.DC voltage resolution of 0.1mV, 1, 10, 100V.AC/DC current range of 400, 4000 A, 40, 400mA, 10A.AC/DC current resolution of 0.1, 1 A, 10, 100mA, 1A.Resistance range of 400ohm, 4, 40, 400kohm, 4, 40Mohm.Resistance resolution of 0.01ohm, 1, 10, 100kohm, 1, 10Mohm.Includes a temperature input adapter, type K thermocouple wire probe, test leads, a battery and a carrying case.Compact auto ranging digital multimeter with 11 functions

This kit comes equipped with a rugged carrying case and the tools you need to conveniently calibrate your sound level meter in the field. The R8050-KIT includes the R8050 Sound Level Meter, the R8090 Sound Level Calibrator (SC-05), the R8888 Hard Carrying Case with Laser Etched Custom Foam Interior (specifically designed for the included instruments), as well as a wind shield ball and batteries..High accuracy of ±1.4 dB meets Type 2 standards.Dual range measurement (High and Low).A & C frequency weighting.Fast & Slow time weighting.Easy-to-read backlit LCD display.Data hold and Max hold functions.Tripod mount for long-term monitoring.Low battery indicator and auto shut off

Find studs, metal and detect the presence of AC voltage with this 3-in-1 multi-scanner. The R9090 features an LCD display with bargraph allowing for quick and accurate detection..3-in-1 stud, metal and AC voltage detector.Ergonomically designed for comfort and grip.Bargraph allows for quick and accurate detection.Easy operation.Auto power off.Includes battery

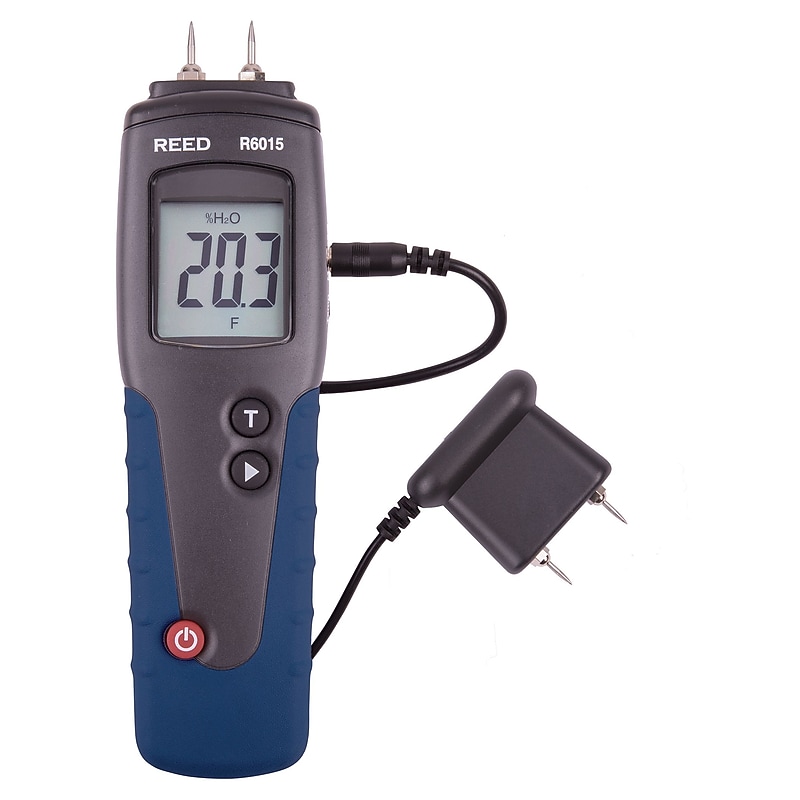

This wood moisture detector uses the electrical resistance principle to measure wood moisture of approximately 170 different species of wood. The R6015 features an automatic temperature compensation (ATC) probe for increased accuracy and includes a remote hand-press for flexibility in the field..Measures wood moisture with integrated pins or with remote hand-press probe.Improved accuracy with use of included automatic temperature compensation probe.Memory contains 8 wood groups with calibrations for approx. 170 species of wood.Built-in 2-point calibration check.Low battery indicator and auto shut-off.7" (h) x 1.9" (w) x 2" (d).Black and Blue.Measuring range of 6 to 99.9% of moisture content.Accuracy of + or -1% of moisture content.Temperature compensation of -31 to 176degree f (-35 to 80degree C).Powered by 2 AAA batteries.Weighs 6.1oz.Includes a remote hand-press moisture electrode, a temperature probe, a protective cap, replacement pins, batteries and a soft carrying case.Designed specifically to measure moisture in approximately 170 species of wood

This high voltage insulation tester is capable or testing voltages up to 5000V and measures insulation resistance up to 60GΩ. The R5002 performs a spot insulation test by applying a regulated and stabilized voltage to measure the amount of flowing current and then calculates resistance in order to evaluate insulation integrity..Test Voltages of 500V, 1000V, 2500V, and 5000V.Measure Insulation Resistance to 60GΩ.Large backlit LCD display with analog bargraph.Timer function for insulation resistance measurements (1-15min).AC/DC Voltage from 0 to 600V with Max/Min, peak and relative functions.Polarization index measurement (PI).Dielectric absorption ratio measurements (DAR).Max/Min, Peak, Relative value and Data Hold functions.Cat. IV 600V safety rating.Low battery indicator and auto shut off.7.8"H x 5.8"W x 3.4"D.Blue.Test voltages of 500V, 1000V, 2500V, 5000V DC.Accuracy of + or -5% rdg. +3 dgt..Resistance measurement range of 0.1 to 6000 ohm.Accuracy of + or -1.5% rdg. +10 dgt..Buzzer sounds at 50ohm for continuity test.Less than or equal to 200mA short circuit current.Includes test leads, batteries and a carrying case.High test voltages up to 5kV with insulation resistance to 60GΩ

This continuity tester is capable of checking circuits for continuity and identifying cables and wires up to 10,000 feet (3,000 meters) in length. Bright visual (bi-color LEDs) and loud audible (beeper) indicators allow wire ends to be tested in noisy environments. The R5300 is used by professional electricians, alarm/cable installers and in home audio installations..Local and remote continuity tester.Lightweight design, connect alligator clips and the instrument suspends from wire/cable.Visual (flashing bi-color LEDs) and audible (pulsating beeper) indicators.Probe flashes green or red to indicate polarity.Remote probe allows for one person operation.Capable of sending signal on cable/wire runs up to 10,000 ft (3000m).Includes battery.Lightweight and compact size allows for easy one person operation.

This infrared thermometer features a 12:1 distance to spot ratio and has been drop tested up to 6.5 feet. The R2310 has the ability to track maximum, minimum, average and differential readings and the ability to set high/low alarms and monitor continuously..Built-in laser pointer identifies target area.User selectable degrees Fahrenheit and Celsius.12:1 distance to spot size ratio.Digitally adjustable emissivity.Max, Min, Average and Differential readings.Backlit display.High and low alarms.Dustproof and drop tested.Trigger lock for continuous monitoring.Low battery indication and auto shut off.Temperature range of -31 to 1202 degrees Fahrenheit (-35 to 650 degrees Celsius).Accuracy of ≥32°F (0°C):±3.6°F (1.8°C) or ±1.8% rdg.,whichever is greater and <32°F (0°C:±3.6°F+0.1°F (1.8°C+0.1°C)/rdg..Resolution of 0.1°F (0.1°C).Spectral response of 8-14µm.Emissivity of 0.1 to 1.0 (Adjustable).Response time 250mS.Tripod Mountable.Maximum Operating Altitude of 6561' (2000m).Maximum Storage Altitude of 39370' (12000m).Powered by 1x 9V Battery.7.4''H x 4.7''W x 2.2"D.Weighs 10.3 oz. (292g).Includes Carrying Case and Battery.Rugged IP65 rated double-molded housing. Automatic emissivity adjustment allows for accurate application measurements.

The R5500 instrument features a Circuit Breaker finder, a Circuit Tester and a GfCI Receptacle Tester. Quickly and easily identify the correct circuit breaker protecting a specific electrical circuit without service interruption..Simply plug the transmitter into a receptacle and scan breaker box to identify the circuit.Detects 5 3-wire receptacle wiring faults.Built-in GFCI receptacle check function.Adjustable sensitivity wheel quickly identifies breaker.Audible (buzzer) and visual (LED) indicators assist in identification.4" (h) x 2.2" (w) x 1.2" (d).Blue.Weighs 3.88oz.frequency range of 47 to 63Hz.Receiver is powered by a 9V battery (included).3-in-1 tester locates breakers, tests receptacles and GFCI circuits

This temperature and humidity meter simultaneously displays indoor/outdoor temperature, humidity, min/max readings and time. The R6000 features a 6’ (72”) cable with mounted sensor for outdoor temperature measurement and humidity status icons to quickly indicate humidity conditions..Measures indoor/outdoor temperature and humidity.User selectable unit of measure °F / °C.Internal memory stores min/max temperature and humidity readings.Waterproof sensor for outdoor temperature measurement with 6’ (72”) cable.Built-in alarm clock and time display.Desktop or wall mount.Temperature Range (IN): -10 to 50℃ (14 to 122 °F).Temperature Range (OUT): -40 to 50℃ (-40 to 122 °F).Humidity Range: 20 to 95% RH.Includes external temperature probe and battery.Measures indoor/outdoor temperature and humidity, Internal memory stores maximum and minimum temperature and humidity readings.

This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed MPM (meters per minute) with included contact adapters. The R7100 features a built-in laser pointer to assist with identifying the target area..Dual function unit with both contact and non-contact capabilities.Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements MPM (meters per min) with included contact adapters.Built-in laser pointer identifies target area.Internal memory recalls maximum, minimum values as well as last value stored.Large LCD display and low battery indicator.8" (h) x 2.75" (w) x 1.5" (d).Black.Photo and contact resolution of 0.1 RPM at less than 999.9 and 1 RPM at more than 1000.Surface resolution of 0.01 m/min at less than 99.99 m/min and 0.1 m/min at more than 100 m/min.Basic accuracy of + or -(0.05% + 1 dgt.).Target distance of 1.6' (500mm) for photo measurements.<1 sec response time.0.8 s sampling time when over 60RPM.Auto shut-off.Low Battery Indicator.Powered by 4 AA batteries.Includes reflective tape, large and small cone tip adapters, funnel adapter, wheel adapter, batteries, mounting screws and a hard carrying case.Dual function tachometer features the ability to measure RPM with non-contact buit-in laser and contact (MPM) measurements quickly and accurately.

This rebound hardness tester features a universal D impact device and is capable of displaying measurements in 7 hardness scales. The R9030 features a rechargeable battery, internal memory to store up to 350 measurements and software to further analyze saved data..Measures a wide range of materials including; cast steel, alloy steel, stainless steel, aluminum, bronze, copper and cast irons..Measures 7 types of hardness scales; Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS).Compact pen style design.Bright OLED display.Real-time clock and internal memory stores up to 350 measurements.USB connectivity and software allows for further measurement analysis.Rechargeable lithium battery.Low battery indicator.5.75" (h) x 1.2" (w) x 1" (d).Black and Blue.Weighs 3.9oz.Hardness Scale in HL, HRC, HRB, HRA, HV, HB, HS.HLD range of 170 to 960.HRA range of 59 to 85.HRB range of 13 to 100.HRC range of 20 to 68.HB range of 19 to 651.HV range of 80 to 967.HS range of 30 to 100.Displays measurements in Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS) hardness values

This LED Light Meter is capable of measuring popular light sources including white, red, green, yellow and blue LEDs up to 199,900 Lux (19,990 Fc). The R8140 includes an auto-ranging feature to optimize resolution and keeps track of minimum and maximum readings. This instrument is also capable of measuring standard incandescent light sources..Measures ambient light levels of white, red, yellow, green and blue LED light and visible light in Foot-candles or Lux.Large, backlit LCD display.Detachable and rotatable light sensor.Min/Max and data hold functions.Cosine and color corrected measurements.User adjustable parameter for specialized light sources.Low battery indicator and auto shut off.Light range of 0 to 199,900 LUX (0 to 19,990 ft-cd).Accuracy of Incandescent Light Source is ±(3% rdg.+ 5 dgt) (Otheer Visible Light Source: ±8% rdg..Resolution of 0.1 Lux (0.01 ft-cd).Response Time of 500mS.Silicon photodiode sensor with color correction filter and cosine correction.Light Types: White LED, Yellow LED, Green LED, Red LED, Blue LED, Warm White Fluorescent, Cold White Fluorescent Lamp, Incandescent.Automatic and Manual Autoranging.6-Digit LCD Display.Min/Max and Data Hold function.Overrange Indicator.Auto Shut-off after 30 minutes.Powered by 2x AA Batteries.6.7''H x 2.5''W x 1.5"D.Weighs 7.4 oz (210g).Includes the Detachable Sensor, Sensor Cover, Hard Carrying Case and 2x AA Batteries.Auto-ranging LED light meter with detachable and rotatable sensor that allows for one-handed operation.

This LCR meter measures inductance, capacitance and resistance with secondary parameters such as dissipation factor (D), quality factor (Q), phase angle and equivalent series/parallel resistance (ESR or Rp). The R5001 features a large easy-to-read LCD display with backlight, and data hold/relative functions..Measures inductance, capacitance and resistance.Auto ranging for AC impedance and DE resistance measurement.Auto LCR smart check and measurement.Series/Parallel modes.Ls/Lp/Cp with D/Q ESR parameters.Support DCR mode 200 to 200M?.High accuracy with 4 / 5 terminal Kelvin measurement.10kHz testing frequency and up to 100kHz output frequency.Large backlit dual LCD display.Data hold and relative functions.Low battery indication with auto power off.8.7"H x 3.8"W x 2.4"D.Blue.Inductance range 2000.0 H, 20.000/200.0/2000.0mH, 20.000/200.00/2000.0H.Inductance resolution of 0.1/1 H, 0.01/0.1/1mH, 0.01/1H.Capacitance range of 2000.0pf, 20.000/200.00/2000.0nf, 20.00/200.00/2000 f.Capacitance resolution of 0.01/0.1/1pf, 0.01/0.1/1nf, 0.1 f.Resistance range 20.000/200.00ohm, , 2.0000/20.000/200.00kohm, 2.0000/20.000/200.0Mohm.Includes test leads and batteries.Includes test leads and batteries.L, C, R measurements with test frequency up to 100kHz
