Power Injector

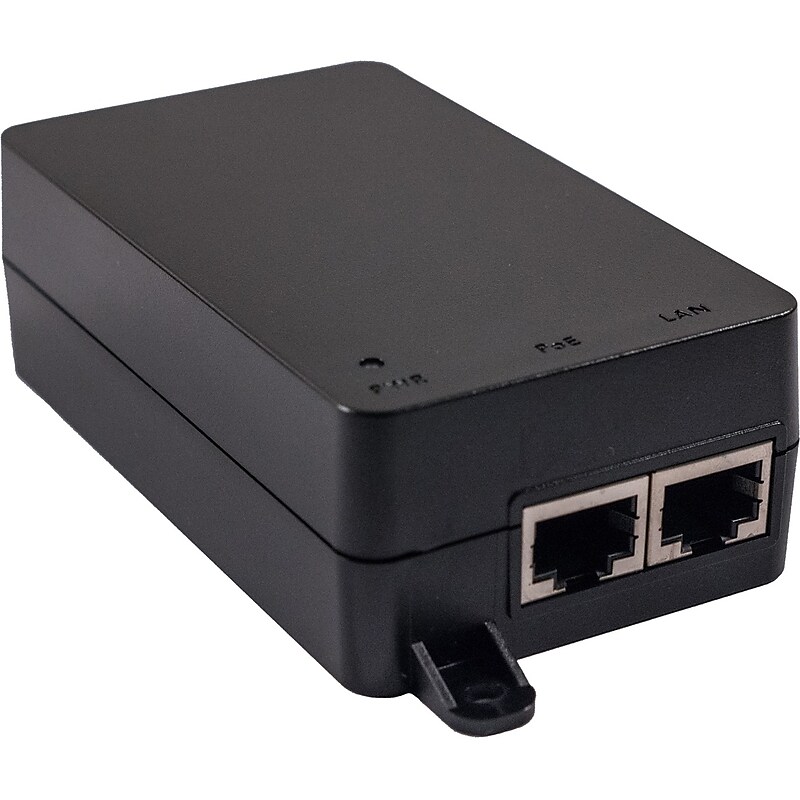

Adds PoE Devices to Your LAN Without a PoE Switch: Now you can add a surveillance camera, wireless access point, VoIP phone or other PoE (Power over Ethernet) device to your home or office network, even if your network switch doesn't support PoE. Instead of making an expensive upgrade to a PoE switch, you can use this single-port PoE+ injector to send 30 watts of power, as well as Gigabit Ethernet data, through your existing Cat5e/6/6a cabling. Saves You Time and Money on Unnecessary Equipment Updates: This compact PoE plus injector delivers 10/100/1000 Mbps of data and up to 30 watts of power using existing Cat5e/6/6a cables. That means, in addition to not buying a new PoE network switch, you also don't need to install new AC power lines and electrical outlets. This cost-effective midspan injector sends DC power and Ethernet data through your Ethernet cable, cutting down on cable clutter, equipment costs and installation time and labor. Expand Your Wireless Network Up to 328 ft.: The NPOE-30W-1G delivers both power and data to any IEEE 802.3at (PoE+) or IEEE 802.3af (PoE) device up to 100 meters (328 feet) away. This allows you to install a device in a building lobby, on a ceiling, inside a warehouse or anywhere else an AC power outlet is unavailable. The PoE+ injector supports full-duplex 2 Gbps communication for sending and receiving data simultaneously. It also protects your device against short circuits, overloads and power surges. Simple Plug-and-Play Installation Has Your Device Connected in Minutes: No configuration or software is required to add the NPOE-30W-1G to your LAN. Just connect your switch or network jack to the shielded RJ45 Data port and your PoE device to the shielded RJ45 Power + Data port using existing Cat5e/6/6a cable. Connect the unit's C14 inlet to a NEMA 5-15R outlet using the included power cord. LEDs indicate the unit is receiving power and is ready to transmit data. Designed for Installation Almost Anywhere: Mounting holes are featured for installing the midspan injector on a shelf, desktop, wall or any other smooth surface with user-supplied hardware. The black plastic housing fits in the palm of your hand, so it is small enough to hide away without interfering with your workflow or décor. The fanless design is ideal for silent operation. 3-Year Warranty and Environmentally Responsible Design: The NPOE-30W-1G comes with a 3-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility..PoE+ injector uses existing Cat5e/6/6a cable to supply power to a PoE device connected to a non-PoE switch..Saves money by delivering 30W of power + data up to 328 ft. through existing cabling.Extends power + data to any PoE or PoE+ device installed where no AC outlet is available.Supports Gigabit Ethernet data transfer speeds up to 1000 Mbps.Quick and easy plug-and-play installation with no configuration necessary.Compact, hand-sized plastic housing ready for mounting on any smooth surface

Ubiquiti PoE Injector.Input Voltage: 24 V DC.Form Factor: Desktop.Maximum Output Power: 24 W

Certifications & Standards: IEEE 802.3at.PoE Injector.Part Number: WG8599

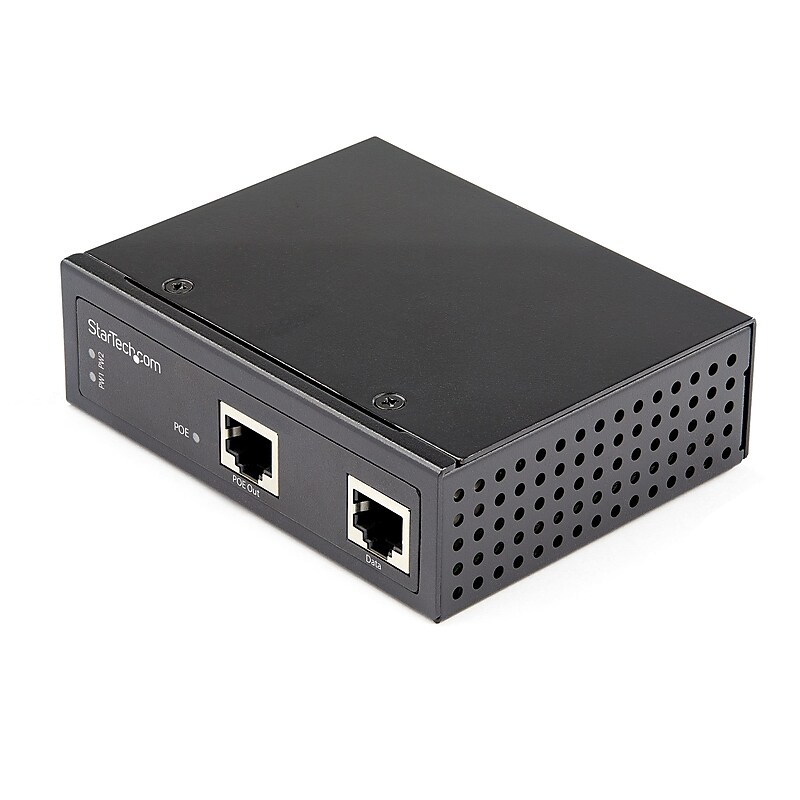

Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 48V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged (POEINJ1G90W).90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing | Hardened operating temp of -40C to 75C.STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years | This PoE Injector is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support.TECH SPECS: 1 Gbps | 48V-56VDC Power Input | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt 90W max | PoH (HDBase-T) | uPoE | 10/100/1000 Mbps Auto Negotiation | DIN/Wall Mountable | Redundant Power Input.WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible w/ IEEE 802.3bt (PoE++) & previous 90W proprietary POE standards including PoH (HDBase-T), Cisco uPoE, Bosch & AXIS.Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 18V-56V DC

The Axis Communications 5900-334 high PoE midspan with data connectivity, provides an easy and fast solution for powering network video products without the need to install power outlets and electrical cabling. This midspan conforms to the IEEE 802.3at for powering devices with high power requirements on a network. It provides 60 W power and is perfect for use with all Axis network video products featuring built-in PoE support. Midspan enables the network video devices to receive data and power over the same Ethernet cable and makes it easier to install in areas where power cabling and outlets are unavailable..PoE injector.Dimension: 1.5" x 2.4" x 5.9"; Weight: 0.7 lbs..Connectors: shielded RJ45, EIA 568A and 568B power connector C13.Data rate: 10/100/1000 Mbps.Power selector: 15 W or 30 W; Input voltage: 100 to 240 VAC; Frequency: 50-60 Hz.Local LED management display.Maximum output power: 60 W.Network cables: shielded category 5 (or higher).Port interfaces are located on the front panel, Port LED: power indicator and data connectivity.Mounting wall, shelf or DIN rail.Operating conditions: -10 to 45 deg C (14 to 113 deg F).RoHS, REACH, CB, WEEE, CE, EN 55022 Class B, EN 61000 3-2, EN 61000 3-3, EN 55024, FCC Part 15 Subpart B Class B, VCCI Class B.Optional accessories: AXIS midspan DIN clip a mains cable angle C13-open 0.5 m.PoE injector with 10/100/1000 Mbps data rate.

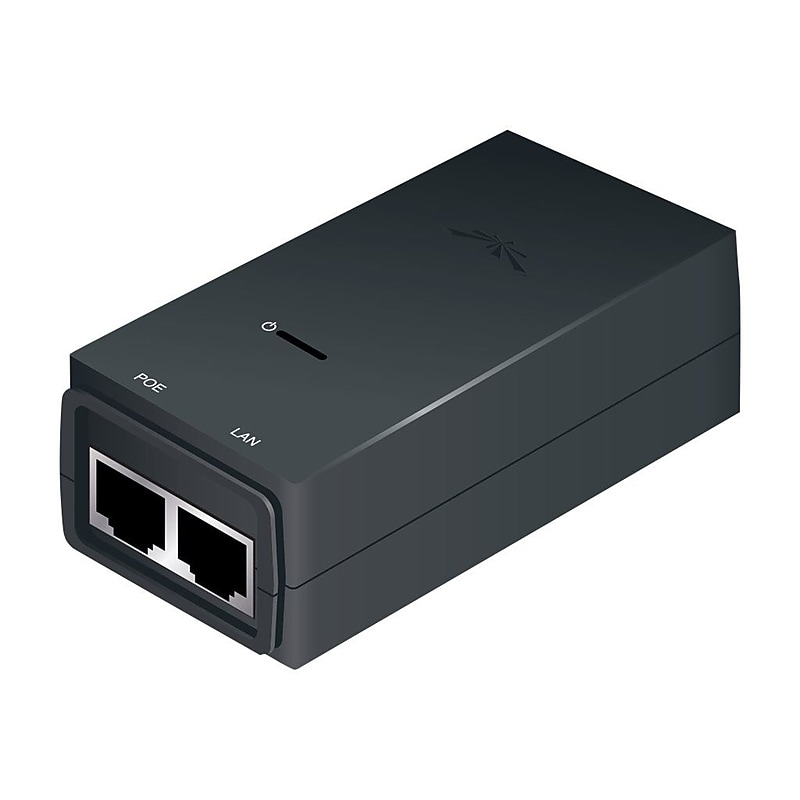

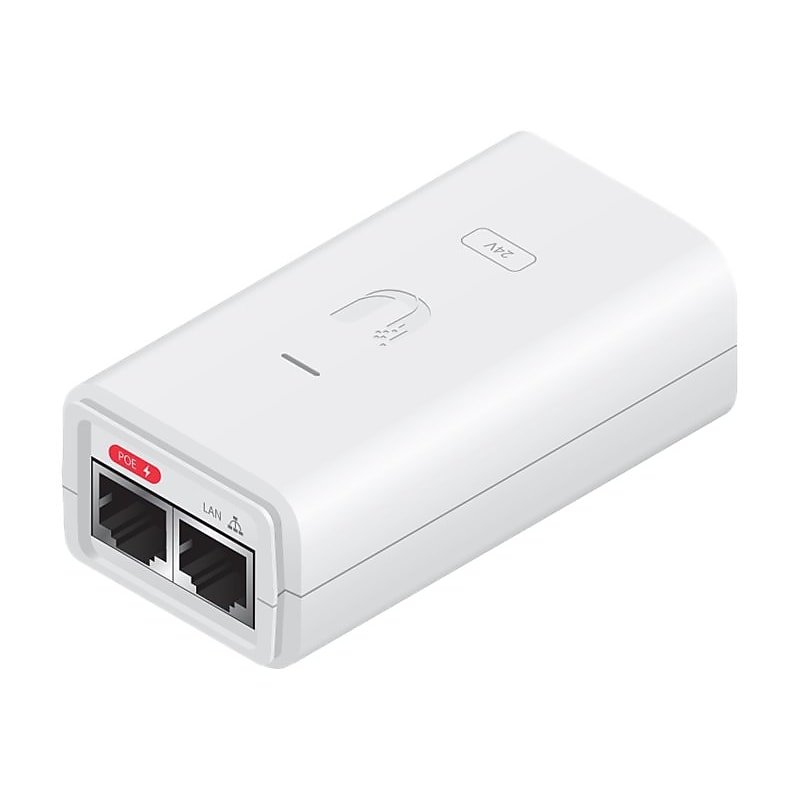

The Ubiquiti Networks PoE Injector is designed for the company's airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Protect / airVision products. This 24 VDC, 7.2W, 0.3A adapter provides protection against surge, clamping, maximum surge discharge, and peak pulse current..Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including: airFiber®, airMAX®, EdgeMAX®, mFi®, UniFi® AP, UniFi Video / airVision®.Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network..120 V AC, 230 V AC Input - 24 V DC, 300 mA Output.Gigabit Ethernet Input Port(s) - Gigabit Ethernet Output Port(s).Ubiquiti Networks PoE Injector (24 VDC, 7.2W)

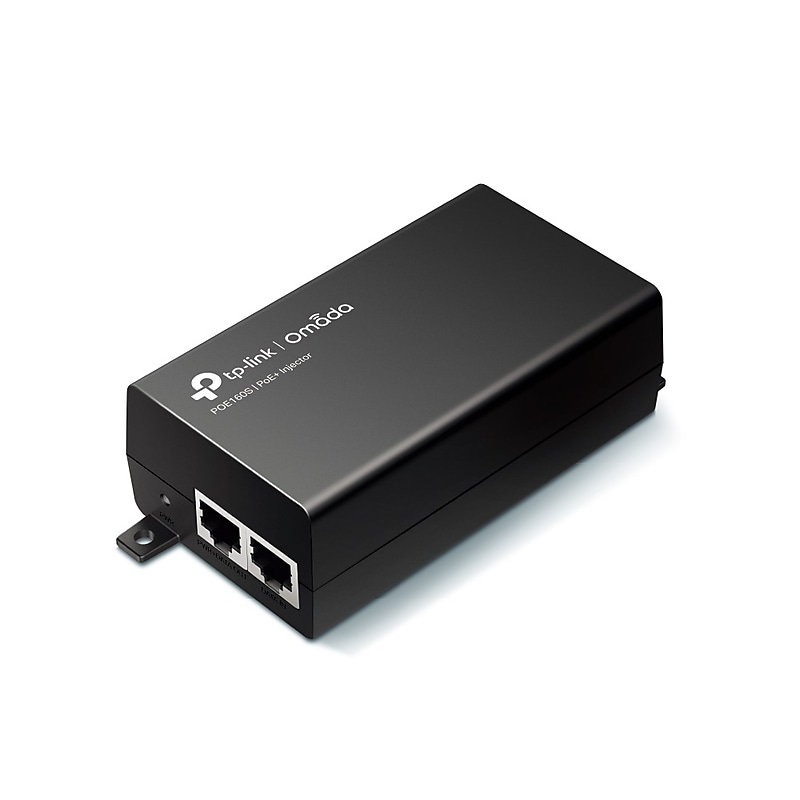

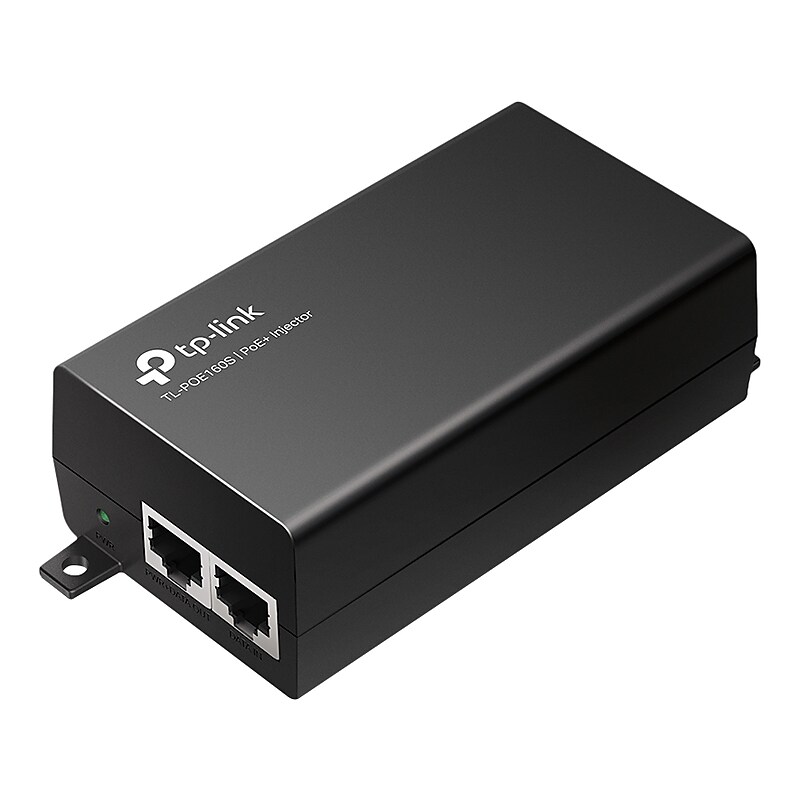

Power Up Your Network with TP-Link POE160S PoE+ Injector Enhance your network's efficiency and reach with the TP-Link POE160S PoE+ Injector. Designed to comply with IEEE 802.3af/at standards, this powerful injector delivers up to 30 W of power, making it perfect for powering devices like access points, IP cameras, and IP phones. With its plug-and-play installation, you can easily expand your network without the need for additional power lines or outlets. Key Features: Gigabit Ports: Enjoy faster data transmission with two Gigabit Ethernet ports, ensuring seamless connectivity for your devices. High Power Output: Supplies up to 30 W of power, automatically adjusting to meet the needs of your connected devices. Cost-Effective Solution: Reduce infrastructure costs by transmitting data and power simultaneously over a single Ethernet cable. Versatile Installation: The wall-mounting and desktop design accommodate various installation scenarios, providing flexibility for your network setup. Plug & Play: Easy installation with no configuration required, allowing you to quickly and effortlessly expand your network. Reliable Performance: Complies with IEEE 802.3af/at standards, ensuring compatibility with a wide range of PoE devices. Whether you're setting up a new network or upgrading an existing one, the TP-Link POE160S PoE+ Injector is the perfect solution for delivering power and data efficiently and reliably. Trust TP-Link to power your network with ease and efficiency..This PoE Injector is ideal for expanding your network to areas without power lines or outlets, supporting devices like access points, IP cameras, and IP phones..Compatible with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Splitters, such as TP-Link's POE10R (TL-POE10R), or other equivalent products..The injector measures 4.9 x 2.3 x 1.4 inches, making it compact and easy to install in various settings..The device comes in black and is made of durable materials to ensure long-lasting performance..The TP-Link POE160S PoE+ Injector is sold individually, providing one unit per purchase.

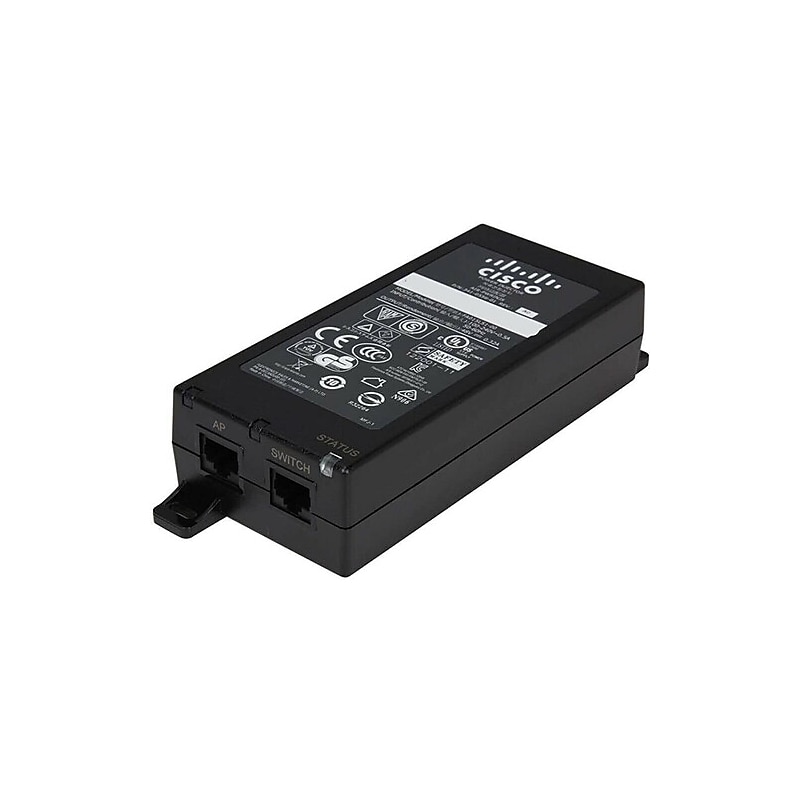

Power Cisco Business Wireless 100/200 series access points and other PoE devices with the CB-PWRINJ-NA 15.4W Single-Port PoE Injector. This unit will support devices that require up to 15.4W of PoE up to 328' away. It complies with the IEEE 802.3af standard and supports 1000 Mb/s passthrough data rates..Watts, Power Supply & Use: Delivers 15.4W PoE, Single-Port PoE Injector.Complies with IEEE 802.3af.Input Voltage: 90 to 264 VAC, 50 / 60 Hz.True Color: Black.Warranty: 1 Year.Power Cisco Business Wireless 100/200 series access points and other PoE devices with the CB-PWRINJ-NA 15.4W Single-Port PoE Injector.

The TP-LINK PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) and PoE receiver adapters (such as TP-LINK's TL-POE10R or other equivalent product) to expand your network to where there are no power line or outlet, where you wish to fix a device such as AP, IP Camera or IP Phone, and more..PoE+ injector reduces infrastructure costs by transmitting data and power simultaneously via Ethernet cable.Works with all IEEE 802.3af/at PoE compliant powered devices and PoE receiver adapters.Comes in black.Two Gigabit ports ensure faster transmission.Complies with IEEE802.3af/at standards, supplies up to 30W.Automatically determines and supplies the exact power to meet the device's needs.Can be mounted on a wall or positioned on a desktop, accommodating most installation scenarios.Plug-and-play design requires no installation or configuration.Features an integrated power supply

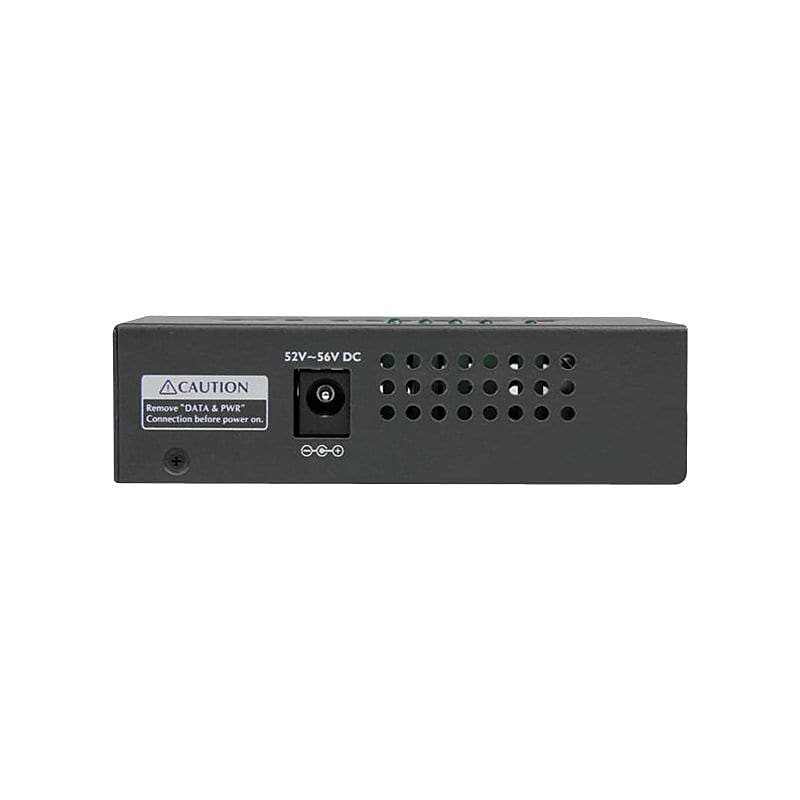

The StarTech POEINJ4G black PoE+ injector helps to deliver power and data to four power over Ethernet devices using this wall-mountable PoE+ midspan hub. It supports 10/100/1000 Mbps networks/devices as well as auto-negotiation and auto-MDIX. Features flexible setup and comes with a desktop-sized or wall-mountable metal housing for durability. PoE+ injector automatically detects the powered device to offer the appropriate level of power output..PoE injector is perfect for powering a Wireless Access Point (WAP) in a business environment.Dimensions: 3.7"H x 2.8" W x 1"D.Compatible with IP cameras, IP phones and wireless access points.Comes in black color.Easily connect, power, and operate up to four gigabit PoE-powered devices (PD).Delivers full power to each port - up to 30.8 W (802.3at) or 15.4 W (802.3af) to each connected device.Flexible setup, with a desktop-sized, or wall mountable metal housing for user convenience.Plug and-play setup for reliable operation.Automatically detects the powered device to provide the appropriate level of power output.Circuit protection prevents power interference between each port.Support for 10/100/1000 Mbps networks and devices, as well as Auto-Negotiation and auto MDIX.Enable remote installation of touchscreens, information kiosks, and phones in locations where a power connection is not available.Has 8 - RJ-45 female connectors, 4 ports and 1 power/4 PoE in-use LED indicators.Power supply: 100 -240VAC (input), 52VDC (output ), Current: 2-1A (input), 2.31A (output), Power consumption: 120W max, Power output: 52VDC at 30.8W.Temperature: -10 - 70 deg C (storage), 0 - 50 deg C (operating), Humidity: 5 - 95% RH (non-condensing).Includes 1 x 4-port gigabit PoE+ Injector, 1 x universal power adapter, 3 x power cords (NA/UK/EU), instruction manual.Meets RoHS compliant, FC, CE certification and standards.Weight: 7.2 oz.Comes with 2 years warranty.The StarTech black PoE+ injector is suitable for almost all PoE device classes, including wireless access points, as well as IP phones and cameras.

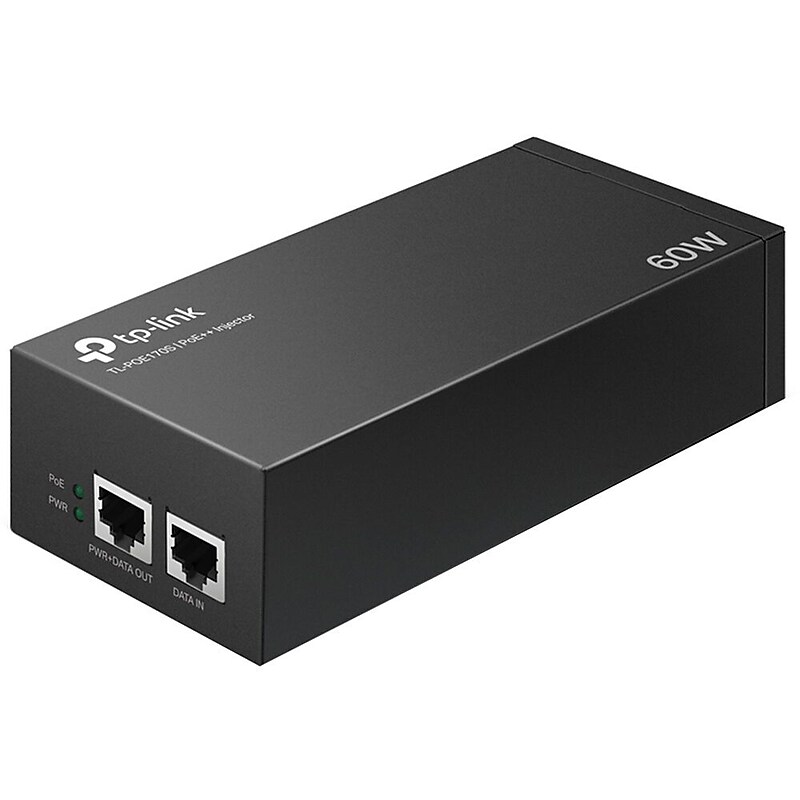

Introducing the TP-Link Omada PoE++ Injector, the perfect solution for expanding your network to areas without power lines or outlets. This versatile injector fully complies with IEEE 802.3af/at/bt (type 3) standards, delivering up to 60W of power to your PoE devices. Ideal for powering PTZ IP cameras, access points, and LEDs, it ensures reliable performance and seamless connectivity. Designed for convenience, the Omada PoE++ Injector features two Gigabit Ethernet ports, allowing for both data and power transmission over a single Ethernet cable. Its plug-and-play installation makes setup a breeze, while the durable metal casing ensures long-lasting use. Whether mounted on a wall or placed on a desktop, this injector fits perfectly into any environment. With automatic power adjustment, the injector supplies the exact power needed by your devices, preventing overloading and ensuring efficient energy use. Certified by CE, FCC, and RoHS, it meets international standards for safety and performance. Upgrade your network with the TP-Link Omada PoE++ Injector and enjoy the benefits of extended connectivity and reliable power delivery. Perfect for both residential and commercial applications, this injector is your go-to choice for enhancing your network infrastructure..The TP-Link Omada PoE++ Injector is designed to provide power and data transmission to PoE devices via an Ethernet cable. It is ideal for expanding your network to areas without power lines or outlets, making it perfect for PTZ IP cameras, access points, and LEDs..This injector is compatible with devices that comply with IEEE 802.3af/at/bt (type 3) standards, including PTZ IP cameras, access points, and LEDs, ensuring seamless integration into your network..The injector measures 6.1 inches in width, 2.8 inches in depth, and 1.7 inches in height, making it compact and easy to install in various environments..The injector comes in a sleek black color and features a durable metal casing, ensuring long-lasting performance and protection for your network setup..The TP-Link Omada PoE++ Injector is sold individually, providing a single unit per purchase.

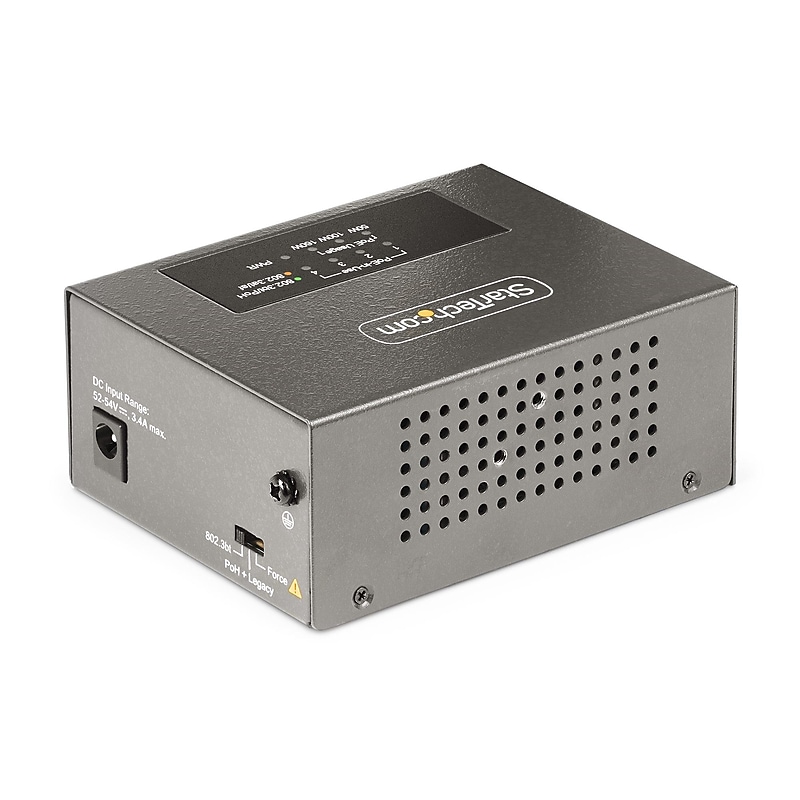

This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions. Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage..4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection.SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts.MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment.RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports.STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system.This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports.

This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions. Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage..4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection.SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts.MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment.RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports.STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system.This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports.

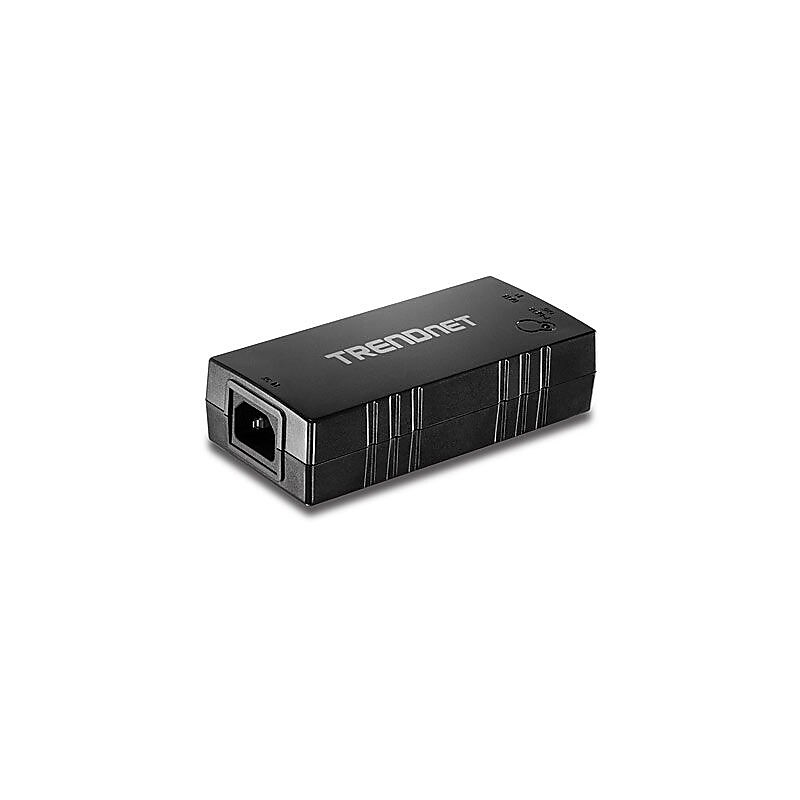

The Gigabit PoE+ Injector, model TPE-115GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet Plus (PoE+) signal. Connect this device to a non-PoE Gigabit switch and then run an Ethernet cable for up to 100 meters (328 ft.) to network PoE+ or PoE devices. The integrated power supply reduces installation clutter.Auto sensing technology delivers 30 Watts to 802.3at PoE+ devices or 15 Watts to 802.3af PoE devices. No need to buy a PoE switch-use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations..Dimensions: 1.4"(H) x 5.2"(W) x 2.5"(D).Features network distances of up-to 328'.Input ports: 1 x RJ-45 10/100/1000Base-T.Output ports: 1 x RJ-45 10/100/1000Base-T.Input voltage: 110/220 VAC, 50/60 Hz.Input current: 650 mA.Output power: 30 W maximum.Form factor: External.Full duplex gigabit speeds, converts a non-PoE ethernet port-to a PoE+ or PoE port.Integrated power supply.Includes gigabit PoE+ injector, quick installation guide, power cord.Certifications and standards: CE, FCC, IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, Green compliance certificate/authority: RoHS, WEEE.Weight: 5.70 oz..Warranty: 3 years limited.TRENDnet® Full duplex Ethernet speed gigabit PoE+ injector features network distances of up-to 328'.

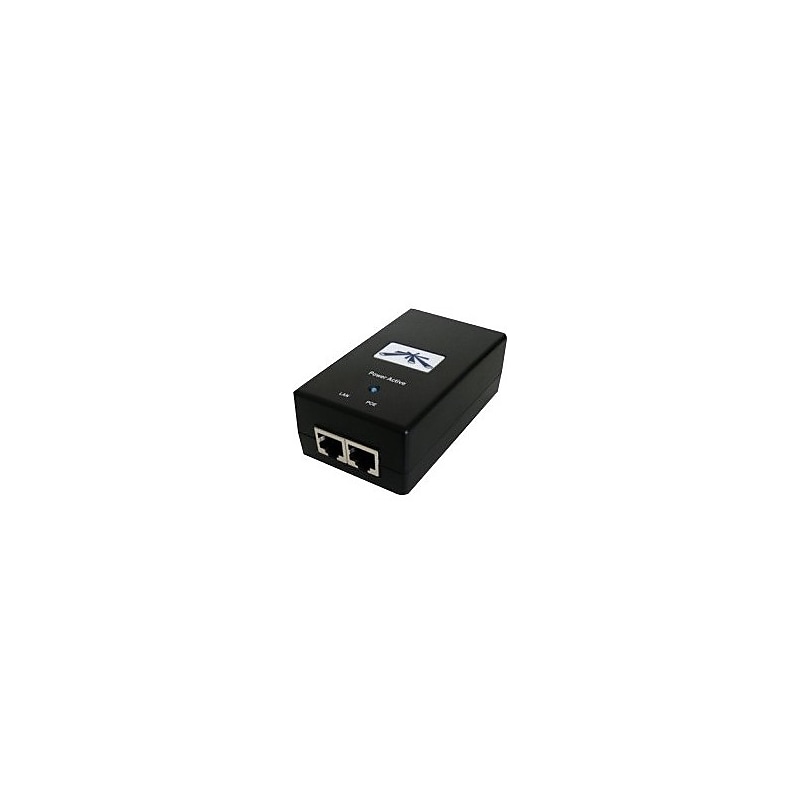

Ubiquiti™ Networks™ 50 VDC 60 W Power over Ethernet injector features RJ-45 input/output port to deliver high-speed internet. Injector comes with USA power cord features an power LED to indicate status and has input voltage of 110 - 220 VAC..Frequency: 47 - 63 Hz, 65 kHz switching.Dimensions: 1.3"(H) x 3.97"(W) x 2.36"(D).Interfaces/ports: Input ports: 1 x RJ-45 ethernet, output ports: 1 x RJ-45 ethernet.Power: Output power: 60 W, input voltage: 110 - 220 VAC, 50 VDC output, input current: 1.3 A at 110 VAC, 750 mA at 220 VAC.Efficiency: 85+%, output ripple: 1%, regulation: + or - 1% line, + or - 3% load, peak pulse current: 36A (10/1000microsecond) data.Operating temperature: -10 - +60 deg C, Operating humidity: 5 - 90% non condensing.Surge protection: Difference and common mode, clamping protection: 11 V data, 60 V power.Shunt capacitance: <5 pf data, response time: <1 nS, 4-pair powering: Pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-).Compatibility: Rocket-Ti, UAP-Pro.Certifications and standards: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B.Weight: 6.77 oz..Ubiquiti™ Networks™ 50 VDC 60 W Power over Ethernet injector provides earth grounding/surge protection and also helps to protect against ESD attacks.

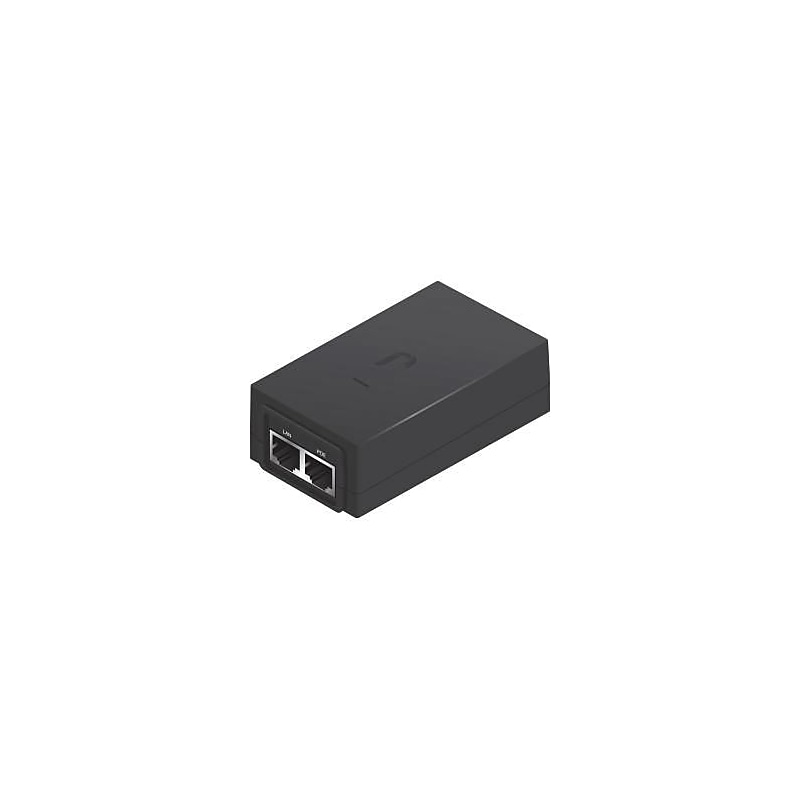

The Ubiquiti® POE-24-12W-G 24V PoE injector with Gigabit LAN port, powers a variety of PoE devices belonging to the airFiber, airMAX, EdgeMAX, airVision, UniFi and mFi series. This 24 VDC injector provides protection against surge, clamping, peak pulse current, maximum surge discharge and ESD attacks..Power over Ethernet injector provides protection against surge, clamping, peak pulse current.Compatible with Ubiquiti products - airFiber, airMAX, airVision, UniFi, mFi.Interface/ports: Gigabit LAN port.Dimensions: 1.14"H x 3.43"W x 1.73"D.Form factor: Wall mountable.Power supply: Input: 90 - 260 VAC at 47 - 63 Hz, 0.3 A at 120 VAC, 0.2 A at 240 VAC, output: 24 VDC at 0.5 A.Temperature: 0 - 40 deg C operating, -30 - 70 deg C storage, humidity: 35 - 95% non-condensing operating.Meets IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC Class B, USA, EU, AR, BR, UL, CCC, Mexico standards.Weight: 3.51 oz.
