Fiber-Optic Tools

Fluke Networks OptiFiber Pro designed for enterprise, datacenter, outside olant and PON fiber. As fiber networks evolve, the need to test in more locations has increased. OTDRs are now needed for: FTTx, enterprise, OSP, PON, POLAN. Many OTDRs designed for fiber troubleshooting are designed for carrier and contain cumbersome and complicated features. The OptiFiber Pro OTDR family is the first class of OTDRs that is built with features and usability for both the enterprise network engineers, and cable installers working in both enterprise and OSP environments. Fluke Networks OptiFiber Pro OTDRs make novices and experts faster. Advanced features include Manual Expert mode, pinch and zoom for in-depth trace analysis and SmartLoop for bi-directional testing. Supports Versiv copper and fiber loss certification modules..The optical time domain reflectometer (OTDR) for testing fiber networks.Mainframe with module dimensions: 11"H x 5.25"W x 2.63"D.Comes in black and yellow.Kit includes: versiv 2 mainframe, OptiFiber Pro Quad OTDR module, shoulder strap, carry case, USB interface cable, versiv open source software CD, AC charger, two quick clean cleaners, two SC/LC multimode launch cables, two SC/LC singlemode launch cables, two OTDR source port interchangeable LC adapters, USB fiber inspection video probe with four tips, SC/SC simplex adaptor, two launch fiber hanging straps and magnets, integrated Wi-Fi, Statement of calibration and getting started guides..Multiple wavelengths (850, 1300, 1310,1490, 1550, and 1625nm) support LAN, datacenters, PON, FTTx, and outside plant applications.Automated setup senses fiber characteristics and sets measurement parameters.SmartLoop OTDR enables automated testing and analysis of two fibers in a single test, eliminating the need to travel to the far end of the connection to perform tests.Adaptive user interface puts advanced data analysis and easy setup and operation at the fingertips of technicians of all skill levels.Compatible with Linkware Live and enables to easily track job progress, get real-time access to test results to quickly fix problems in the field, and easily transfer and consolidate test results from the tester to LinkWare PC cable test management software.Test times in 2 seconds in Quick Test mode.Quickly test datacenter fiber with preprogrammed settings.Troubleshoot datacenter fiber links with short patch cables and many connectors because of ultrashort dead zones.Easily characterize all connectors, splices, and areas of high loss with graphical EventMap view.Pass/Fail certification of fiber optic connector endfaces.ProjX management system increases return on investment by enabling OTDR.Reduce network downtime by quickly and precisely identifying faults on all fiber types.Built-in Visual Fault Locator (VFL) easily identifies damaged fibers.Meets or exceeds ISO/TIA standards.Integrated Wi-Fi allows you to easily upload results to LinkWare Live

The Fluke Networks® FTK1475 portable fiber verification kit includes implifiber Pro multimode and singlemode PMLS, Visifault, two findfibers, findfiber remote ID, three power meter adapters, reference guide, carrying case, NFC-KIT-BOX cleaning kit, 1.25 mm swabs and USB interface cable. Kit helps to verify optical loss and power levels at 850, 1300, 1310 and 1550 nm, inspect fiber end-faces, locate cable faults..Fiber verification kit has advanced time-saving features.Complete fiber verification kit is for contractors and network technicians.Use this kit to verify optical loss and power levels at 850, 1300, 1310 and 1550 nm, inspect fiber end-faces, locate cable faults.Include: Simplifiber Pro multimode and singlemode PMLS, Visifault, two findfibers, findfiber remote ID, USB interface cable.Include: Three power meter adapters (SC, ST and LC), reference guide, carrying case, NFC-KIT-BOX cleaning kit, 1.25 mm swabs

Multimode Fiber Verification Kit with Visifault - Includes Simplifiber Pro optical power meter, 850/1300 multimode source, Visifault VFL, FindFiber Remote ID source, Magnetic strap attachments, and carrying case; SC, ST, and LC power meter adapters also included.Multimode Fiber Verification Kit with Visifault.Networking Accessory.Part Number: FTK1200

The Fluke Networks® SFPOWERMETER SimpliFiber Pro optical power meter has USB port for connectivity. It measures 6.4" x 3.2" x 1.5". The power meter has InGaAs detector and comes with SC adapter..Dimensions: 6.4"H x 3.2"W x 1.5"D.Interface/ports: USB, one SC port.Fiber wavelength: 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 850 nm.Battery chemistry: Alkaline.InGaAs detector, USB connectivity.Weight: 11.5 oz..Detector type: InGaAs, calibrated wavelengths: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm.Wavelength accuracy: 850 nm: +/-30 nm, 1300 nm: +/- 20 nm, Spectral width (FWHM): 850 nm: 50 nm (typical), 1300 nm: 135 nm (typical).Power display units: dBm, mW, Micro W, Minimum output power: 850/1300 nm: -20 dBm, Power output stability: +/- 0.1 dB over 8 hours.Reference individually set for each wavelength.Single-port, simultaneous dual wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record.Additional 1490 and 1625 nm wavelengths extends product use to broader applications.Min/max capability automates precision tracking of intermittent power fluctuations.Large internal memory save 1000 results which enables continuous testing and recording.Includes simplifiber SFPOWERMETER pro optical power meter, SC adapter.Certifications and standards: EMI, RFI, EMC.Fluke Networks® SimpliFiber® Pro optical power meter has large internal memory that saves up to 1000 results which enables continuous testing and recording.

The Fluke Networks® SimpliFiber® FTK1000 multimode fiber verification kit in yellow, includes pro optical power meter, 850/1300 multimode source, carrying case and SC power-meter adapter. The single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record. The CheckActive™ feature emits an audible tone and displays an icon when it detects a live fiber and the FindFiber™ remote id enables one individual to identify cable connections or routings especially useful at patch panels..Basic multimode fiber verification kit.Dimensions: 5.6"H x 3.2"W x 1.6"D.Comes in yellow color.Dual wavelength testing and tests multimode and singlemode fiber.Measures optical power and loss at 850 nm and 1300 nm using the 850/1300 source and meter.Measures optical power and loss at 1310 nm and 1550 nm using the 1310/1550 source calibrated wavelengths in the power meter at 1490 nm and 1625 nm.Offers quick remote identification of cabling runs with find fiber remote IDs.Conduct pre testing and qualify cabling runs.Single port testing for simple network connection.Ruggedly built for demanding field use.Auto senses source wavelength.Operating temperature: 14 deg F to 122 deg F (-10 deg C to 50 deg C).Weight: 1.8 oz.

The Fluke Networks™ FiberInspector™ FI-500 micro inspection scope has autofocus feature for stable images in few seconds. The large display helps to view singlemode and multimode fiber endfaces. It has built-in flashlight that illuminates dark areas and dense panels. The micro inspection scope in yellow/black color, has rechargeable NiMH battery..Micro inspection scope has autofocus feature for stable images in few seconds.Dimensions: 5.5"H x 3.2"W x 1.5"D display, 4.6"H x 2"W x 0.95"D probe.Comes in yellow/black color.Battery: Rechargeable NiMH, 2 x 1.2 V, 2700 mAh, 3 hrs of continuous probe use and 6 hrs of typical probe use battery life.Magnification: 1x, 2x, 4x display, 200x probe zoom function has 1x, 2x and 4x settings, camera type: 5 MP 0.25" CMOS sensor.Power adapter: 100 - 240 VAC +/- 10%, 50/60 Hz input, 6 VDC, 3 A maximum class II output.Input: USB 2.0 type A.PortBright a built-in flashlight illuminates dark areas and dense panels.Autofocus for stable images in few seconds.Large display to view singlemode and multimode fiber endfaces.Temperature: 0 to 50 deg C operating, -30 to 60 deg C storage without power adapter.Includes 4 tips (1.25mm, 2.5mm, SC, LC), case, rechargeable batteries and universal power adapter.Weight: 0.6 lbs.

MS2-FTK MicroScanner copper and fiber cable verifier kit helps find common errors by displaying graphical wiremap, pair lengths, distance to fault, and far-end device. Integrated RJ11, RJ45, and coax test ports support many types of low-voltage cable testing with no need for adapters. Test and verify your fiber connections with the SimpliFiber Pro power meter and light source..Network copper and fiber test kit measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports.Dimensions: 1.4"H x 3"W x 6.4"D.Comes in black and yellow.Kit includes: MicroScanner cable verifier and SimpliFiber Pro (FTK1000) fiber test kit (SimpliFiber Pro optical power meter, 850/1300 multimode source, magnetic strap attachments, carrying case, and SC power-meter adapter).Test connectors: shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; MicroScanner2: F-connector for coaxial cable.Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs.Features a monochrome LCD with backlight.MicroScanner solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices.MicroScanner PoE: solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco's Universal Power over Ethernet) compatible PoE devices.MicroScanner2 detects the advertised speed of 802.3 Ethernet ports with speeds of 10Mbps, 100Mbps, and 1Gbps.Verifies media services: 10/100/1000 Ethernet, POTS, and PoE.Tone generator produces 500kHz digital, 400kHz and 1kHz analog tones.Supports toning and cable mapping with a Fluke Networks digital IntelliTone probe

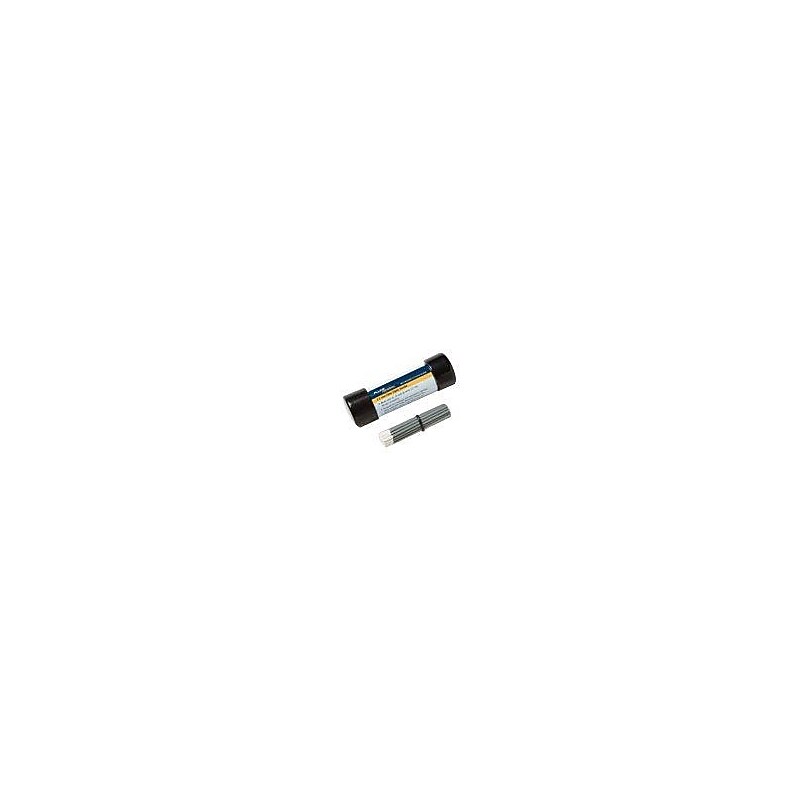

The Fluke Networks NFC-SWABS-2.5mm - SC, ST port cleaning swabs helps in cleaning all fiber connectors and eliminates the failure of fiber optic links. The 2.5 mm cleaning Swabs effectively removes the toughest contaminants in any fiber network..Polyester construction.Compatible with SC port, ST port, FC port fiber optic connectors.2.5 mm port cleaning swabs.Maximum Data Transfer Rate: 600Mbps.Warranty: 5 Years.Fluke Networks NFC Swabs are used for removing dirt dust and other contaminants from high-speed data transmission networks.

VFLs work well for exposed lengths of fiber near a patch panel by illuminating bad connections and breaks. They are not very helpful for cable runs more than a few meters, or when the cable not visible or accessible, or when the laser light can't penetrate the jacket. Optical Time Domain Reflectometers (OTDR) provides graphical data and analysis along the entire length of a cable, way beyond the reach of a VFL, but they can be expensive and require more time to and skill to operate. Fiber QuickMap fills the gap between a VFL and an OTDR. These models have the simplicity of a VFL, and provide distance and power information on high losses, breaks, and the end of the fiber. They also identify live fiber.Battery Chemistry: Alkaline.Number of Batteries Supported: 2.Battery Size Supported: AA

The Fluke Networks® OFP-Q-ADD OptiFiber Pro add on kit is the first OTDR with a smartphone user-interface and is built from the ground up for enterprise fiber optic cable testing. The SmartLoop™ technology enables the testing of two fibers in a single test by eliminating the need of travel to the far end of the connection to perform tests. The Versiv™ modular design supports copper certification, fiber optic loss and OTDR testing and fiber end-face inspection. The OTDR is compatible with Linkware™ live, which enables you to easily track job progress with real-time access to fix problems in the field and transfers the test results from the tester to LinkWare™ PC cable test management software..OptiFiber Pro add on kit.Includes OptiFiber Pro quad OTDR module, 2 x SC/LC multimode launch cables - 50 um, 2 x SC/LC singlemode launch cable - 9 um, SC/SC simplex adaptor.Includes 2 x launch fiber hanging straps and magnets, carry case, statement of calibration and getting started guide.OptiFiber Pro add on kit includes OptiFiber Pro quad OTDR module, SC/LC multimode launch cables, SC/LC singlemode launch cable, OTDR source port interchangeable LC adapters, SC/SC simplex adaptor, LC/LC simplex adaptor etc.

Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection.Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards.ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly.Taptive user interface simplifies set-up, and eliminates errors
