Media Converters for Transition Networks

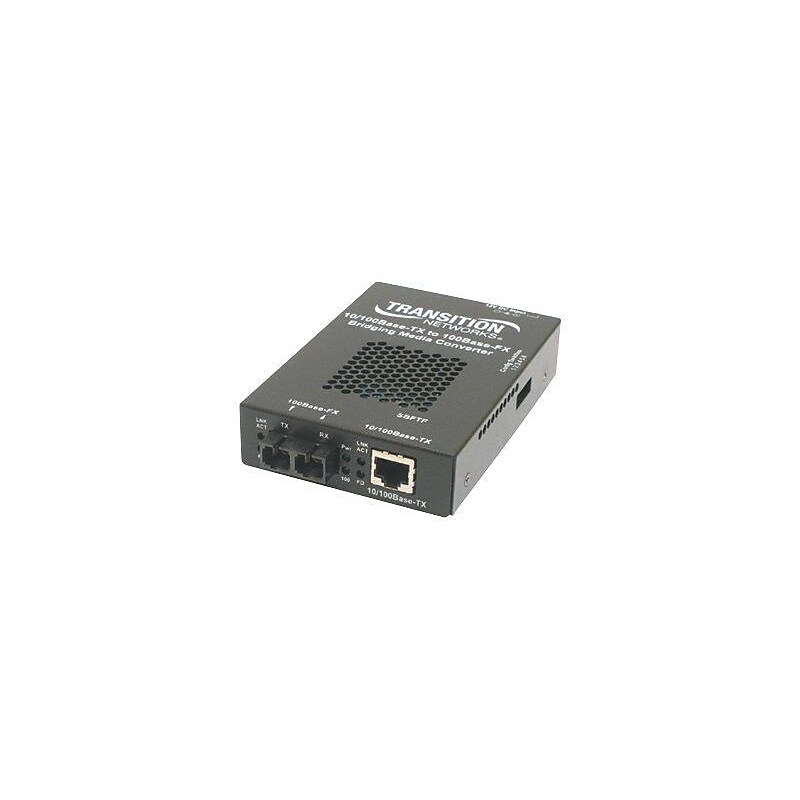

Transition networks sbftf1013-105-la bridging media converters will provide conversion and integration solutions for half and full-duplex environments..Interfaces/ports: 1 x RJ-45 10/100Base-TX, 1 x SC 100Base-FX.Dimensions: 1"(H) x 3 1/4"(W) x 4.8"(D).Auto-negotiation.Standards: IEEE Std. 802.3.Distance support: 1.24 mile.Operating temperature: 0 - 50 deg C.Humidity: 5 - 95% non - condensing.Altitude: 0 - 10000'.UL listed and CSA certified.Data transfer rate: 10 Mbps, 100 Mbps.Performance class: Fast ethernet.Lifetime limited warranty.Media converter is designed to extend the reach of a 10/100 network.

The Transition Networks® SGFEB1013-130-NA Ethernet media converter offers data rates up to 10/100/1000 Mbps on copper and 1000 Mbps on fiber ports. It integrates 1000Base-SX/LX fiber into a 10/100/1000Base-T copper to extend the network distance longer. This Ethernet media converter features AutoCross™ and Link Pass through technology. While the twisted pair ports on converter automatically detect the correct MDI or MDI-X configuration and monitors the loss of signal in fiber and copper ports..Media converter is an integration and conversion solutions for half and full-duplex environments.Dimensions: 1"H x 3.3"W x 4.8"D.Comes in black color.Interface: One RJ-45, one female SC.Fiber mode: Multi-mode fiber (MMF).Supports data transfer rate up to 1 Gbps and features diltering addresses of 8K entries.Connectivity technology: Wired, Operating distance: 721.78'.Wavelength: 850 nm, Indicators: Link/activity, port duplex mode, port transmission speed, power.Supports 50/125um, 62.5/125um standard optical fiber/twisted pair media for data transmission using Gigabit Ethernet technology.Power: 2.2 W consumption, Form Factor: Desktop, rack-mountable, rail-mountable, wall mountable.Features indicators for auto-negotiation, AutoCross, built-in DIP switch, energy efficient Ethernet, far end fault and half duplex mode.Offers jumbo frames support and link pass-through for reliable data transfer.Secures data from external sources of noise and interference and improves network performance.Meets RoHS and WEEE standards.Weight: 8.8 oz..Comes with lifetime warranty

SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with-48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities. In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset. )The PoE converter is fully compatible with devices that comply with the IEEE802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI..Total Number of Ports: 2.Network (RJ-45): Yes.DVI: No

The Transition Networks® M-MCR-01 18-slot powered chassis is perfect for non-hardened mini media converters. It is suitable for enterprise networks, higher education or corporate campus, physical security, surveillance and government agency networks. The chassis has an input voltage of 100 - 240 VAC, 1.6 A, 50 - 60 Hz, 3 pole AC inlet IEC320-C14 and output voltage of 12 VDC, 5 A, Meanwell GST60A12-P1J. It provides modular, centralized and high-density media conversion..18-slot powered chassis is perfect for enterprise networks, higher education, physical security & surveillance, government agency networks.Dimensions: 2.62"H x 17.3"W x 12"D.Compatible with Non-hardened mini media converters.Power supply: Input: 100 - 240 VAC, 1.6 A, 50 - 60 Hz, 3 pole AC inlet IEC320-C14, output: 12 VDC, 5 A, Meanwell GST60A12-P1J, 60 W power supply.Status LEDs: Power: LED on power supply, ON = Lit for normal operation.19" rack mountable powered chassis.Provides modular, centralized, high density media conversion.Temperature: 0 to 50 deg C operating, -40 to 85 deg C storage, humidity: 5 - 95% (non-condensing).Meets UL, cUL, CE standards.Weight: 7.4 lbs..Comes with lifetime warranty.Black

The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment.  Deploying fiber into today's networks provides the ability to transmit data over significantly longer distances than is possible on copper.  Fiber also protects your data from external sources of noise and interference, improving network performance..Total Number of Ports: 2.Network (RJ-45): Yes.DVI: No

The Transition Networks® 2-port RJ-45 to SC mini Gigabit Ethernet media converter is perfect for integrating fiber optic cabling into a 10/100/1000 UTP environment. It features unit and port LEDs for status information. This converter supports auto-negotiation, fixed link pass through and automatic link restoration for efficient troubleshooting. The AutoCross™ feature in this media converter automatically detects and configures the twisted pair port to the correct MDI or MDI-X configuration..Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment.Dimensions: 0.85"H x 1.8"W x 3.3"D.Suitable for use with PC.Comes in black color.Interfaces/ports: One 10/100/1000Base-T RJ-45, one multi mode SC.Power supply: Unit accepts 5 - 28 VDC wall mount AC adapter - 12 VDC 400 mA, Consumption: 3.15 W.LEDs: PWR (power) - (below RJ-45) ON = lit for normal operation, FX-link/act (fiber link/activity) - (upper left on RJ-45), ON = link.IEEE standards: IEEE 802.3.Frame size: 1632 bytes untagged, 1628 bytes tagged.Features auto-MDI/MDIX, auto-negotiation, automatic link restoration, fixed link pass through and space saving design.Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing.Meets UL, CSA, CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark certifications and standards.Weight: 2 lbs..Comes with lifetime warranty

The Transition Networks® SBFTF1013-105-NA 2-port RJ-45 to SC standalone fast Ethernet media/rate converter extends network distance up to 120 Km. It features auto-negotiation for automatic configuration to achieve the best mode of operation over a link and AutoCross™ that automatically detects/configures the twisted pair port to the correct MDI or MDI-X configuration. It supports link pass-through and far end fault for efficient troubleshooting..Stand-alone media/rate converter allows users to integrate fiber optic cabling into 10/100Base-TX copper environments.Dimensions: 1"H x 3.25"W x 4.8"D.Suitable for use with PC.Comes in black color.Interfaces/ports: One 10Base-T or 100Base-TX RJ-45, one multi mode SC.Power supply: External AC/DC, 12 VDC, 0.8 A min.LEDs: PWR (power), FD (fiber duplex), LNK/ACT, CD (copper duplex).Data rates: 10 Mbps, 100 Mbps (layer 2).IEEE standards: IEEE 802.3, Switches: Auto-negotiation on/off, half or full-duplex with auto-negotiation off, 10/100 Mbps with auto-negotiation off.Packet size: 2044 bytes untagged, 2048 bytes tagged, RAM buffer: 512KB.Maximum distance supported: 1.24 mile.Features auto-MDI/MDIX, auto-negotiation, link pass through and far-end-fault (FEF) detection.Temperature: 0 - 50 deg C operating, Humidity: 5 - 90 percent non-condensing.Meets UL, FCC Class A, VCCI Class 1, CISPR22/EN55022, Class A, EN55024, EN61000, CE Mark certifications and standards.Weight: 2 lbs..Comes with lifetime warranty

The Transition Networks® 2-port RJ-45 to SC mini Gigabit Ethernet media converter is perfect for integrating fiber optic cabling into a 10/100/1000 UTP environment. It features unit and port LEDs for status information. This converter supports auto-negotiation, fixed link pass through and automatic link restoration for efficient troubleshooting. The AutoCross™ feature in this converter automatically detects and configures the twisted pair port to the correct MDI or MDI-X configuration..Mini Gigabit Ethernet media converter is a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment.Dimensions: 0.85"H x 1.8"W x 3.3"D.Suitable for use with PC.Comes in black color.Interfaces/ports: One 10/100/1000Base-T RJ-45, one single mode SC.Power supply: Unit accepts 5 - 28 VDC wall mount AC adapter - 12 VDC 400 mA, Consumption: 3.15 W.LEDs: PWR (power) - (below RJ-45) ON = lit for normal operation, FX-link/act (fiber link/activity) - (upper left on RJ-45), ON = link.IEEE standards: IEEE 802.3.Frame size: 1632 bytes untagged, 1628 bytes tagged.Maximum distance supported: 6.21 mile.Features auto-MDI/MDIX, auto-negotiation, automatic link restoration, fixed link pass through and space saving design.Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing.Meets UL, CSA, CISPR22/EN55022 Class A + EN55024, EN60950 Class A, FCC Class A, CE Mark certifications and standards.Weight: 2 lbs..Comes with lifetime warranty

The Transition Networks® M/E-PSW-FX-02-NA mini fast Ethernet transceiver/media converter offers entry-level media conversion of 10/100Base-TX to 100Base-FX covering 2 km over MM(ST) at 1300 nm. This media converter offers easy deployment with its fixed configuration. The plug-and-play convenience helps you in expanding your network connections. This converter features auto-negotiation, auto-MDI/MDIX and automatic link restoration. The unit and port LED allows you to access the network status information..Dimensions: 0.85"H x 1.8"W x 3.3"D.Interfaces/ports: 1 x 10/100Base-TX (RJ-45), 1 x 100Base-FX.Media type supported: Multimode fixed full-duplex on fiber.Ethernet technology: Fast Ethernet.Data transfer rate: 100 Mbps, Wavelength: 1300 nm.Maximum transfer distance: 100 m/2 km.Form factor: Wall mountable, external.Wired connectivity.Temperature: 0 to 50 deg C (operating), -15 to 65 deg C (storage), humidity: 5 to 95 % (non-condensing).DC input: 12 VDC, power consumption: 2.6 W.Unit and port LEDs allow for quick status information, connect to legacy network equipment.Auto-negotiation, auto-MDI/MDIX.Automatic link restoration, far-end-fault (FEF), eliminate collision domains.Meets UL Listed, cUL Listed (Canada), FCC Class A, CISPR22/EN55022, Class A, EN55024, CE Mark standards.Weight: 2 lbs..Comes with lifetime warranty

The Transition Networks® M/GE-PSW-SFP-01-NA mini GbE media converter provides cost-effective and entry level media conversion of 10/100/1000Base-T stand alone copper connection to 1000Base-X fiber connections. This hot swappable media converter has dual speed SFP port that supports autosensing 100 m or 1000 m SFP transceivers. The LEDs of the converter provide quick status information. This converter features auto-negotiation, auto-MDI/MDIX, automatic link restoration and fixed full duplex on fiber..Media converter provides cost-effective and entry level media conversion.Dimensions: 0.85"H x 1.8"W x 3.3"D.Comes in black color.Interfaces/ports: 1 x 10/100/1000Base-T RJ-45 to 100/1000Base-X SFP slot.Ethernet technology: Gigabit Ethernet.Power supply: Input: 4.5 VDC - 14 VDC, external AC/DC required, 12 VDC, 0.5 A, consumption: 2.4 W.Status LEDs: PWR (power) below RJ-45: On = Power, FX-link/act upper Left on RJ-45: On = link, TX-link/act upper right on RJ-45: On = link.Auto-negotiation, fixed full-duplex on fiber, auto-MDI/MDIX.Automatic link restoration, jumbo frame up to 10240 bytes.Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, humidity: 5 - 95% (non-condensing).Meets safety: Wall mount power supply, UL, cUL (Canada), FCC class A, CISPR22/EN55022 class A, EN55024, CE Mark standards.Weight: 2 lbs..Comes with lifetime warranty.Mini gigabit Ethernet media converter provides a cost-effective method for integrating fiber optic cabling into a 10/100/1000 UTP environment.

The Transition Networks M/GE-ISW series is a hardened Gigabit Ethernet mini media converter that provides cost-effective media conversion between 10/100/1000Base-T RJ-45 port and 100/1000Base-X open SFP slot for hardened or outdoor environments. With its supported operating temperature range of -40 degree Celcius to +75 degree Celcius, the mini converter offers a space-saving alternative for converting copper to fiber in extreme environments..Mini Gigabit Ethernet media converter provides simple and cost-effective integration of copper and fiber equipment.Dimensions: 0.85"H x 1.8"W x 3.3"D.Comes in black.Interfaces: 1 x RJ-45 10/100/1000Base-T, 1 x SFP 100/1000Base-X.Features auto MDI/MDIX, copper and fiber auto-negotiation.Supports fixed full-duplex operation on the fiber port.Offers jumbo frame (up to 10240 bytes) support and active link pass-through for reliable data transfer.Unit and port LEDs allow for quick status information.Supports DC and AC input power via terminal block.Provides overload current and reverse polarity protection.Can be mounted with an included DIN rail clip and Velcro or wall mount bracket (sold separately).Meets or exceeds FCC Class A standard.Lifetime manufacturer limited warranty

The Transition Networks® 4-Slot media converter rack mount shelf in black, is designed to mount up to 4 stand-alone devices in a 1RU. It includes 3-slot banks and four convertor mounting brackets. This 19" rack mountable shelf cleans up all stand-alone media converter installations. The space saving design allows to safely mount converters to the shelf. It holds the power supply which in tern minimizes the strain on the power connections. The power cord tie assists to overcome the accidental disconnection of power supplies from the media converters..4-slot media converter rack mount shelf avoids the accidental disconnection of power supplies from the media converters.Dimensions: 1 3/4" x 19" x 14".Color: Black.Clean up your stand-alone media converter installations with this 19" rack mountable shelf.Rack mount up to 4 stand-alone devices in a 1RU unpowered shelf.Space saving design: Save rack space in low density deployments.Flexible: Mix and match up to 4 transition networks stand-alone media converters.Securely mounts the converters to the shelf.Non-powered design: Low cost design allows the use of the power supplies that ship with the media converter.Shelf is deep enough to hold the power supply, helping to reduce the strain on the power connections.Power cord tie-downs: Help to eliminate the accidental disconnection of power supplies from the media converters.Includes 3-slot banks and four mounting brackets.Weight: 4.6 lbs..Comes with lifetime warranty

The S4110 is a stand-alone fiber to fiber media converter. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ slots. This allows network managers to customize the S4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ ports support a wide variety of Transition Networks 10GE SFP+ fiber modules. This any-rate to same- rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications..Fiber to fiber repeater.Supports data rates from 1Gbps to 11.5Gbps.Support any-rate to same-rate.Up to 100,000:1 contrast ratio

The Transition Networks® 1-port RJ-45 to SFP standalone Gigabit Ethernet media converter is perfect for business and mobile backhaul applications. It has 10/100/1000BT to 1000B-X SFP expansion slot and supports up to a distance of 328.08'..Stand-alone Gigabit Ethernet remotely managed media converter is ideal for business and mobile backhaul applications.Dimensions: 1"H x 3 1/4"W x 6 1/2"D.Comes in black color.Interfaces/ports: One 10/100/1000Base-T RJ-45, one SFP slot, USB.Power supply: input: 100 - 240 VAC, 1 A, output: 12 VDC, 1.25 A.Data rates: 10/100/1000 Mbps (copper), 1000 Mbps (fiber).Form factor: External.IEEE standards: IEEE 802.3, 802.3ah, 802.1P, 802.1Q.Frame size: 10240 byte jumbo frames, MAC addresses: 8K.Maximum distance supported: 328.08'.Features two selectable remote management modes, auto-MDI/MDIX, auto-negotiation, pause, link pass through, far-end-fault and remote loopback.Temperature: 0 - 50 deg C operating, -25 - 85 deg C storage, Humidity: 5 - 95 percent non-condensing.Meets EN55022 Class A, EN55024, UL60950, CE Mark certifications and standards.Weight: 2 lbs..Comes with lifetime warranty

The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential..Auto-Negotiation.Auto-MDI/MDIX.Automatic Link Restoration

The Transition Networks® SGFEB1040-130-NA 1-port RJ-45 to SFP standalone fast Ethernet media/rate converter features auto negotiation, autocross, link pass through, far end fault and remote fault detect for efficient troubleshooting. It supports multimode or single mode fiber and IEEE802.3az Ethernet. This converter offers data rate of 10/100/1000 Mbps for copper and 1000 Mbps for fiber..Stand-alone media/rate converter is a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment.Dimensions: 1"H x 3.25"W x 4.8"D.Suitable for use with PC.Comes in black color.Interfaces/ports: One 10/100/1000Base-T RJ-45, one 100/1000Base-X SFP slot.Power supply: 7.5 - 24 VDC, provided by wide input AC wall mount adapter, Consumption: 2.2 W.LEDs: PWR (power), LACT (fiber link/activity), RJ-45 upper left (green/amber), RJ-45 upper right (speed).Data rates: 10/100/1000 Mbps (copper), 1000Mbps, 100Mbps also supported via SFP port (fiber).Form factor: Rack-mountable, wall mountable, rail-mountable, desktop.IEEE standards: IEEE 802.3, 802.3ab, 802.3u, 802.3z, 802.3az, Switches: Auto-negotiation enable/disable, link pass through enable/disable.Frame size: 10260 byte jumbo frames, RAM buffer: 512KB, MAC addresses: 8K.Features auto-MDI/MDIX, auto-negotiation, link pass through, far-end-fault (FEF) detection and remote fault detect.Temperature: 0 - 50 deg C operating, -15 - 65 deg C storage, Humidity: 5 - 95 percent non-condensing.Meets EN55022 Class A, EN55024, FCC Class A, CE Mark, UL, UL60950, CSA certifications and standards.Weight: 2 lbs..Comes with lifetime warranty

SPOEB10xx-105 is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. Transition Networks' AC powered PoE media converters combine data received over a fiber optic link with -48 VDC power; providing power to Data Terminal Equipment (DTE) Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power Sourcing Equipment (PSE) and are fully compatible with Powered Devices (PD) that comply with the IEEE 802.3af: 2003 standard. The converters also include a PD signature sensing and power monitoring features per the IEEE 802.3af standard. Other features include Over-Current Protection, Under-Current Detection and Fault Protection Input. This feature enhanced model offers the ability to enable/disable many of the features as well as force port capabilities. In addition, with the PSE/LPT switch enabled, a loss of Fiber RX will disable PSE power output on the UTP port for 2 seconds to allow remote device to re-initialize. (Also known as Powered Device Reset.) The PoE converter is fully compatible with devices that comply with the IEEE 802.3af standard. The PoE converter is capable of inserting power on data pairs or spare pair of the MDI..Expand your network capabilities with this 2 transceiver/media converter.Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances.With 10 /100 Base-TX technology get up to 100 Mbps data transfer rate over optical fiber cable.With Wall mounting feature, you can conveniently install the device while keeping the wires and cables organized

The SGFEB provides a cost effective method for integrating 1000Base-SX/LX fiber into a 10/100/1000Base-T copper environment. Deploying fiber into today's networks provides the ability to transmit data over significantly longer distances than is possible on copper. Fiber also protects your data from external sources of noise and interference, improving network performance..Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter.Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances.With 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over optical fiber cable

The SGPAT10xx-105 is a 10/100/1000Base-T to 1000Base-SX/LX Gigabit Ethernet Media Converter, which easily and affordably facilitates the connection between different types of network cabling, while also injecting PoE+ power through the copper RJ-45 port. Being a Power Sourcing Equipment (PSE) device, the SGPAT media converter combines data received over a fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over twisted pair cabling while complying with the IEEE 802.3at PoE+ standard, which is also backwards compatible with the IEEE 802.3af PoE standard. The converter is available in 2-port, 3-port, and 4-port versions and includes PD signature sensing and power monitoring features. Other features include over-current protection, under-current protection, and fault protection input. Active Link Pass Through (ALPT) is supported, which is an automatically activated version of Link Pass Through (LPT) that allows the converter to detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices, preventing the media converter from isolating those link failures. During a Link Pass Through event, the Auto Power Reset feature will re-set the power to the end PD device, ensuring it is ready to go when the LPT event is corrected..Wall mount, DIN Rail, or table top installation.External AC/DC power supply included with country specific power cord.2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port.Supports full 30 Watts of power to each twisted pair port.Various fiber versions available supporting fixed SC, fixed LC, and open SFP slots
