PCI Express to USB Adapter
10 results
Startech.comĀ® 2 Port PCI express super speed USB 3.0 card adapter comes with an optional SATA power connector to deliver up to 900 mA of power per port. Card adapter includes a cable that can extend up to a distance 9.8' for easy access..1 - PCI Express x1 male.At the same peak in testing, UASP also showed up to an 80 % reduction in required processor resources.9.8'.Dimensions: 4.7"(H) x 2.6"(W) x 0.7"(D).Interface/ports: 2 x USB 3.0 A Female, 1 - SATA Power (15 pin) Plug.Form factor: Plug-in card.Hardware: Standard Profile (LP bracket incl.) card type, NEC - MicroPD720202 Chipset ID,.Temperature: 5 - 50 deg C (operating), -25 - 70 deg C (storage), Humidity: 20 - 80 % RH.Data transfer rate: 5 Gbps, Type and rate: USB 3.0 - 5 Gbit/s.Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system.Expand the USB capabilities of your system with two additional external ports, upgrade an older PCIe-based system from USB 2.0 to USB 3.0 connectivity.For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure.Using a more efficient protocol than the traditional USB BOT, UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data-transfers.Includes 1 x PCI express USB 3.0 card, 1 x low profile bracket, 1 x driver CD, instruction manual.Compatibility: Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) Windows Server 2012, 2008 R2, 2003(32/64) Linux 2.6.31 or later.Weight: 1.4 oz..Warranty: 2 years limited.Startech.comĀ® 2 Port PCI express super speed USB 3.0 card adapter supports a maximum data transfer rate up 5 Gb/s to increases the efficiency and is compatible with PC as well as Linux platform.

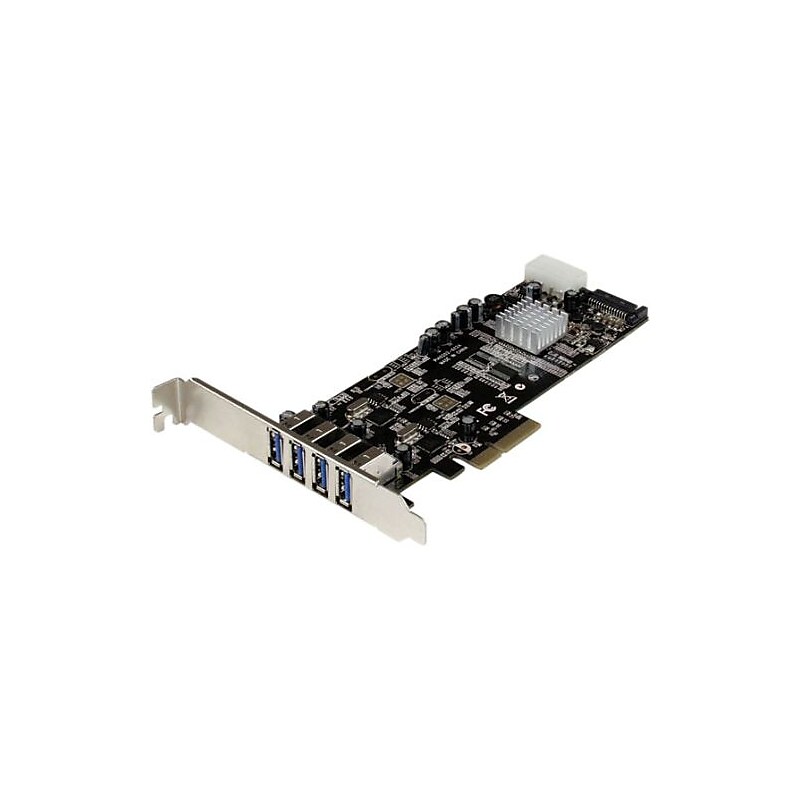

Startech.comĀ® 4 Port dual bus super speed USB 3.0 card adapter increases the efficiency of your device with two dedicated bus channels. Adapter is enhanced with UASP support and includes USB attached SCSI protocol..PCI express x4.Dimensions: 2.2"(H) x 0.6"(W) x 6.6"(L), cable length: 9.8'.Form factor: Plug-in card.Chipset ID: 2 x Renesas/NEC - Micro PD720202, Port style: Integrated on card, No. of ports: 4.Connector type: 1 x PCI express x 4 male, External ports: 4 x USB 3.0 A (9-pin, superspeed) female, Internal ports: 1 x LP4 (4-pin, molex large drive power) female, 1 x SATA power (15-pin) plug.Maximum data transfer rate: 5Gbps/2 ports.OS compatibility: WindowsĀ® 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64), WindowsĀ® server 2012, 2008 R2, 2003 (32/64), Linux Kernel 2.6.31 or later.System requirements: Available PCI express x4 or greater slot.Operating temperature: 0 - 50 deg C, Storage temperature: -20 - 60 deg C, humidity: 5 - 85% RH.Optional LP4 or SATA power connector provides up to 900 mA per USB port.Backward-compatible with USB 2.0 and USB 1.0/1.1 devices.Hot-swap feature to connect/disconnect devices without powering down the system.UASP support across all four ports.Supports USB battery charging specification 1.2 (Apple mode only).Includes 1 x 4 port PCIe USB card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual.Certifications & standards: WEEE, RoHS, Green Compliant.Weight: 3.2 oz..Warranty: 2 years limited.Startech.comĀ® 4 Port dual bus super speed USB 3.0 card adapter supports up to 10GBps total transfer bandwidth and delivers up to 900 am of power per port.
Startech.comĀ® Port PCI express superspeed USB 3.0 card adapter comes with an optional LP4 power connector to connect to your system power supply. Adapter expands the USB capabilities of your system with two extra external ports..1 x PCI express interface.Data transfer rate: 5Gbps.Ports: 2 x USB 3.0 (9-pin) female external-port, 1 x LP4 (4-pin) male internal-port.Form factor: Plug-in card.Connectivity technology: Wired.Dimension: 4.7"(H) x 0.7"(W) x 3.2"(L).Maximum cable length: 9.8'.Operating system: Windows 8/7/Vista/XP (32/64bit), WindowsĀ® Server 2012, 2008 R2, 2003 (32/64), Linux Kernel 2.6.31 or later.Platform supported: PC.Optional LP4 power connector provides up-to 900mA per USB port.Connect additional external hard drives, CD/DVD drives, MP3 players, printers, scanners, webcams, game controllers, digital cameras, etc. to a computer system.Fits into full or low-profile/small form factor (SFF) systems, with a dual-profile design.Improved performance with UASP support.Includes PCIe USB 3.0 card, low-profile bracket, driver CD, instruction manual.Certifications and standards: CE, FCC, RoHS.Weight: 1.8 oz..Warranty: 2 years limited.Startech.comĀ® Port PCI express superspeed USB 3.0 card adapter has data transfer speeds of up to 5Gb/s and delivers powers of up to 900 mA to USB 3.0 bus-powered devices.
The QNAP USB 3.2 Gen 2 Expansion Card provides speeds of up to 10Gbps - double that of USB 3.2 Gen 1 - to greatly boost data transfer speeds. With two ports, the QNAP USB 3.2 Gen 2 Expansion Card provides compatibility with newer, faster USB 3.2 Gen 2 devices to accelerate file transfers and backup. The QNAP USB 3.2 Gen 2 Expansion Card can be installed in either a QNAP NAS or WindowsĀ®/UbuntuĀ® PC. Dual-port USB 3.2 Gen 2 Type-A connectivity. Both ports provide up to 10 Gbps data transfer speeds and are backwards compatible with previous-generation USB devices. Supports USB Attached SCSI Protocol (UASP) to provide convenient fast file sharing and intensive data transfer. Uses advanced low-power processes, following standard PCIe/USB bus Power Management to reduce power consumption. Supports overcurrent detection and short circuit protection. Supports Windows 8.x / 10 (32/64-bit) and Ubuntu desktop 20.04 LTS. No driver is required..Provides 2 USB ports for responsive and expanded device connections.USB Adapter provides a larger firewall capacity for your PC.Ensures reliable performance for everyday use
Startech.comĀ® 4 Port quad bus super speed USB 3.0 card adapter increases the efficiency of your device with four dedicated bus channels. Adapter is enhanced with UASP support and includes USB attached SCSI protocol..PCI express x4.Dimensions: 2.2"(H) x 0.6"(W) x 6.6"(L), cable length: 9.8'.Form factor: Plug-in card.Chipset ID: 4 x Renesas/NEC - Micro PD720202, Port style: Integrated on card, No. of ports: 4.Connector type: 1 x PCI express x 4 male, External ports: 4 x USB 3.0 A (9-pin, superspeed) female, Internal ports: 1 x LP4 (4-pin, molex large drive power) female, 1 x SATA power (15-pin) plug.Maximum data transfer rate: 5Gbps/2 ports.OS compatibility: WindowsĀ® 8 (32/64), 7 (32/64), Vista (32/64), XP (32/64), WindowsĀ® server 2012, 2008 R2, 2003 (32/64), Linux Kernel 2.6.31 or later.System requirements: Available PCI express x4 or greater slot.Operating temperature: 0 - 50 deg C, Storage temperature: -20 - 60 deg C, humidity: 5 - 85% RH.Optional LP4 or SATA power connector provides up to 900mA per USB port.Backward-compatible with USB 2.0 and USB 1.0/1.1 devices.Hot-swap feature to connect/disconnect devices without powering down the system.UASP support across all four ports.Supports USB battery charging specification 1.2 (Apple mode only).Includes 1 x 4 port PCIe USB card, 1 x low-profile bracket, 1 x driver CD, 1 x instruction manual.Certifications & standards: WEEE, RoHS, Green Compliant.Weight: 3.2 oz..Warranty: 2 years limited.first page out in as fast as 55 sec black, 68 sec color.125 GB memory.80 inch color LCD with touchscreen.One-year, next-business day, onsite warranty.USB cable not included.1/Each.Startech.comĀ® 4 Port quad bus super speed USB 3.0 card adapter supports up to 20GBps total transfer bandwidth and delivers up to 900 am of power per port.
StarTech.com PEXUSB3S7 PCI express USB 3.0 card allows you to extend your system capabilities by adding seven USB 3.0 ports. It has a unique dual-profile design. It features a SATA power connector with up to 900mA per port for high-power USB devices..Number of ports: 7.Internal ports: 1 SATA power (15 pin) plug and 1 USB 3.0 A female.Maximum data transfer rate: 5Gbps.External ports: 6 USB 3.0 A female.Host interface: PCI express 2.0 x1.USB standard: 3.0.The package content includes a 7-port PCI express USB 3.0 card - standard and low-profile design, 1 low-profile bracket, 1 driver CD and 1 instruction manual.Features native Windows 8.1 and 8 and Linux kernel 2.6.31 for easy driver installation and unique dual-profile design.2 year warranty.StarTech.com PEXUSB3S7 PCI express USB 3.0 card allows you to extend your system capabilities by adding seven USB 3.0 ports. It is supported by Windows 8.1 and 8, Linux kernel 2.6.31, and other operating systems.

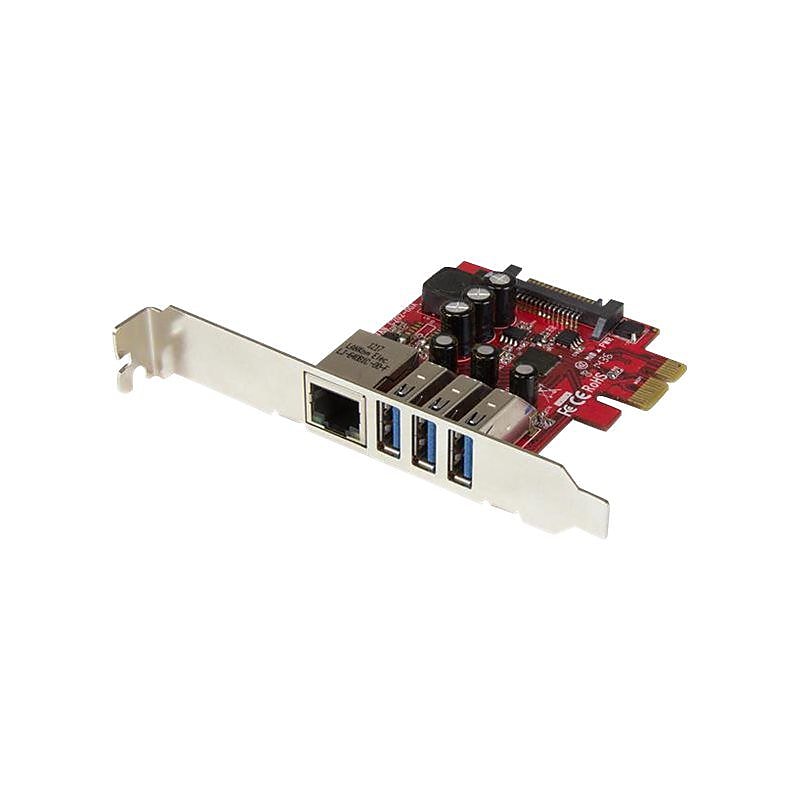

Running low on expansion slots? Merge USB 3.0 and GbE into a single PCIe combo card - 3 Port PCI Express USB 3.0 Card + Gigabit Ethernet - Installation flexibility to fit standard & low-profile PCs - Frees up a PCIe slot by consolidating 3x USB 3.0 & 1x Gigabit Ethernet into a single card - UASP Support - Optional SATA Power - Save money and connect existing devices with USB 2.0 and 1.x backward compatibility - USB 3 with Network Adapter Card.Frees up a PCIe slot by consolidating 3x USB 3.0 & 1x Gigabit Ethernet ports into a single card.Provides installation flexability for standard and low-profile computers, with a dual-profile design.Lets you save money and connect your existing devices with USB 2.0 and 1.x backward compatibility.Perfect for high-powered USB devices, with optional SATA power providing up to 900mA per port.PCIe x1 interface, compliant with PCI Express 2.0 specifications.Supports Wake-On-LAN, Energy-Efficient Ethernet, jumbo frames, full duplex flow control, VLAN tagging, and layer 2 priority encoding
The PEXUSB3S4V PCI express USB 3.0 Card (with SATA power) adds 4 external USB 3.0 ports to any PCI express-enabled computer system..PCI Express x1.Plug-in Card.4 USB Port(s).Form factor: Low profile plug in card.Platform supported: PC.Number of ports: 4.Operating systems: Windows XP (32/64 bit), Server 2003 (32/64 bit), Server 2008 R2, vista (32/64 bit), 7, (32/64 bit), 8 (32/64 bit).Card type: Standard profile.Chipset ID: NEC uPD720201.Connector type: 1 - PCI express x 1 male.Operating temperature: 5 to 50 deg C.Dimensions: 2.7"(H) x 0.7"(W) x 3"(L), 700 mil thickness.Internal ports: 1 - SATA power (15 pin) plug, external ports: 4 - USB 3.0 A (9 pin, superspeed) female.Optionally provides up to 900mA per USB port.Backward compatible with USB 2.0 and USB 1.0/1.1 devices.System and cable requirements: PCI express expansion slot.Package contents: 1 x PCI express USB 3.0 card, 1 x low profile bracket, 1 x driver CD, 1 x instruction manual.Weight: 1.6 oz..Certification and standards: Green compliant, ROHS, CE, FCC.Warranty: 2 years limited.StarTech.com Four-Port PCIe USB 3.0 Adapter Card - High Speed, Low Profile
Adds three USB 3.0 ports and one Gigabit Ethernet port to your PCIe enabled desktop computer Adds three USB 3.0 ports and one Gigabit Ethernet (RJ45) port through an available PCI Express slot Supports USB data transfer rates up to 5Gb/s shared among the 3 USB ports, and backward compatible with USB 2.0/1.1 devices Provides reliable wired network connection with speeds up to 1000Mbps Supports UASP (USB Attached SCSI Protocol), dramatically increases data transfer speed when used with UASP supported storage enclosures with SSD media Note : Windows 10 and 8 have built in UASP support using their embedded USB 3.0 drivers only Each USB 3.0 port provides power output up to 5V/900mA Multi-port feature allows connecting up to 3 USB devices simultaneously avoiding frequent swapping in and out of your devices..Offers additional 3 USB ports to the existing USB systems.USB/Ethernet Combo Hub provides a larger firewall capacity for your PC.Ensures reliable performance for everyday use
When compared to a laptop, a desktop computer offers several advantages, perhaps the most important is that you can continue to upgrade it over time. So adding more USB ports is a viable option. This is particularly true for someone who needs more and better peripherals, such as gamers or YouTubers who require multiple USB-enabled devices connected at once..4-Port PCIe Host Card.Dimensions: 0.79" x 2.68" x 3.35".Transfer speeds for data 5Gbps.Warranty: 2 Years Limited.Reproductive Harm - www.P65Warnings.ca.gov.
