Cat 5 Cable Testers

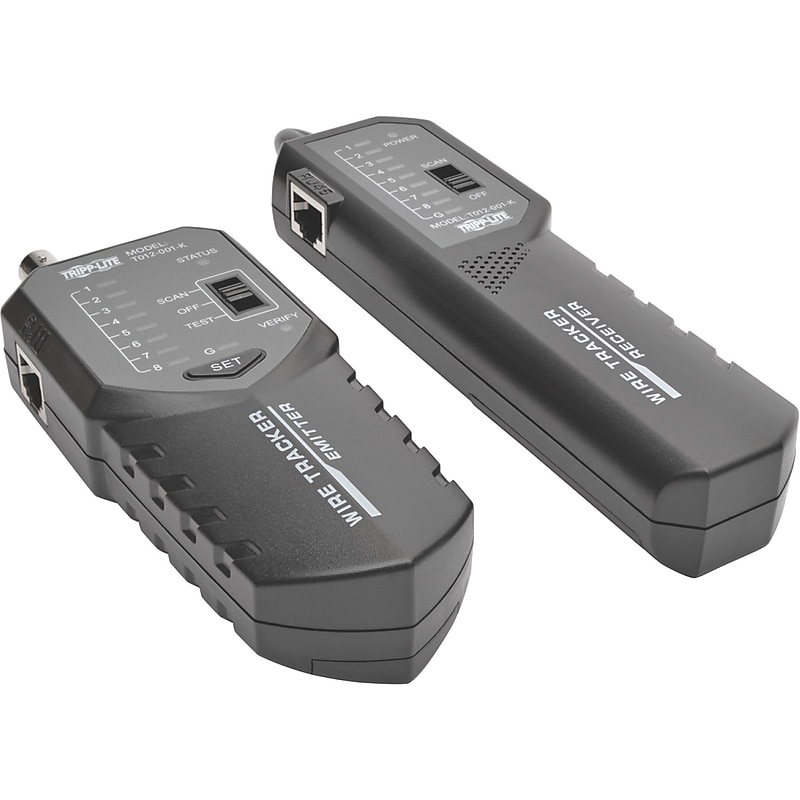

The Tripp Lite T012-001-K multi-function cable tester in gray color, includes wire tracker and tone generator for tracking cable, locating a short or breakage in a non-powered wires and mapping RJ45 wire. It has LED flashlight on remote probe unit for poking around dark areas, headset for working in noisy area and volume control button for fine tune. It has 9V batteries and is suitable for cable installers working in telecom or LAN environments..Multi-function cable tester comes with wire tracker and tone generator.Interface: Network (RJ-45).Battery size: 9V, number of batteries supported: 2.Media type supported: Twisted pair, optical fiber, coaxial.Device function: Cable signal testing, cable tracing, LAN cable testing, optical power testing, short circuit testing, open circuit testing, wiremap.Device function: Coaxial cable testing, network testing.Essential tool for telecom/LAN personnel: Find RJ-11, RJ-45 cable among group of cables, find short or breakage in non-powered wires.Perform wire mapping on RJ-45 cables, detecting shorts and open wires.LED flashlight for poking around dark areas, headphones for working in noisy environments.Volume control for fine-tuning the tone generator, powered by included 9V batteries, stores away in convenient carrying case.Includes main tester, remote probe unit, RJ-45/RJ-11 jumper cable, alligator clip adapter, headphones, 2 x 9 V batteries, carrying case, owner manual.Green, RoHS compliant.Comes with 1 year limited warranty

The Fluke LinkIQ cable+network tester is the solution to verify cable performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensure that tested links meet performance requirements. LinkIQ also performs ping tests to verify connectivity and provides nearest switch diagnostics including advertised data rate, switch name, IP address, port number and VLAN information, plus PoE testing and load test up to Class 8 (90 W). Ethernet Alliance PoE Certified for reliable multivendor interoperability. Additional features include: Cable Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC. Includes LinkIQ main unit, remote ID #1-7, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, IntelliTone(TM) Pro 200 Probe, and duffel bag carrying case..This cable and network tester is the solution to verify cable performance up to 10G and solve network connectivity problems.Includes Remote ID #1-7, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, IntelliTone Pro 200 Probe, and duffel bag carrying case.Works on a 3.6V 6400mAh lithium-ion battery.Host interface: USB Type-C.Validate cable performance up to 10GBASE-T via frequency-based measurements.Get connected switch data rate, switch name, IP address, port number, and VLAN.Detect the PoE class (1-8) and power, and perform a load test.Test connectivity to TCP/IP network through IP configuration and ping.Cable diagnostics including length plus IntelliTone, remotes 2-8.Manage results and print reports from LinkWare PC

The Fluke LinkIQ is capable of measuring lengths up to 1000' and provides distance to faults such as opens, shorts, and unterminated cable. The included MS-IE remote adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables. The LinkIQ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols, performs ping tests to verify connectivity and also provides nearest switch diagnostics including advertised data rate, switch name and port number and VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability. Includes LinkIQ main unit, Remote ID #1-7, IntelliTone Pro 200 Probe, RJ45-RJ45 patch cord (M-F), RJ45-RJ45 patch cord (M-F), Quick Reference Guide, AC charger, RJ45/11 universal coupler, RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord, RJ45/11 modular adapter, hanging strap with remote ID holder, and duffle bag carry case..This cable and network tester is capable of measuring lengths up to 1000' and providing distance to fault analysis (opens, shorts, and unterminated cable).Includes remote ID, RJ45-RJ45 patch cord, RJ45-RJ45 patch cord (M-F), AC charger, RJ45/11 universal coupler, RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord, RJ45/11 modular adapter.Works on a 3.6V 6400mAh lithium-ion battery.Host interface: USB Type-C.Validate EtherNet/IP, PROFINET, EtherCAT cable performance up to 10GBASE-T.Get connected switch data rate, name, IP address, port number, and VLAN.Detect the PoE class (1-8) and power, and perform a load test.Test connectivity to TCP/IP network through IP configuration and ping.Cable diagnostics including length plus IntelliTone, remotes 2-8.Manage results and print reports from LinkWare PC

The DSX Cable Analyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you'll be. Unfortunately, there are a lot of things that slow the process down - setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand. As part of the Versiv cabling certification product family, the DSX Cable Analyzer Series copper cable certifiers provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It's not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects..Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection.Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards.ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly.Taptive user interface simplifies set-up, and eliminates errors.Analyze test results and create professional test reports using LinkWare management software

The MicroScanner PoE cable verifier validates and troubleshoots your Industrial Ethernet copper cabling, helping to reduce down time in time-sensitive industrial networks. It performs continuity tests on all wires in a few seconds and displays the results graphically, so you can see opens, shorts, and crossed wires. The MicroScanner PoE helps make installation, maintenance, and troubleshooting on IT, security, PoE lighting, Ethernet-based HVAC devices, and IP-based building automation systems easier. Its oversized, backlit LCD screen displays clear results in any light or complete dark with intuitive icons and support of Class 0 to 8 PoE..PoE cable verifier validates and troubleshoots your Industrial Ethernet copper cabling, helping to reduce down time in time-sensitive industrial networks.Works on two AA alkaline batteries.Operating temperature: 32-113 degrees Fahrenheit.Reports PoE class (0-8), injector voltage, switch speed up to 10G.Shows wire map, length, cable ID, and distance to fault.Trace cable or wire pairs with the included IntelliTone Pro 200 probe.Includes Remote IDs to determine network layout quickly

MS2-FTK MicroScanner copper and fiber cable verifier kit helps find common errors by displaying graphical wiremap, pair lengths, distance to fault, and far-end device. Integrated RJ11, RJ45, and coax test ports support many types of low-voltage cable testing with no need for adapters. Test and verify your fiber connections with the SimpliFiber Pro power meter and light source..Network copper and fiber test kit measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports.Dimensions: 1.4"H x 3"W x 6.4"D.Comes in black and yellow.Kit includes: MicroScanner cable verifier and SimpliFiber Pro (FTK1000) fiber test kit (SimpliFiber Pro optical power meter, 850/1300 multimode source, magnetic strap attachments, carrying case, and SC power-meter adapter).Test connectors: shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs; MicroScanner2: F-connector for coaxial cable.Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs.Features a monochrome LCD with backlight.MicroScanner solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices.MicroScanner PoE: solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco's Universal Power over Ethernet) compatible PoE devices.MicroScanner2 detects the advertised speed of 802.3 Ethernet ports with speeds of 10Mbps, 100Mbps, and 1Gbps.Verifies media services: 10/100/1000 Ethernet, POTS, and PoE.Tone generator produces 500kHz digital, 400kHz and 1kHz analog tones.Supports toning and cable mapping with a Fluke Networks digital IntelliTone probe

netAlly LinkSprinter 10-second, simple network connectivity test on copper Ethernet links; perfect for frontline/helpdesk staff. Discover the nearest switch name and port information via CDP/LLDP/EDP, and verify link speed/duplex and connectivity to TCP/IP networks. Automate reporting and enable collaboration with test results upload and management via the free Link-Live Cloud Service..10-second, simple network connectivity test on copper Ethernet links.Discover the nearest switch name and port information via CDP/LLDP/EDP, and verify link speed/duplex and connectivity to TCP/IP networks.Automate reporting and enable collaboration with test results upload and management via the free Link-Live Cloud Service.Validate Power-over-Ethernet (PoE) voltage from power sourcing equipment (PSE) according to 802.3af/at standards.View detailed test results, add comments, and run cable tests using your mobile device over a Wi-Fi hotspot

The LinkMaster PRO tester enables installers, contractors and maintenance technicians to map, test and troubleshoot data and voice communication cable and coax runs..Interfaces/ports: 2 x RJ 45.Dimension: 3.3"(H) x 2"(W) x 1.3"(D).Test wiring configuration on UTP and STP.Tests unshielded and shielded modular plugs.Check for shorts, miss wires, reversals and split pairs.Debug feature, automatic shut off and low battery LED indicator.Battery size supported: AA.Designed to test installed twisted pair wiring.Device function: Open circuit testing, short circuit testing, split pair testing.Main unit and remote allow one person testing.Open there is no "open" LED indication, a typical cable may have 2, 3, or 4 pairs, opens are displayed as an unlit LED.User will determine if a pair is present and continuous or OPEN by comparing the illuminated LEDs to the expected number of pairs that should be good.Short - a short circuit condition exists.Split pairs - split pairs occur when the tip (positive conductor) and ring (negative conductor) of two twisted pairs are interchanged.Pass indicators: Four green LEDs on pairs 1 2, 3 6, 4 5, and 7 8. All four pairs are terminated correctly, two green LEDs on pairs 3 6, and 4 5. Both pairs terminated correctly, yowl green LEDs on pairs 1 2, and 3 6. Both pairs terminated correctly.Green shield LED indicates the shield on the cable is correctly and continuously wired through the modular plug termination.Weight: 2 lbs..⚠ WARNING: Cancer and Reproductive Harm - WWW.P65warnings.ca.gov.Ideal LinkMaster PRO - Test Twisted-Pair Wiring

Monoprice® 3-in-1 Tester includes two units like tone generator/cable tester and amplifier probe sensing tip that are made of plastic. Tester is powered by 9 V battery and has a detachable remote terminator for continuous connection of remote wire..3-in-1 tracer/toner/cable tester is a professional tool used to test and troubleshoot RJ45, RJ11, and BNC cables.It can also be used to trace and identify individual wires within a wire bundle or group and can provide talk testing functionality between telephone units.Tester is composed of two main units: the tone generator/cable tester and the amplifier probe with sensing tip.Battery type: Alkaline (amplifier probe/ tone generator/cable tester).Voltage: 9 VDC (amplifier probe/ tone generator/cable tester).Material: Plastic with edges covered in rubber to improve grip.Dimensions: 28 mm(H) x 60.3 mm(W) x 230 mm(L).A detachable remote terminator is used for RJ45 and RJ11 cables to provide the continuity link at the remote end of the cable.Has an auto-off functionality that kicks in after 20 seconds of non-use in all modes except the Toner and Talk Batt mode.Includes tone generator/cable tester w/remote terminator, amplifier probe, BNC adapter, 50 Ohms BNC terminator, BNC M/M 6" jumper cable, belt-clip, Nylon, zippered carrying bag w/front pocket, (2) batteries.Weight: 137.2 g (tone generator/cable tester), 115 g (amplifier probe).Monoprice® 3-in-1 Tester is designed to examine as well as troubleshoot RJ45, RJ11, BNC cables and is used to identify individual wires within a bundle.
