DIN Rail Mounting Brackets
8 results
DIN-rail equipment in a 19-inch server rack/cabinet or wall plate simple, Without wasting space due to special bracket requirements for each piece of equipment..Black.Length: 19".Frame type: Steel.Dimensions: 19"(H) x 14.1"(W) x 3 1/2"(D).Device supported: Rack.U Height: 2U.Additional information: Maximum mounting depth: 222.25 mm.Fits all standard 19" racks, includes three types of DIN rails: top-hat, miniature top-hat, and G-type.Meets ANSI/EIA RS-310-D standards.Occupies 2U of rack space, adjustable depth.Constructed from solid cold press steel.Application: Two ADJDINKIT's can be used in the same U height, facing each other and mounted on both front and back rails.Compatibility: Standard 19" rack.Certifications and standards: EIA-310D, UL, CE.Green compliance certificate/authority: RoHS.Includes 1 x rack mount din rail frame, 1 x adjustable din rail mount with top hat din rail, 1 x mini top hat DIN rail, 1 x G-type DIN rail, 2 x carriage bolt, 2 x wing nut, 4 x plastic washer, 2 x M5 screw, 2 x M5 nut, 1 x installation guide.Warranty: Lifetime.Rail Kit fits all standard 19" racks and includes three types of DIN rails top-hat, miniature top-hat, and G-type.
The Brainboxes MK-070 snap in DIN-rail clip kit allows the device to be mounted in a server rack or any DIN rail fitted equipment rack. This light weight snap on DIN rail kit is compatible with Brainboxes 4 & 8 port Ethernet to serial and USB to serial devices..Snap in DIN-rail clip kit suitable for mounting Brainboxes 4 and 8 port Ethernet to serial and 4 & 8 port USB to serial.Dimensions: 19 mm H x 43 mm W x 10 mm L.Aluminum construction.Simple installation.Light weight.Mounts enclosures to 35 mm and 32 mm wide DIN rails.Certifications and standards: Conforms to IEC International Standard 60715, conforms to European Standard EN 50022.Snap in DIN-rail clip kit suitable for mounting Brainboxes 4 and 8 port Ethernet to serial and 4 & 8 port USB to serial.
This Brainboxes metal mounting clip clicks securely onto 22.5mm deep modular devices. It is useful for mounting Brainboxes ED/SW/ES industrial range products at any orientation flush to a standard 35mm DIN-rail..This metal mounting clip clicks securely onto 22.5mm deep modular devices.Dimensions: 0.59"H x 1.77"W x 0.59"D.Meets or exceeds IEC 60715, EN 50022 standards.Lifetime manufacturer limited warranty
This Brainboxes light weight spring loaded mount can be attached to any modular device for easy DIN rail mounting. Contains: one screw on mount (plastic).This lightweight spring-loaded mount can be attached to any modular device for easy DIN-rail mounting.Mounts enclosures to 35 mm and 32mm wide DIN rails.Contains: one screw on mount (plastic).Dimensions: 1.38"H x 2.68"W x 0.31"D.Meets or exceeds IEC 60715, EN 50022 standards.Lifetime manufacturer limited warranty
DIN Rail-Mounting Kit Compatible with Wide Range of Equipment :This 2U rack-mount DIN kit includes top hat, mini top hat and G-style rails, making it compliant with an array of DIN rail equipment, such as power supplies, bell transformers, terminal strips, programmable time switches and circuit breakers. The adjustable rails can be easily set back to match DIN rail equipment of any depth. Premium Construction Designed to Endure in Busy Rack Applications :The SRDINRAIL2U DIN rail-mounting kit is made from durable cold-rolled steel with a black powder-coated finish that blends seamlessly with your rack dƩcor. It mounts into 2U of space in an EIA-standard 19-inch open frame rack or floor-standing rack enclosure. Rack-mounting hardware is included for quick installation right from the box. 2-Year Warranty and Environmentally Responsible Design: The SRDINRAIL2U comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility..Ideal for DIN equipment, including power supplies, terminal strips and circuit breakers.Compatible with EIA-standard 19 in. open frame racks and floor rack enclosures.Durable cold-rolled steel construction designed to stand up to heavy use over time.Multi-directional reception pattern
This Brainboxes light weight spring loaded mount can be attached to any modular device for easy DIN rail mounting. Contains: one screw on mount (plastic).This lightweight spring-loaded mount can be attached to any modular device for easy DIN-rail mounting.Mounts enclosures to 35 mm and 32mm wide DIN rails.Contains: one screw on mount (plastic).Dimensions: 0.79"H x 3.01"W x 0.31"D.Meets or exceeds IEC 60715, EN 50022 standards.Lifetime manufacturer limited warranty
The Sierra Wireless DIN Rail Mounting Bracket Server Kit is a reliable and professional solution for securely installing your Sierra Wireless LX40 router in industrial or enterprise environments. Designed for DIN rail systems, this black bracket offers a clean and efficient way to mount your device inside server racks, cabinets, or on walls, making it ideal for tight spaces and structured setups. Built with durability in mind, the bracket supports quick installation and removal, helping reduce downtime during maintenance or upgrades. Its compact dimensions and lightweight design ensure it fits seamlessly into existing infrastructure without adding bulk. The kit includes a DIN rail clip (compatible with 35 mm EN 50022 rails) and mounting screws, so you have everything needed for a hassle-free setup. Whether you're deploying LTE routers in smart buildings, manufacturing plants, or remote sites, this bracket ensures your equipment stays securely in place. Itās specifically engineered for the Sierra Wireless AirLink LX40, guaranteeing a perfect fit and optimal performance. Backed by Sierra Wirelessās standard accessory warranty, this mounting kit is a smart investment for professionals who value reliability, efficiency, and clean installations..Designed for DIN rail installations, this bracket securely mounts networking equipment like the Sierra Wireless LX40 router in industrial or enterprise environments.The kit includes a mounting bracket, a DIN rail clip (35 mm EN 50022 standard), and screws for secure attachment.Engineered for quick installation and removal, the bracket ensures a reliable and professional mounting solution for network devices in demanding environments.Specifically designed for the Sierra Wireless AirLink LX40 Enterprise LTE Router, ensuring a perfect fit and optimal performance
You May Also Like
Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series.Rack Rail Bracket Kit.Device Supported: Switch.Compatibility: Cisco Catalyst 9500 Series Switch.Package Content : Brackets, Extension rails.For Cisco Catalyst 9500 Series ā High-End
The QnapĀ® 1U/2U rackmount server mounting rail kit is compatible with TVS-871U-RP, TVS-1271U-RP, TVS-471U, TVS-471U-RP,TS-463U, TS-463U-RP,TS-863U, TS-863U-RP, TS-1263U and TS-1263U-RP models..Mounting rail kit for servers.High-quality construction for added durability.Suitable for TVS-871U-RP, TVS-1271U-RP, TVS-471U, TVS-471U-RP,TS-463U, TS-463U-RP,TS-863U, TS-863U-RP, TS-1263U and TS-1263U-RP NAS servers
The Innovation First 2UKIT-109 2U rack mount rail with steel construction, has maximum load capacity of up to 75 lb. This rack rail installs into racks with square, round or threaded holes. It comes with cabling crossbar, four post racks, screws, cage-nuts and nuts..Compatible with Servers, storage, computers.Fits square, round, threaded holes.Rail OEM: All purpose, server compatibility: Apple, Dell, HP and IBM.Rack type: Mounts in any type of 4 post rack, hole type: Compatible with the industry standard 0.375" square hole racks, cage nuts included.Rack height: 2U, rack width: 19", rail type: Fixed, equipment width: 16.375" - 17.4".Equipment depth: The rack rails support flange is 23.5" long, the rack rail will support servers computers or equipment up to 35" deep.Overall installation depth: Maximum overall depth is same as the rack's mounting depth, cable management: Cabling crossbar is standard.Mounting depth: 10" - 31.75".Includes 2U rack mount rails, cabling crossbar, 4 post racks, screws, cage-nuts, nuts.EIA-310 certified.Certifications and standards: EIA-310.InnovationĀ® First 2U rack mount rails allows racking of equipment that was never designed to be rack mounted and is compatible for servers, computers.
The Dell ReadyRails Sliding Rail Kit (770-BBJS) provides a reliable mounting solution for Dell PowerEdge 1U servers. Designed for tool-less installation in square and unthreaded round holes, and tooled installation in 4-post threaded racks, this kit ensures quick setup and secure support. The sliding rails allow easy access to the server for maintenance without full removal, improving efficiency in data center environments. Constructed in durable silver finish, the kit delivers long-lasting performance while maintaining compatibility with industry-standard racks. With a lightweight design and precise engineering, it supports Dell PowerEdge models such as R310, R410, R415, R430, R630, and R640. Backed by Dellās 1-Year Hardware Warranty, the ReadyRails Sliding Rail Kit offers dependable rack integration, streamlined installation, and convenient server management..Rack rail for mounting and servicing Dell 1U servers..Designed for rack mount in 4āpost EIAā310 standard racks..Fits 19 in racks; for 1U chassis; kit weight approx. 6 lb..Sliding rails, mounting hardware, and installation guide..Toolāless in square/round holes; tooled in threaded racks; smooth sliding access..Dell PowerEdge R310, R410, R415, R430, R630, R640..Dell 1āYear Hardware Warranty..EIAā310 rack standard compliant.
Mount your Micro or Thin Client between a monitor and an arm using the Dual VESA Mount. The mount also comes with an enclosure to house power adapter. It provides ultimate adjustability and the best experience when used with a touch monitor in workspaces such as a kiosk or a retail endpoint..Raise your monitor to a comfortable viewing height with this monitor mounting kit.Comes in black.This bay organize essentials such as pens, clips, etc..Meets or exceed VESA standard
The RKLCDBK Universal VESA LCD Monitor Mounting Bracket for 19in Rack or Cabinet lets you mount almost any retail LCD or Touch screen panel into a server/storage rack/cabinet..Size: 7"(H) x 17" - 19 1/2"(W) x 4.2"(D).Color: Black.Adjustable 100 mm and 75 mm VESA mounting hole pattern for greater compatibility and control.Adjustable depth between 0 to 3.5 inches at an increment of .25 of an inch.Constructed from solid steel at 2.0 mm thick, this bracket is designed for durability.Ideal for installing a retail LCD monitor into an existing Rack or Cabinet solution.Use for uptime/process monitoring with big screens over 19" when mounted outwards.Material: Steel.Installing a touch screen display into a rack or cabinet.Mounting an LCD monitor or TV to the wall.Includes: 1 x LCD mounting bracket (two sides, one back), 1 x pack assembly screws (4 ea truss head, washers, flat head), 8 x LCD mounting Screws.Certifiations and standards: ANSI/EIA RS 310 D standards.Weight: 3.8 lbs..Warranty: Lifetime limited.Universal VESA LCD monitor mounting bracket for 19" rack or cabinet is constructed from solid steel at 2 mm thick and is designed for durability.
The ASUS MKT02 Mini PC Kit is a monitor mounting solution with VESA 100x100mm compatibility for select ASUS monitors. It is designed for those who need to mount mini PCs onto monitors to make their desktop space clutter-free for a clean and tidy look..This is a VESA-compatible mini-PC mounting kit designed to attach Asus mini-PCs to the back of compatible Asus monitors, helping to create a clean, clutter-free desktop setup.The kit supports a wide range of Asus monitors, including models from the BE, PA, and VA series, typically ranging from 23.8 to 27 inches.Designed solely for securing a mini-PC to the back of a monitor.The mounting kit is black in color and made from durable metal for long-lasting support.Supports the VESA 100x100mm mounting pattern, compatible with select Asus monitors.Dimensions H 4.80ā x W 8.28ā x D 1.47ā & Weight 0.64 lbs
Innovation Universal rack rail is designed to replace OEM rails included with apple, HP, IBM and dell server racks. Rack rail has mounting depth range of 10" - 31 3/4" and can withstand a maximum weight of 20.4 Kg..Capacity: 20.4 kg.Compatibility: Servers, storage, computers.Hole type: Compatible with the industry standard 3/8"(10 mm) square hole racks, cage nuts included for square hole mounting, compatible with all standard round (non-threaded) holes.Rack type: 4Post, 2Post.Rail type: Fixed.Mounting depth range: 10" - 31 3/4"(254 - 806 mm).Cable management: Cabling crossbar is standard.Height (rack units): 1U.Overall installation depth: Maximum overall depth is the same as the rack's mounting depth.LIFETIME Limited Warranty - Includes LIFETIME Next Business Day (NBD) Replacement, LIFETIME Technical Chat online support, and 90 days free Technical Phone support.Innovation Universal rack rail is designed to support variety of server racks and is compatible with servers, storage and computers.
Box 36" x 19" Wall mounted panel rack saves floor and workbench space. Rack allows to customize your unit by choosing the bin sizes of your choice..Maximize storage capacity in a small amount of space..Customize your unit by choosing the bin sizes of your choice..Wall Mounted Panel Rack saves floor and workbench space..175 pound capacity..36" x 19" wall mounted panel rack helps you maximize storage capacity in a small amount of space.
The Eaton Ā® 2-post mounting rail kit is compatible with Eaton Ā® 5 and 6 kVA 9PX UPS..High quality construction for added durability and better use.Aids for easy and instant installation.Suitable to use with Eaton 5 and 6 kVA 9PX UPS.Black
This Brainboxes metal mounting clip clicks securely onto 22.5mm deep modular devices. It is useful for mounting Brainboxes ED/SW/ES industrial range products at any orientation to any surface/wall to best utilize..This metal mounting clip clicks securely onto 22.5mm deep modular devices.Dimensions: 0.39"H x 1.18"W x 0.39"D.Meets or exceeds IEC 60715, EN 50022 standards.Lifetime manufacturer limited warranty

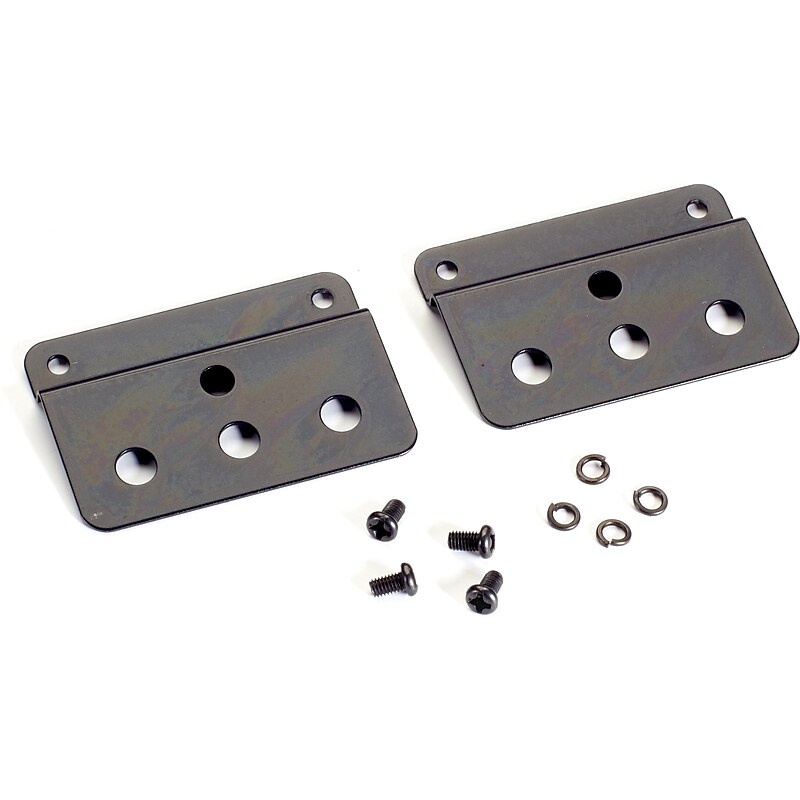

The Black Box IC400MK USB Extender Mounting Kit - M3, 5mm Phillips Pan Head Screws is a mounting accessory designed to help installers and IT teams achieve a clean, reliable setup. Its durable build and streamlined design support professional deployments across offices, classrooms, retail, and commercial environments..Durable, installer-friendly design.Low-profile, clean appearance.Broad use across AV/IT scenarios.Mounting accessory for professional AV/IT installs
