1000 Mbps Media Converters

The StarTech MCM1110 Gigabit Ethernet fiber media converter has a compact standalone design and wall mounting option to provide easy and worry-free installation. This converter features a durable metal housing that delivers superior performance. Plug-and-play installation helps for a hassle-free setup. Its compact, lightweight design fits nicely into any carrying case that lets you carry wherever you go. This media converter converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances..Gigabit ethernet fiber media converter converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances.Dimensions: 1"H x 2.8"W x 3.7"L.Compatible with networks 10/100/1000 Mbps.Brown steel enclosure for durability.Maximum data transfer rate: 1 Gbps, MTBF: > 50000 hours at 25 deg C, Fiber type: Multi mode, single mode, Fiber operating mode: Full-duplex.Has one RJ-45 female and one SFP slot female connector.LED indicators: 1 x power, 1 x fiber port link/act, 1 x copper port link/act, 1 x 1000 Mbps.Power: 1 A input current, 100 - 240 VAC input voltage, 2 A output current, 5 VDC output voltage, Plug type: N, Power consumption: 5 W max.Form factor: Desktop/wall mountable.Temperature: 32 - 122 deg F operating, 14 - 158 deg F storage, Humidity: 5 - 95% RH (non-condensing).10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network.Compact standalone design and wall mounting option offers easy and convenient installation.Converter offers a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.Supports Auto MDIX and 9K jumbo frame.Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi/single mode transceiver.Contains universal power adapter (NA/EU/UK/AU).Meets IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX certification and standards.Weight: 6.5 oz..Comes with 2 years limited warranty.The StarTech Gigabit Ethernet fiber media converter with open SFP slot offers connectivity to users in an isolated area of a large complex or in a separate building.

Startech.com® Fiber to Ethernet media converter supports a maximum multimode fiber optic cable distance of 2 km. Converter provides a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations..Interface/ports: 1 x RJ-45 female, 1 x fiber-optic SC female.Dimensions: 0.8"(H) x 3"(W) x 3.7"(L).Compatibility: PC.Connectivity technology: Wired.Form factor: External.Black.Fiber optic mode: Multi-mode, half/full-duplex.Max transfer distance: 2 km (1.2 mi).Data transfer rate: 10/100Mbps.Indicators: 1xethernet link and activity (ON ethernet link OK, blinking activity on ethernet link), 1xFEF [far-end fault](on fault detected, off no fault, 1 x fiber link and activity (on fiber link OK, blinking activity on fiber link).Environment conditions: Operating temperature: 0 - 50 deg C, Storage temperature: -10 - 70 deg C, Humidity: 10 - 90% RH.Input voltage: 115 AC.Output voltage: 12 DC, output current: 0.2A.Center tip polarity: Positive.Includes 1 x media converter, 1 x power adapter, 1 x user's manual.Certifications and standards: RoHS.Weight: 3.2 oz..Warranty: 2 years limited.Startech.com® Fiber to Ethernet media converter creates an economical, cost-effective Ethernet-fiber link and fully complies with applicable IEEE 802.3 standards.

Unidirectional media converters combine one-way communications with the benefits of a copper to fiber media converter. Media converters are a cost-effective, plug-and-play device that allows fiber optic cabling to be connected to copper-based networking equipment. The deployment of fiber adds a layer of security to networks as it is difficult to tap into fiber and go undetected. If threats are attacking a network, the fiber links go down and network administrators are made aware of the problem, providing them the opportunity to address a potential breach of security. Adding unidirectional technology to a media converter creates a physically secure one-way communication channel over fiber between a secure network and an unsecure network. These devices can be used to allow data from a classified, high-security area to be transmitted to a low-security area, while preventing unsecure data from reentering the classified network. An alternate application allows a secure network to be updated with data from an external source while ensuring its critical data is unable to leave the classified area. NDAA Compliant, TAA Compliant.Auto-Negotiation on the 10/100/1000 copper port.Auto-MDI/MDIX configuration.Unit and port LEDs allow for quick status information.Converters use duplex SFP modules but the transmitting converter only uses the TX port on the SFP, while the RX port is deactivated. Likewise the receiving converter only uses the RX port, while the TX port is deactivated.Converters support dual speed 100/1000Mbps SFP modules offering great flexibility to meet network requirements

Tripp Lite media converter extends your copper Gigabit Ethernet network connection up to 1804 ft. over LC fiber optic cable with the addition of PoE. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-LC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices..Gigabit multimode fiber to Ethernet media converter.Dimensions: 0.98"H x 3.74"W x 2.76"D.Comes in black.Extends power (48VDC) and data (1Gbps) to any edge PoE+ device.Supports multimode fiber optic cable with LC connectors up to 1804'.RJ45 jack supports auto-MDI/MDIZ to bridge various network devices.Supports both full- and half-duplex operation.Works in tandem with Tripp Lite N785-001-LC-MM (sold separately).Compact metal converter is easy to install and set up with no software or drivers required.Included power supply connects to AC outlets with no computer or other signal source needed.Package includes: media converter, external power supply with 3.6' cord and NEMA 5-15P plug (input: 100-240V, 50/60Hz, 1.5A; output: 48V, 1.25A), and owner's manual.2-year manufacturer limited warranty

Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX The GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber..Auto-Negotiation.Fixed Full-Duplex on fiber.Auto-MDI/MDIX.Active Link Pass Through.Automatic Link Restoration

Tripp Lite media converter lets you extend your copper Gigabit Ethernet network connection up to 12.4 miles over fiber optic cable. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-INT-SC-SM with single mode fiber cable to reach greater distances. This could include providing network connectivity to employees in a secluded area of a facility, college or branch office or connecting multiple office workstations to a switch located in a separate building..Gigabit single-mode fiber to Ethernet media converter.Dimensions: 1"H x 3.7"W x 2.76"D.Comes in black.Extends your copper Gigabit Ethernet network past the standard 328' limit.Supports single-mode fiber optic cable with SC connectors.RJ45 jack supports auto-MDI/MDIZ to bridge various network devices.Supports both full- and half-duplex operation.Compact metal converter is easy to install and set up with no software or drivers required.Package includes: media converter, four international plug adapters (North America, UK, Europe, Australia), international power supply (input: 100-240V), and owner's manual.2-year manufacturer limited warranty

Startech.com® Single mode fiber media converter transforms and extends a 10/100 Mbps Ethernet connection up to 18.6 miles/30 km. Converter features rugged steel casing for durability in harsh environments..Interface/ports: 1 x RJ-45 female, 1 x fiber-optic SC female.Dimensions: 0.9"(H) x 3.4"(W) x 6.1"(L).Compatibility: PC.Connectivity technology: Wired.Form factor: Desktop, rack mountable.Black.Fiber optic mode: Single mode, half/full-duplex operating mode.Max transfer distance: 30 km (18.6 mi).Data transfer rate: 200 Mbps (full-duplex mode).Environment conditions: Operating temperature: 0 - 60 deg C, Storage temperature: -10 - 70 deg C, Humidity: 10 - 90% RH.Input voltage: 115 - 230 AC.Output voltage: 12 DC, output current: 1A.Center tip polarity: Positive.Includes 1 x fiber media converter, 1 x universal power adapter (NA/UK/EU), 1 x instruction manual.Certifications and standards: RoHS, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, FC, FCC.Weight: 14 oz..Warranty: 2 years limited.Startech.com® Single mode fiber media converter lets to extend a fast Ethernet network over single mode fiber and supports standalone operation or installation into the 20 slot.

The StarTech MCM1110MMLC brown 1 Gbps Gigabit Ethernet fiber media converter offers a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access. This converter features a durable metal housing that delivers superior performance. Plug-and-play installation helps for a hassle-free setup. Its compact, lightweight design fits nicely into any carrying case, so you can transport it wherever you go. This media converter converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances..Media converter converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances.Dimensions: 1"H x 8.1"W x 2.8"D.Compatible with campuses, businesses, government facilities, stadiums, or other areas requiring network access.Brown steel enclosure for durability.Has one RJ-45 female and one fiber optic LC duplex female port.Media type supported: optical fiber, twisted pair; fiber mode supported: multi-mode.Network technology: 10/100/1000Base-TX, 1000Base-LX, 1000Base-SX.Provide connectivity for desktop; wall mounting ensures properly centered installation.Data transfer rate: 1 Gbps; fiber optic wavelength: 850 nm; maximum distance supported: 1804.46'; power source: AC adapter; jumbo frame support: 9K.MTBF: > 50000 hours at 25 degrees Celsius.Input/output current: 1 A/2 A; input/output voltage: 100 - 240 VAC/5 VDC; power consumption: 5 W; plug type: N.LED indicators: power, fiber port link/act, copper port link/act, 1000 Mbps.Environmental conditions: 32-122 degrees F; 14-158 degrees F storage; 5-95% RH (non-condensing) humidity.Compact standalone design & wall mounting option for convenient installation; link fault pass (LFP) supported.Contains universal power adapter (NA/EU/UK/AU).Meets RoHS, FCC and CE certifications and standards.Weight: 7.1 oz..2 year warranty.The StarTech brown 1 Gbps Gigabit Ethernet fiber media converter offers connectivity to users in an isolated area of a large complex or in a separate building.

This media converter by Tripp Lite converts a single-mode or multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SFP with fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks, and access control devices..Customizable media converter extends power and data to a PoE+ device via fiber cable.Dimensions: 0.98"H x 3.74"W x 2.76"D.Network compatibility: 10/100/1000 Mbps Gigabit Ethernet network.Features a compact black metal housing.PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device.Supports auto-sensing of network speed and other advanced functions, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration.Supports both full- and half-duplex operation.Customizable SFP port supports both 1G single- and multimode transceivers.RJ45 jack supports auto MDI/MDI-X to bridge various network devices.Six LEDs indicate the converter's power, PoE, Ethernet network, and fiber link statuses at a glance.Completely plug-and-play with no additional software required for connection.The included power supply connects to a convenient AC outlet with no computer or other signal source needed.Works in tandem with Tripp Lite N785-Series non-PoE converters (sold separately).Pack includes: media converter, external power supply with 3.6' cord and NEMA 5-15P plug (input: 100-240V, 50/60 Hz, 1.5A; output: 48V 1.25A), and owner's manual.Meets or exceeds FCC and RoHS standards.2-year manufacturer limited warranty

Autosensing copper ports make them perfect for migrating networks. Accepts 1250-Mbps SFPs. Use as standalone media converters or rackmount in the optional PowerTray. Powered by its universal AC power supply, a PC's USB port, or the optional rack mountable PowerTray. Auto MDI/MDI-X means you never need to worry about what kind of cable to use. Easy to install. Just plug and play. Compact size. Uses inexpensive CAT5e twisted-pair cable on the copper side. Features Link Fault Pass-Through (LFPT). This Black Box Multipower Miniature Media Converter links 10-, 100-, or 1000-Mbps copper segments to 1000 Mbps fiber cabling. An SFP port enables you to use an SFP to link the converter to fiber cable. Choose from multimode and single-mode SFPs. With a single-mode SFP, the media converter supports distances up to 80 kilometers (49.7 mi.), depending on the model you order. For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (which plugs into a PC's USB port and is sold separately), or through the optional rackmount PowerTray (sold separately). The PowerTray provides power for up to 18 converters in only 5U of rack space. Rackmount ears are included..Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.Compact size; measures just 0.8"H x 1.8"W x 3.4"D.Powered by a universal AC power supply or the optional rack mountable PowerTray.Auto MDI/MDI-X means you never need to worry about what kind of cable to use

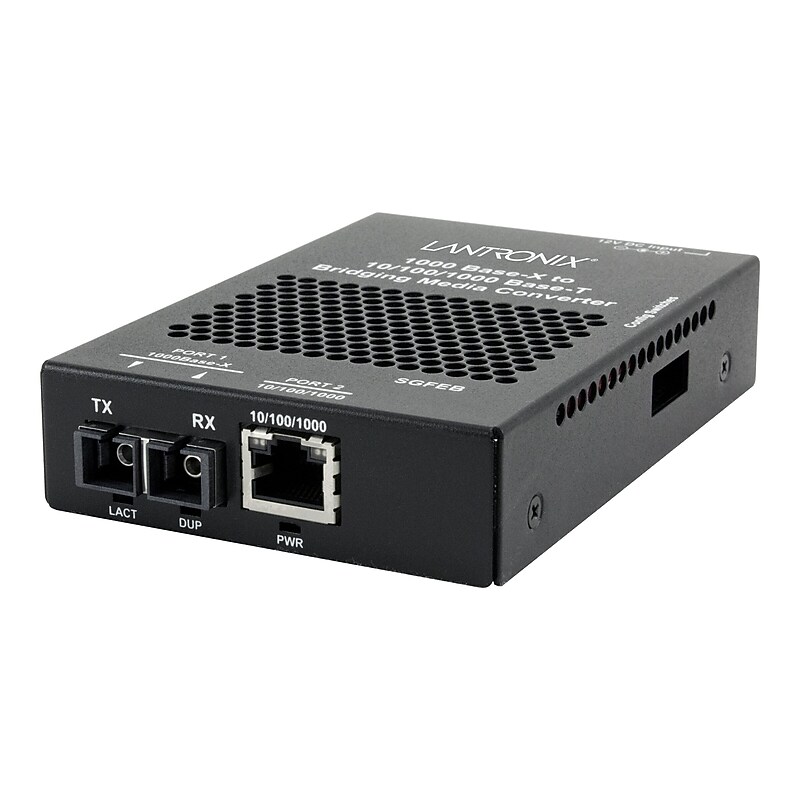

The Transition Networks® SGFEB1013-130-NA Ethernet media converter offers data rates up to 10/100/1000 Mbps on copper and 1000 Mbps on fiber ports. It integrates 1000Base-SX/LX fiber into a 10/100/1000Base-T copper to extend the network distance longer. This Ethernet media converter features AutoCross™ and Link Pass through technology. While the twisted pair ports on converter automatically detect the correct MDI or MDI-X configuration and monitors the loss of signal in fiber and copper ports..Media converter is an integration and conversion solutions for half and full-duplex environments.Dimensions: 1"H x 3.3"W x 4.8"D.Comes in black color.Interface: One RJ-45, one female SC.Fiber mode: Multi-mode fiber (MMF).Supports data transfer rate up to 1 Gbps and features diltering addresses of 8K entries.Connectivity technology: Wired, Operating distance: 721.78'.Wavelength: 850 nm, Indicators: Link/activity, port duplex mode, port transmission speed, power.Supports 50/125um, 62.5/125um standard optical fiber/twisted pair media for data transmission using Gigabit Ethernet technology.Power: 2.2 W consumption, Form Factor: Desktop, rack-mountable, rail-mountable, wall mountable.Features indicators for auto-negotiation, AutoCross, built-in DIP switch, energy efficient Ethernet, far end fault and half duplex mode.Offers jumbo frames support and link pass-through for reliable data transfer.Secures data from external sources of noise and interference and improves network performance.Meets RoHS and WEEE standards.Weight: 8.8 oz..Comes with lifetime warranty

The S4110 is a stand-alone fiber to fiber media converter. It is protocol independent and supports data rates from 1Gbps to 11.5Gbps through two open SFP+ slots. This allows network managers to customize the S4110 with a pair of SFP+ modules to meet their network requirements. The open SFP+ ports support a wide variety of Transition Networks 10GE SFP+ fiber modules. This any-rate to same- rate converter can be used to perform reliable and cost-effective single mode to multimode conversion or it can be used to provide wavelength conversion in CWDM applications..Fiber to fiber repeater.Supports data rates from 1Gbps to 11.5Gbps.Support any-rate to same-rate.Up to 100,000:1 contrast ratio

Extend Your Network with Fiber This media converter provides a cost-effective way to add fiber to your existing network infrastructure. It converts 10/100/1000Base-T(X) to 1000Base-X with ease. Designed for the Toughest Environments The Gigabit Industrial Media Converter provides consistent network performance in the harshest work environments on earth. It features an operating temperature range of -40° to 158° F and rigid IP-30 housing..Rigid IP-30 housing.Relay output to carry capacity of 1A at 24 VDC.Store-and-forward transmission.Jumbo frame up to 10240 bytes.Convert 10/100/1000Base-T(X) to 1000Base-X

The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential..Auto-Negotiation.Auto-MDI/MDIX.Automatic Link Restoration

Mini Gigabit Ethernet Media Converter 1000Base-T to 1000Base-SX/LX The GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential..Auto-MDI/MDIX.Automatic Link Restoration.Interoperable with other 1000Base-T/SX/LX NICs or switch ports.Status LEDs for easy monitoring.Supports SFP modules

The Transition Networks® 1-port RJ-45 to SFP standalone Gigabit Ethernet media converter is perfect for business and mobile backhaul applications. It has 10/100/1000BT to 1000B-X SFP expansion slot and supports up to a distance of 328.08'..Stand-alone Gigabit Ethernet remotely managed media converter is ideal for business and mobile backhaul applications.Dimensions: 1"H x 3 1/4"W x 6 1/2"D.Comes in black color.Interfaces/ports: One 10/100/1000Base-T RJ-45, one SFP slot, USB.Power supply: input: 100 - 240 VAC, 1 A, output: 12 VDC, 1.25 A.Data rates: 10/100/1000 Mbps (copper), 1000 Mbps (fiber).Form factor: External.IEEE standards: IEEE 802.3, 802.3ah, 802.1P, 802.1Q.Frame size: 10240 byte jumbo frames, MAC addresses: 8K.Maximum distance supported: 328.08'.Features two selectable remote management modes, auto-MDI/MDIX, auto-negotiation, pause, link pass through, far-end-fault and remote loopback.Temperature: 0 - 50 deg C operating, -25 - 85 deg C storage, Humidity: 5 - 95 percent non-condensing.Meets EN55022 Class A, EN55024, UL60950, CE Mark certifications and standards.Weight: 2 lbs..Comes with lifetime warranty
