Cisco Adapters

The Cisco™ GLC-TE= Gigabit Ethernet SFP transceiver module is suitable for 7700 F3-series, 9372PX and 9396PX Cisco Nexus series switches. This SFP transceiver module has RJ-45 1000Base-T network LAN ports for connectivity. It supports twisted pair media for reliable data transfer..SFP transceiver module for 7700 F3-series, 9372PX and 9396PX Cisco Nexus series switches.Color: Silver.Connectors: One RJ-45 1000Base-T network LAN.Media type supported: Twisted pair.Ethernet technology: Gigabit Ethernet

The Cisco transceiver module has one LC duplex 10GBase-LR port, and it is compatible with the Alcatel-Lucent Omniswitch 6900, making it easy to install and use with your system. The piece is hot swappable and allows you to select the interface of your choice for flexibility. It is the smallest 10G form factor, so it saves you space..Interfaces/ports: 1 x LC duplex 10GBase-LR.Dimensions: 0.3"(H) x 1/2"(W) x 2.2"(D).Compatibility: Alcatel-lucent omniswitch 6900.Smallest 10G form factor.Supports 10GBASE Ethernet and OTU2/OTU2e.Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch.Provides flexibility of interface choice.Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.Supports "pay-as-you-populate" model.Supports digital optical monitoring capability.Supports the cisco quality identification (ID) feature that enables a Cisco switch to identify whether the module is certified and tested by Cisco.Form factor: Hot-swappable.Cisco Transceiver Module - Switch Accessories for Networking

The Cisco SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor. This short reach module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G. It also supports link lengths of 82m over OM2 at 10G, and up to 70m over OM2 at 25G. This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G. For 10G operation FEC is not required..This module offers high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications.Wavelength: 850nm.Supports FCoE with the appropriate host s/w support.Features dual LC/PC connector

Cisco™ 1000BASE-EX SFP Transceiver module is hot-swappable and supports a 1310 nm wavelength signaling. Module operates on standard SMF optic link that spans up to a distance of 40 km..Interface/ports details: 1 x 1000Base-EX network.Media and performance: G.652 micrometer single mode optical fiber.Ethernet technology: 1 Gbps gigabit ethernet.Dimensions: 0.3"(H) x 0.5"(W) x 2.2"(D).Application/usage: Data networking.Form factor: Hot swappable.Wavelength: 1310-nm, Reach: 40 km.Compatibility: Cisco ME 3400 series ethernet access switches, Cisco catalyst 3750 metro series switches.Weight: 2.65 oz..Warranty: 90 days limited.Cisco™ 1000BASE-EX SFP Transceiver module is designed to connect a gigabit ethernet port to a network and has dual LC/PC single mode connectors.

To ensure that specifications are met over FDDI-grade, OM1 and OM2 fibers, the transmitter should be coupled through a mode conditioning patch cord. No mode conditioning patch cord is required for applications over OM3..SFP+ module is perfect for data networking, optical network.Dimensions: 0.3"H x 0.5"W x 2.2"D.Compatible with A9K-16T/8-B=, ME-3600X-24FS-M=, ME-3600X-24TS-M, N7K-F132XP-15=, N7K-M132XP-12L, WS-X45-SUP7-E/2 networking products.Interface/ports: 1 x LC duplex 10GBase-LRM network.Media type supported: Optical fiber, fiber mode supported: Multi-mode, single-mode, Ethernet technology: 10 Gigabit Ethernet.Maximum data transfer rate: 10 Gbps.Form factor: Hot-swappable, plug-in module.Up to 980', fiber optic cable standard: 62.5 ohm m, 50 ohm m, wavelength: 1300nm.Supports link lengths of 220m on standard fiber distributed data interface (FDDI) grade multimode fiber (MMF).Temperature range: 32 - 158 deg F.Transmit power: -6.5 to 0.5 dBm.Receive power: -8.4(in average) and -6.4 (in OMA) - 0.5 dBm.Connectivity media: 62.5 um, 50 um multi-mode fiber 10GBase-LRM, single-mode fiber 10GBase-LRM.Power consumption: 1 W.Core size: 62.5 - G.652 microns.Cable distance: 220 - 300 m.Cable type: MMF and SMF.Transmit and receive wave length: 1260 - 1355nm.Compliant standards: IEEE 802.3ae, IEC 60825-1, laser class 1.Warranty: 90 days limited.10GBase-LRM SFP transceiver module supports link lengths of 220 m on standard fiber distributed data interface (FDDI) grade multimode fiber (MMF).

The Cisco small form-factor pluggable portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor..Transceiver module for MMF.Pull tab comes in beige.Supports a link length of 70/100m on OM3/4 MMF.Requires RS-FEC on the host ports.Maximum power consumption: 1.2W.Wavelength: 850nm.Cable type: MMF.Core size: 50 microns.Modal bandwidth: 2000 OM3/4700 OM4/4700 OM5 on 70/100/100m cable distances.Support FCoE with the appropriate host s/w support.5-year manufacturer limited warranty

The Cisco 10GBASE-SR module supports link lengths up to 26m on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF). Using 2000MHz x km of MMF (OM3), it is possible to create link lengths up to 300m, and with 4700MHz x km MMF (OM4), link lengths up to 400m are possible..Multimode fiber optic transceiver with dual LC/PC connector.10GBASE SFP+ module for data center, enterprise wiring closet, and service provider transport applications.Provides data transfer rates up to 10Gbps.Supports link lengths up to 26m on standard FDDI-grade MMF; up to 300m on 2000MHz x km MMF (OM3); and up to 400m on 4700MHz x km MMF (OM4).Power consumption: 1W.Hot-swappable, plugs into an Ethernet SFP+ port.Compliant with the SFP+ MSA SFF-8431 standard.Wavelength: 850nm.Form factor: Hot-swappable.MSA compliant.Commercial temperature: 32 to 158 degrees Fahrenheit.Supports digital optical monitoring capability.Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.1-year manufacturer limited warranty

The Cisco® 40GBase-SR4 QSFP+ wired transceiver module offers links up to 492' long via multi-mode optical fiber at a wavelength of 840 - 860 nm. It supports both twisted-pair and optical fiber media types. This Hot-swappable, plug-in module allows high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber connectors..QSFP+ transceiver module for data networking and optical network.Dimensions: 0.5" x 0.7" x 2.9".Interfaces/ports: One MPO/MTP 40GBase-SR4 network.Max transfer distance: 492', Optical wave length: 840 - 860 nm.Media type supported: Optical fiber, Fiber mode supported: Multi-mode.Connectivity technology: Wired.Form factor: Hot-swappable, plug-in module.Power consumption: 1.5 W operational.Temperature: 32 - 158 deg F (operating), -40 - 185 deg F (storage).Meets FCC CFR21 Part 1040, GR-1435-CORE, GR-20-CORE, GR-326-CORE, IEC 60825-1 Class 1, MSA SFF-8431 certifications and standards.Comes with 1 year limited warranty

The Cisco 10GBASE SFP+ module gives you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications..Transceiver module gives you a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.Comes in gray.Power consumption: 0.1W.Compact 10G form factor for great density per chassis.Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing).Supports “pay-as-you-populate” model for investment protection and ease of technology migration.Digital optical monitoring for strong diagnostic capabilities.Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.5-year manufacturer limited warranty

It installs in a Mini-GBIC compliant slot and features a duplex LC connector that is compatible with 850nm multi-mode fiber cables..Type of Product/Use: Transceiver.Dimensions/Size: 2.2 x 0.5 x 0.3 inch.True color: Silver.850nm Wavelength for Multi-Mode Fiber.Connectivity media: 62.5/125 microm multi-mode optical fiber, 50/125 microm multi-mode optical fiber.Max transfer distance: 721.78 ft 62.5/125 microm, 902.23 ft 62.5/125 microm, 1640.42 ft 50/125 microm, 1804.46 ft 50/125 microm optical fiber.Data transfer rate: 1 Gbps gigabit-ethernet.Transmitter spec: Power: -9.5 to -4 dBm, Receiver spec: sensitivity: -20 to -17dBm, Input power: -20 to -17 dBm.Stress sensitivity: 50/125 um: -13.5 dBm, 62.5/125 um: -12.5 dBm, Wavelength: 850 nm (850nm TYP., 830-860nm) MMF.Environmental condition: Operating temperature: 32 - 104 deg F, Storage temperature: -4 -158 deg F Operating humidity: 0% to 85% non-condensing.Modular bandwidth for MMF: 62.5/125um MMF at 160 MHz/km, up to 220m, 62.5/125um MMF at 200 MHz/km, up to 275m, 50/125um MMF at 400 MHz/km, up to 500m, 50/125um MMF at 500 MHz/km, up to 550m.Provides a simple way to add Gigabit functionality to your Linksys switch.Gigabit fiber is often-used to connect two switches together.Technology used depends on the distance between the two switches.SX module uses 850 nanometer wavelength light in multimode fiber-optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.The Gigabit Ethernet SX Mini-GBIC SFP Transceiver from Cisco is an expansion module that adds high-density fiber connectivity to compatible devices.

It installs in a Mini-GBIC compliant slot and features a duplex LC connector that is compatible with 850nm multi-mode fiber cables..Type of Product/Use: Transceiver.Dimensions/Size: 2.2 x 0.5 x 0.3 inch.True color: Silver.850nm Wavelength for Multi-Mode Fiber.The Gigabit Ethernet SX Mini-GBIC SFP Transceiver from Cisco is an expansion module that adds high-density fiber connectivity to compatible devices.

The Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver, and it supports up to 400m link length when uses 4700Mhz KM MMF (OM3). The 10GBase-SR SFP+ module offer customers a wide variety of 10 gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications..Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver.Industry’s smallest 10G form factor for greatest density per chassis.Compatibility: Cisco nexus 5000 series Switches, cisco nexus 7000 series switches.Hot Pluggable.850nm VCSEL transmitter, PIN photo-detector.Maximum link length of 300m on 2000MHz/km MMF.Operating case temperature: 0 to 70 °C.Additional information: Spare product, distance 300 m.Form factor: Plug-in module.Application/usage: Data networking.90 days limited warranty.The Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver. SFP+ transceiver module supports a link length of 26 m on standard fiber distributed data interface (FDDI)-grade multimode fiber (MMF).

The Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver, and it supports up to 400m link length when uses 4700Mhz KM MMF (OM3). The 10GBase-SR SFP+ module offer customers a wide variety of 10 gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications..Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver.Industry’s smallest 10G form factor for greatest density per chassis.Compatibility: Cisco nexus 5000 series Switches, cisco nexus 7000 series switches.Hot Pluggable.850nm VCSEL transmitter, PIN photo-detector.Maximum link length of 300m on 2000MHz/km MMF.Operating case temperature: 0 to 70 °C.Additional information: Spare product, distance 300 m.Form factor: Plug-in module.Application/usage: Data networking.90 days limited warranty.The Cisco SFP-10G-SR module is the multimode 10G fiber optical transceiver. SFP+ transceiver module supports a link length of 26 m on standard fiber distributed data interface (FDDI)-grade multimode fiber (MMF).

Cisco 100BASE-FX small form-factor pluggable (SFP) fast Ethernet interface converter is a hot-swappable device that plugs into a gigabit Ethernet SFP port on Cisco catalyst 3750 series, 3560 series, and 2970 series switches..Interfaces/ports: 1 x LC duplex 100Base-FX.Dimensions: 0.4"(H) x 2.2"(W) x 1/2"(D).Compatibility: Cisco catalyst 3750, 3560, and 2970 series switches.Connectivity media: 62.5/125 um multi mode fiber, 50/125 um multi mode fiber.Transmit (dBm): 50/125-micron: -23.5 min, -14max, 62.5/125-micron: -20 min, -14max, receive (dBm): 50/125-micron: -33.35 min, -11.8 max, 62.5/125-micron: -33.35 min, -11.8 max.Distance supported: 6.5'.Operating temperature: 32 - 158 deg F, storage temperature: -40 - 185 deg F.Surge current: 350 typical, wavelength (nm): 1270 min, 1300 typical, 1380 max.Power consumption: 1.5 W per port.Input voltage: 3.3 V - 3.5 V device, 3.3 V typical device.Input current: 405 mA typical, 450 mA maximum.Data transfer rate: 100 Mbps fast Ethernet full duplex.MTBF: 12,820,512 hours.Form factor: Hot-swappable.System requirements: Cisco IOS software release 12.2(20)SE1.Application/usage: Data networking.Regulatory and standards compliance: IEC 60825-1.SFP fast ethernet interface converter 100FX SFP on GE SFP ports for DSBU switches.

Industry standard Cisco small form factor pluggable (SFP) gigabit interface converter is a hot-swappable input/output device that plugs into a gigabit Ethernet port or slot, linking the port with the network..Interfaces/ports: 1 x LC duplex 1000Base-LX/LH.Dimensions: 0.3"(H) x 1/2"(W) x 2.2"(D).Compatibility: Cisco IE 3000 series switches, cisco 3200 series rugged routers, cisco MWR 2900 mobile wireless routers.Connectivity technology: Wired.Connectivity media: Single mode fiber 1000Base-LX/LH.Operating temperature: -40 - 185 deg F.Fiber type: SMF/MMF.Cabling type: Ethernet 1000Base-LX.Additional information: Spare product, range: 10 Km, wavelength: 1300 nm.Data transfer rate: 1 Gb/s gigabit Ethernet.Form factor: Hot swappable/plug-in.Application/usage: Data networking.SFP (mini-GBIC) transceiver module 1000 MBPS SFP single mode rugged 1000BASE-LX/LH SFP for MMF and SMF.

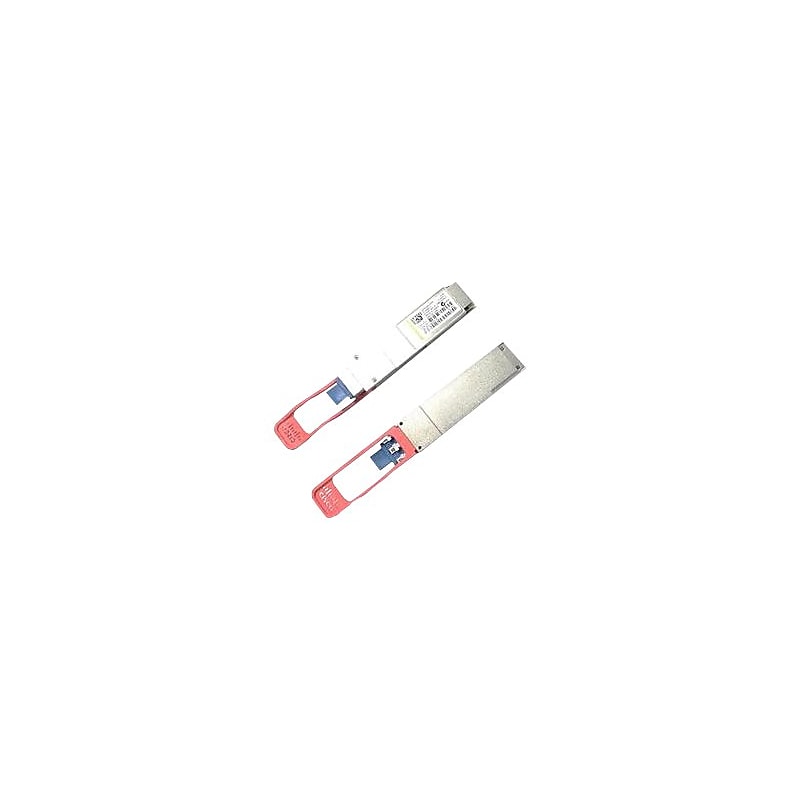

The Cisco QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The module supports 40GBASE Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device. Does not support FCoE..Transceiver module for MMF.Pull tab comes in blue.Guarantees a link BER of 1E-12 when supporting 10km on SMF.Maximum power consumption: 3.5W.Wavelength: 1310nm.Cable type: SMF.Core size: G.652 microns.Cable distance: 10km.5-year manufacturer limited warranty
