Cisco Expansion Modules

Cisco Catalyst IE3300 Rugged Series switches deliver high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3300 Rugged Series offers the flexibility to expand to up to 26 ports of Gigabit Ethernet or up to 24 ports of Gigabit Ethernet and 2 ports of 10 Gigabit (10G) Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3300 platform is also perfect for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers..Expansion module for Catalyst IE3300 rugged series switches.Adds 16 100/1000Mbps Ethernet PoE+ ports.Dimensions: 6"H x 3.6"W x 5.3"D.Power consumption: 21W

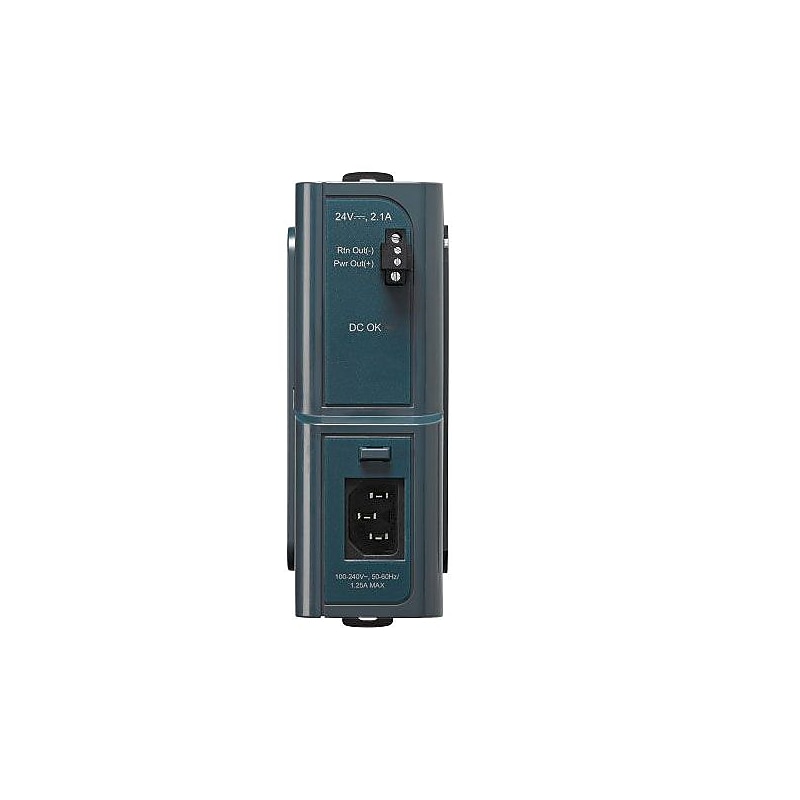

The Cisco PWR-IE50W-AC-IEC= expansion power module is compatible with IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E Cisco switches. This DIN rail mountable expansion power module features one power IEC 320 EN 60320 C14 interface port for reliable connectivity..Expansion power module is perfect for industrial Ethernet applications.Dimensions: 5.8"H x 2"W x 4.4"D.Compatible with IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E Cisco switches.Form factor: DIN rail mountable.Interface/ports: One Power IEC 320 EN 60320 C14.Power source: 110 - 220 VAC/88 - 300 VDC.Cisco™ Expansion power module is designed for IE-3000-4TC, IE-3000-8TC switches and supports 110/220 VAC input, 24 VDC/2.1A output, IEC plug and DIN-rail mount.

Cisco Catalyst C9300-NM-2Q= network module has two 40G slots with a QSFP+ connector in each slot The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed. The switch generates logs when you insert or remove a network module with SFP/SFP+/SFP28 ports..Network module is great for data networking to provide secure user experience and high performance.This module has two 40G slots with a QSFP+ connector in each slot.If you use a 40G QSFP module, the ports default to 40G interfaces; in this case, the 10G interfaces are displayed but not used.The switch can operate without a network module, but a blank module (with no ports or SFP slots) is available and should be installed when uplink ports are not required.Removing and installing a network module can shorten its useful life, do not remove and insert a network module more often than is necessary.Do not remove the network module with connected cables or installed pluggable transceiver modules; always remove any cable and module before you remove the network module.Supported only on Cisco Catalyst 9300 series switches

Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer.Gigabit Ethernet port for ultra-fast network speeds.With 1000Base-T technology, get up to 1000Mbps data transfer rate over twisted pair cable

Cisco Catalyst 9200 Series switches come with modular or fixed uplinks. With modular switches, the field-replaceable network modules provide infrastructure investment protection by allowing a nondisruptive migration from 1G to 10G and beyond..Spare 4 x 10GE network module for Catalyst 9200 switch.Compatible with Catalyst 9200 series switches.Comes in silver.Lifetime manufacturer limited warranty

Cisco Catalyst 9200 Series switches come with modular or fixed uplinks. With modular switches, the field-replaceable network modules provide infrastructure investment protection by allowing a nondisruptive migration from 1G to 10G and beyond..Spare 4 x 1GE network module for Catalyst 9200 switch.Compatible with Catalyst 9200 series switches; not supported on C9200-24PXG, C9200-48PXG.Comes in silver.Lifetime manufacturer limited warranty

Cisco™ 100Base-X small form-factor pluggable is optically interoperable with respective 100Base-X ethernet that interfaces on the same link. Plug has max transfer distance of 32810' and optical wave length of 1310 nm..1 x LC duplex 100Base-LX10.Optically interoperable with respective 100Base-X Ethernet interfaces on the same link.Connectivity technology: Wired.Dimensions: 0.3"(H) x 0.5"(W) x 2.2"(D), Form factor: Hot swappable.Max transfer distance: 32810', Optical wave length: 1310 nm.Temperature: 32 -122 deg F operating.Data transfer rate: 100Mbps fast ethernet, Connectivity media: G.652 micrometer single mode optical fiber.Compatibility: Catalyst 2960, 2960-24, 2960-48, 2960G-24, 2960G-48, 2960S-24, 2960S-48, 3560, 3560-12.Application/usage: Data networking.Interchangeable with other 100BASE-X SFPs on the same line card.Certification and Standards: IEEE 802.3, IEEE 802.3ah.Cisco™ 100BASE-LX10 SFP XCVR module is a pluggable device that operates on ordinary multimode fiber-optic link and is a hot-swappable input/output device that plugs into fast ethernet ports.

It installs in a Mini-GBIC compliant slot and features a duplex LC connector that is compatible with 850nm multi-mode fiber cables..Type of Product/Use: Transceiver.Dimensions/Size: 2.2 x 0.5 x 0.3 inch.True color: Silver.850nm Wavelength for Multi-Mode Fiber.Connectivity media: 62.5/125 microm multi-mode optical fiber, 50/125 microm multi-mode optical fiber.Max transfer distance: 721.78 ft 62.5/125 microm, 902.23 ft 62.5/125 microm, 1640.42 ft 50/125 microm, 1804.46 ft 50/125 microm optical fiber.Data transfer rate: 1 Gbps gigabit-ethernet.Transmitter spec: Power: -9.5 to -4 dBm, Receiver spec: sensitivity: -20 to -17dBm, Input power: -20 to -17 dBm.Stress sensitivity: 50/125 um: -13.5 dBm, 62.5/125 um: -12.5 dBm, Wavelength: 850 nm (850nm TYP., 830-860nm) MMF.Environmental condition: Operating temperature: 32 - 104 deg F, Storage temperature: -4 -158 deg F Operating humidity: 0% to 85% non-condensing.Modular bandwidth for MMF: 62.5/125um MMF at 160 MHz/km, up to 220m, 62.5/125um MMF at 200 MHz/km, up to 275m, 50/125um MMF at 400 MHz/km, up to 500m, 50/125um MMF at 500 MHz/km, up to 550m.Provides a simple way to add Gigabit functionality to your Linksys switch.Gigabit fiber is often-used to connect two switches together.Technology used depends on the distance between the two switches.SX module uses 850 nanometer wavelength light in multimode fiber-optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.The Gigabit Ethernet SX Mini-GBIC SFP Transceiver from Cisco is an expansion module that adds high-density fiber connectivity to compatible devices.

It installs in a Mini-GBIC compliant slot and features a duplex LC connector that is compatible with 850nm multi-mode fiber cables..Type of Product/Use: Transceiver.Dimensions/Size: 2.2 x 0.5 x 0.3 inch.True color: Silver.850nm Wavelength for Multi-Mode Fiber.The Gigabit Ethernet SX Mini-GBIC SFP Transceiver from Cisco is an expansion module that adds high-density fiber connectivity to compatible devices.

The Cisco Catalyst IE3300 rugged series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications..Managed switch expanded module contains 16 copper (RJ45) 100/1000Mbps ports.Provides secure access for the high-speed applications in the industrial space, and delivers high-speed up to 10 Gigabit Ethernet connectivity in a compact form factor.DIN rail-mountable.User-friendly WebUI allows for easy configuration and monitoring, and eliminates the need for more complex, terminal emulation programs.Power consumption: 12W.Great for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.Fanless, convection-cooled with no moving parts for extended durability.Alarm I/O for monitoring and signaling to external equipment.Delivers multiple rings and redundant ring topologies for new network configurations.Provides enhanced flow and threat visibility.Enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection.5-year manufacturer limited warranty

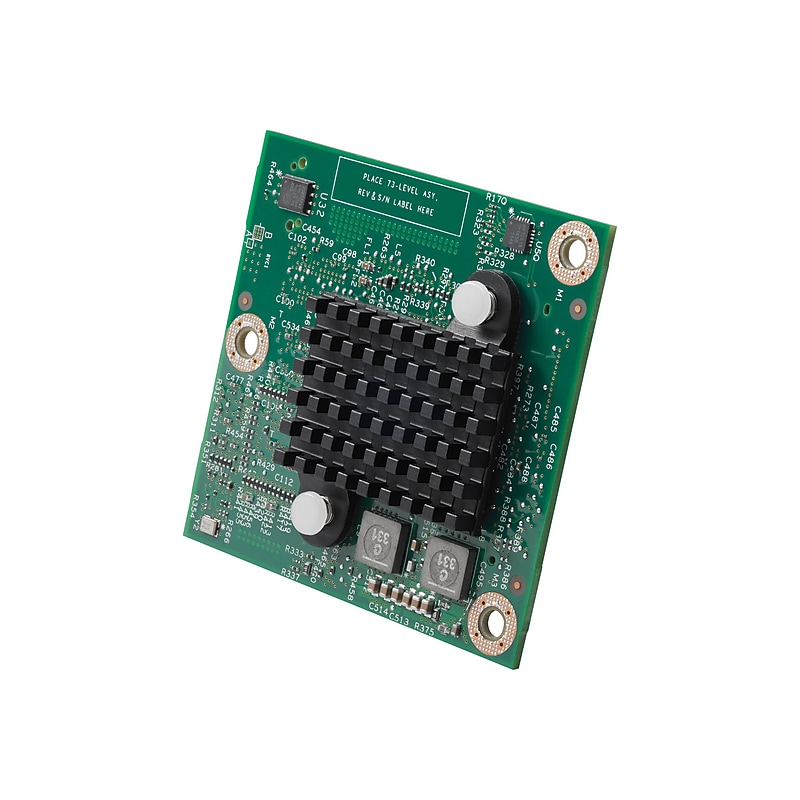

The Cisco PVDM4-64= 64-channel voice DSP module has 512MB RAM for convenient data storage. It is compatible with Cisco 4451-X integrated services routers. This voice DSP Plug-in module measures 0.7" x 2.5" x 2.6" and offers high-density voice connectivity..Voice DSP module provide rich-media capabilities.Dimensions: 0.7"H x 2.5"W x 2.6"D.Compatible with Cisco 4451-X integrated services routers.Form factor: Plug-in module.Application: Voice.Connectivity technology: Wired.Memory: 512MB RAM.Meets AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1, CISPR 22 Class B, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2 certifications or standards.Cisco Systems PVDM4-64= module supports T1/E1 ports. It is compatible with Cisco 4451-X Integrated Services Routers (ISRs).

Cisco™ Downstream SFP module is a hot-swappable I/O device that plugs into a gigabit Ethernet slot and linking it with the fiber-optic network. Module supports data networking applications and offers data transfer rate of 1 Gb/s..1 x LC 1000Base-BX.0.3"(H) x 0.5"(W) x 2.2"(D).Cisco ME 2400, Catalyst 2960 series, Cisco ME 3400, Catalyst 3560 series, Catalyst 3750 series, Catalyst 4500 series, Catalyst 4900 series, Catalyst 6500 series.Wired.Connectivity media: G.652 microm single-mode optical fiber.Form factor: Hot-swappable.Management: Digital optical monitoring (DOM) functions, Application/usage: Data networking.Data transfer rate: 1 Gbps gigabit ethernet.Operating transmission range: Up to 10 km.Small form-factor pluggable (SFP) gigabit interface converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet-port or slot, linking the-port with the network.1490-nm TX/1310-nm RX wavelength.Warranty: 90 days limited.Cisco™ Downstream SFP module has the ability to go up to 10 km over G.652 microm single-mode optical fiber and features digital optical monitoring functions.
