Fluke Wire Test Instruments

The Fluke LinkIQ is capable of measuring lengths up to 1000' and provides distance to faults such as opens, shorts, and unterminated cable. The included MS-IE remote adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables. The LinkIQ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols, performs ping tests to verify connectivity and also provides nearest switch diagnostics including advertised data rate, switch name and port number and VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability. Includes LinkIQ main unit, Remote ID #1-7, IntelliTone Pro 200 Probe, RJ45-RJ45 patch cord (M-F), RJ45-RJ45 patch cord (M-F), Quick Reference Guide, AC charger, RJ45/11 universal coupler, RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord, RJ45/11 modular adapter, hanging strap with remote ID holder, and duffle bag carry case..This cable and network tester is capable of measuring lengths up to 1000' and providing distance to fault analysis (opens, shorts, and unterminated cable).Includes remote ID, RJ45-RJ45 patch cord, RJ45-RJ45 patch cord (M-F), AC charger, RJ45/11 universal coupler, RJ45/M12X patch cord, RJ45/M12D patch cord, RJ45/M8D patch cord, RJ45/11 modular adapter.Works on a 3.6V 6400mAh lithium-ion battery.Host interface: USB Type-C.Validate EtherNet/IP, PROFINET, EtherCAT cable performance up to 10GBASE-T.Get connected switch data rate, name, IP address, port number, and VLAN.Detect the PoE class (1-8) and power, and perform a load test.Test connectivity to TCP/IP network through IP configuration and ping.Cable diagnostics including length plus IntelliTone, remotes 2-8.Manage results and print reports from LinkWare PC

The Fluke LinkIQ cable+network tester is the solution to verify cable performance up to 10G and solve network connectivity problems. LinkIQ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensure that tested links meet performance requirements. LinkIQ also performs ping tests to verify connectivity and provides nearest switch diagnostics including advertised data rate, switch name, IP address, port number and VLAN information, plus PoE testing and load test up to Class 8 (90 W). Ethernet Alliance PoE Certified for reliable multivendor interoperability. Additional features include: Cable Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC. Includes LinkIQ main unit, remote ID #1-7, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, IntelliTone(TM) Pro 200 Probe, and duffel bag carrying case..This cable and network tester is the solution to verify cable performance up to 10G and solve network connectivity problems.Includes Remote ID #1-7, RJ45-RJ45 patch cord, AC charger, RJ45/11 universal coupler, IntelliTone Pro 200 Probe, and duffel bag carrying case.Works on a 3.6V 6400mAh lithium-ion battery.Host interface: USB Type-C.Validate cable performance up to 10GBASE-T via frequency-based measurements.Get connected switch data rate, switch name, IP address, port number, and VLAN.Detect the PoE class (1-8) and power, and perform a load test.Test connectivity to TCP/IP network through IP configuration and ping.Cable diagnostics including length plus IntelliTone, remotes 2-8.Manage results and print reports from LinkWare PC

The DSX Cable Analyzer Series copper cable certifiers enables testing and certification of twisted pair cabling for up to 40 Gigabit Ethernet deployments and will handle any cabling system whether it is a Cat 5e, 6, 6A, 8 or Class FA and I/II. Certifying a cable is one part of a process that starts with system design and ends with system acceptance. The faster that process goes, the more profitable you'll be. Unfortunately, there are a lot of things that slow the process down - setting up the tester incorrectly, testing to the wrong limits, waiting for skilled technicians to analyze and troubleshoot failures, misinterpretation of results, and producing test reports that customers cannot understand. As part of the Versiv cabling certification product family, the DSX Cable Analyzer Series copper cable certifiers provides accurate, error-free certification. In the installation business there are multiple teams, varying media types and multiple testing requirements. The difference between being profitable or not is just a few percentage points. The DSX certifies copper cabling, complies with all standards including Level VI/2G accuracy, making jobs easier to manage, and getting to system acceptance faster. It's not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects..Versiv modular design supports copper certification, fiber optic loss, OTDR testing and fiber end-face inspection.Unmatched speed for Cat 6A, 8, Class FA, I/II and all current standards.ProjX system manages job requirements and progress from set-up to systems acceptance, making sure all tests are completed correctly.Taptive user interface simplifies set-up, and eliminates errors.Analyze test results and create professional test reports using LinkWare management software

Fluke Networks® MS2-KIT MicroScanner2 Professional kit includes MicroScanner2 cable verifier with main wiremap adapter, remote identifiers #2-7 and IntelliTone Pro 200 probe. Comprises of shielded twisted-pair RJ45 patch cord, RJ11 patch cord, clip-set RJ45 to 8 alligator clip bare wire adapter and F Coax push on patch cord for effective detection. Comes with accessory soft pouch for user convenience. Features two AA alkaline batteries and a 9 V alkaline battery for long working of the verifier. Kit has MicroScanner2 getting started guide, MicroScanner2 owners CD, IntelliTone Pro getting started guide and IntelliTone Pro owners CD for trouble-free usage of the device. All the components come in a deluxe Fluke Networks carry case for added convenience..MicroScanner2 professional kit is suitable to verify voice/data/video cable and services.Measures 6.4"H x 3"W x 1.4"D.Supports copper media for high speed transmission.F connector, RJ-11, RJ-45 interfaces/ports for flexible connectivity.FTP, SSTP, UTP cables for long distance transmission.Distance to fault, Length, PoE, speed test copper cables to 1000Base-T, Wiremap tests, tools and measurements.Requires operating temperature of 32 - 123 deg F, storage temperature of -4 - 140 deg F and 90 percentage relative humidity.Operates at altitude 4000 m (operating) and 12000 m (storage).Monochrome, backlight LCD display provides brighter images.Locates virtually any cable or wire pair with IntelliTone digital and analog toning.Rubber over mold enhances grip and increases ruggedness.Contains accessory soft pouch, 2 x AA alkaline batteries, 1 x 9 V alkaline battery, MicroScanner2 getting started guide, owners CD.Contains cable verifier with main wiremap adapter, remote identifiers, IntelliTone Pro 200 probe, shielded twisted-pair RJ45 patch cord.Meets N10140 C-Tick EMC standard, FCC Part 15 Class A, CE European Union Directives.Weighs 0.8 lbs.Comes with 1 year warranty.Fluke Networks® MicroScanner2 Professional kit tests voice/data/video cable/services with the help of a revolutionary user interface. Includes essential verification components.

Fluke MicroScanner PoE cuts through the confusion of your PoE installation by providing swift and simple PoE verification. The tester detects the available PoE class (0-8) in accordance to the latest PoE standards and displays the voltage from passive PoE sources. Everything cable technicians need to know, including available services (up to 10G Ethernet), cable length, wiremap, cable ID, and distance to fault are all shown on the LCD screen. Built-in IntelliTone digital and analog toning precisely locates virtually any cable or wire pair – even on active networks. The ergonomic design features sleek rubber overmold to enhance grip and ruggedness. Includes MicroScanner POE (Power over Ethernet) cable verifier with detachable wiremap adapter, getting started guide (10 languages), two AA alkaline batteries, carry pouch, and one-year warranty..This cable tester PoE cuts through the confusion of your PoE installation by providing swift and simple PoE verification.Includes: getting started guide (10 languages), two AA alkaline batteries, carry pouch.Works on two AA alkaline batteries.Operating temperature: 32-113 degrees Fahrenheit.Display network switch speeds capabilities up to 10G.Locate and trace cable with toning (probe sold separately)

The MicroScanner PoE cable verifier validates and troubleshoots your Industrial Ethernet copper cabling, helping to reduce down time in time-sensitive industrial networks. It performs continuity tests on all wires in a few seconds and displays the results graphically, so you can see opens, shorts, and crossed wires. The MicroScanner PoE helps make installation, maintenance, and troubleshooting on IT, security, PoE lighting, Ethernet-based HVAC devices, and IP-based building automation systems easier. Its oversized, backlit LCD screen displays clear results in any light or complete dark with intuitive icons and support of Class 0 to 8 PoE..PoE cable verifier validates and troubleshoots your Industrial Ethernet copper cabling, helping to reduce down time in time-sensitive industrial networks.Works on two AA alkaline batteries.Operating temperature: 32-113 degrees Fahrenheit.Reports PoE class (0-8), injector voltage, switch speed up to 10G.Shows wire map, length, cable ID, and distance to fault.Trace cable or wire pairs with the included IntelliTone Pro 200 probe.Includes Remote IDs to determine network layout quickly

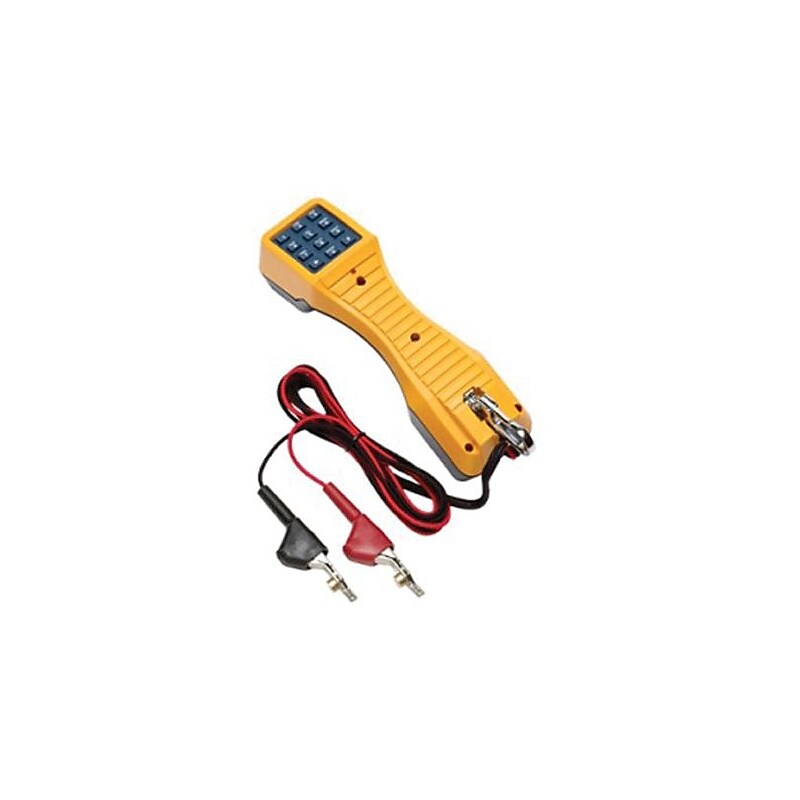

The fluke networks TS19 test set combines all the essential test set features at an affordable price. This test set was specifically designed for in-house telecom technicians..Dimension: 3.4"(H) x 2.4"(W) x 8.8"(D).Material: Copper.Storage temperature: 40 deg F.Humidity range operating: 10 - 80% (non condensing).Connectors: Banana x 2.Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode thus ensuring the integrity of critical data lines.Features such as Tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.Electronic ringer, ON/OFF.Field replaceable belt hook.Tests, tools and measurements: Pulse, toning.High impedance monitor for DataSafe™ operation.Includes: accessories: 2 x banana to alligator clip.Hearing aid compatible.Test set features high impedance monitor for datasafe™ operation and has continuous polarity indication.

This test set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment..Display type: LCD.Data lockout with data lockout override.Line and battery powered: Shares power from the telephone line and the 9 V internal battery, increasing the life of the battery.Replaceable heavy-duty braided cord and locking spring loaded belt clip.Low battery indication, volume control levels.Mute indication.Polarity indication.Tone and pulse dialing.Amplified speaker.Last number redial.Over voltage protection.Over current protection.High voltage lockout.PBX pause button, 2-way hands-free speakerphone for true hands-free conversation.Weight: 1.5 oz.Dimensions: 10"(H) x 3.8"(W) x 4.3"(D).Fluke Networks® 52801RJ9 LCD Test Set features backlit LCD and glow-in-the-dark keypad with ABN/PP and RJ11 Plug.

The TS19 Test Set combines all the essential test set features at a value price. The TS19 Test Set was specifically designed for in-house telecom technicians..Dimension: 3.4"(H) x 2.4"(W) x 8.8"(D).Material: Copper.Storage temperature: 40 deg F.Humidity range operating: 10 - 80% (non condensing).Connectors: ABN clip.Status Indicators: LED indicates polarity, the red LED lights if the red test lead is connected to the tip (positive) side and the black test lead is connected to the ring (negative) side.Device function: Open circuit testing, short circuit testing.Features such as Tone (DTMF) or pulse operation, talk/monitor capabilities, polarity test button and last number redial make this test set the perfect combination of features and price.Its high impedance monitor prevents accidental disruption of service from clipping onto a data line while in monitor mode, thus ensuring the integrity of critical data lines.Weight: 10.8 oz..Fluke Networks TS19 Test Set - Ensure Your Data Lines Are Working
