Smart Power Distribution Unit

The Tripp Lite PDUMH30HVNET 5.8 kW single-phase digital switched metered PDU supports 30 A maximum capacity at 208/240 V. It features L6-30P input plug and 16 C13 switched outlets arranged in two separately breakered eight outlet banks. Visual and remote current monitoring of this PDU, tracks the current for each eight outlet bank separately. This 2U rackmount PDU comes with cord retention bracket to plug and power vital network equipment. It provides advanced network control and monitoring with turn on/off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions as well as remotely monitor output power consumption..Power distribution unit offers reliable and cost effective power distribution.Dimensions: 3 1/2"(H) x 17 1/2"(W) x 12 1/2"(D).Metal construction for long lasting durability.Receptacles: one NEMA L6-30P input and 16 x IEC 320 EN 60320 C13 output.Voltage: 208/240 VAC input/output at 50/60 Hz, Input current: 30 A.Output capacity: 5.8 kW.Input cord length: 12'.Form factor: Horizontal (1U, 2U).Offers overload protection.Front panel LEDs: 16 power availability LEDs confirm power off/on status for each built-in outlet.Storage temperature: 5 - 122 deg F (-15 - 50 deg C), Relative humidity: 5 - 95 percent non-condensing, Operating elevation: 0 - 10000'.Offers programmable or real-time outlet power control via built-in web/network monitoring and control card.Management: Protocols- HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP and NTP.The 2U rack mount switched PDU has digital current monitoring, remote control and temperature/humidity monitoring capability.Assures ability to turn on, turn off, recycle or lock-out power to each individual outlet easily.Contains rackmount PDU and 4-post compatible mounting brackets.Meets UL 60950-1 (USA, Canada), Class A (Emissions), RoHS, TAA and NOM (Mexico) standards or certifications.Weight: 13.8 lbs..Comes with 2 years limited warranty

Tripp Lite™ Power distribution unit is made of sheet metal for durability and has a input/output voltage rating of 100 - 240 V. Power distribution unit is rack mountable and supplies equipment with continuous power from any protected UPS..Single phase NEMA L6-20P, IEC-320 C20 3.7m 20A 100, 120, 127, 200, 208, 230, 240 VAC input.50/60 Hz frequency.Outlet connector: 12 x IEC-C13, 2 x IEC-C19.Black.Cord length: 12'.Output voltage: 100 - 240 V.Material of construction: Sheet metal.Maximum input current: 20A, PDU input voltage 100, 120, 127, 200, 208, 230, 240V, Voltage compatibility: 100, 120, 127, 200, 208, 230, 240 VAC.Dimensions: 1.75"(H) x 17.25"(W) x 3.75"(D).Outlets center to center measurement: Distance between front (C13) outlets = 28.75mm, Distance between rear (C19) outlets = 55mm, Distance between rear (C13) outlets = 28.75mm, TVSS grounding: Rear grounding lug.Style: Rackmount, vertical rackmount, wallmount/under counter, Form factors supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation.Ideal for datacenters, network closets, equipment racks and a wide variety of other application types, high quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Supplies equipment with continuous power from any protected UPS, generator or mains input power source.Package contents: PDUH20DV PDU rackmount PDU, owner's manual.Certifications and standards: Tested to UL 60950 (USA), CSA (Canada), CE (EU), RoHS compliant.Weight: 3.75 lbs..Warranty: 5 years limited.Tripp Lite Power Distribution Unit - Equal Power Distribution

TRIPP LITE 5-15R 8 Outlet 15 A 100 - 127 V Switched Power Distribution Unit provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. It enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. The ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. The front input LED's display primary or secondary power availability..Single phase NEMA 5-15P 12 ft 15 A 100 - 127 V input.120 V 60 Hz output.8 NEMA 5-15R outlet connector.1U horizontal rack mount form factor.Package includes PDU with attached 5-15P input power cord, detachable C13 to NEMA 5-15P 12 ft/3.6m secondary input cord, installable 1U mounting brackets, user manuals with warranty information.Visual meter reports output power consumption in amps.ATS features provide redundant power for critical network equipment with a single input power cord.Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface.Advanced ATS configurations using separate mains circuits, backup generators and out of phase utility feeds are fully supported.2-7 millisecond transfer time between primary and secondary inputs.Front panel LEDs confirm power availability on primary/secondary inputs and each output receptacle.ATS configurations enable hot-swappable UPS protection when used with a single UPS and redundant UPS protection when each input is connected to a separate UPS system.On-board processor evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source.Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized.Typical applications: ATS PDU systems provide a redundant power option with individual outlet control for single-corded network devices.DHCP/Manual configuration support, supports HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols.Certifications: Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant.11 lbs.1 3/4"(H) x 17 1/2"(W) x 14 1/2"(D).2 years limited warranty.TRIPP LITE 5-15R 8 Outlet 15 A 100 - 127 V Switched Power Distribution Unit's ATS features provide redundant power for critical network equipment with a single input power cord.

The ATS will maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails, the ATS will switch over to the secondary power source until primary input is restored and stable..Single phase IEC-320 C20 12' 20 A 200 - 240 V input.200 - 240 V 50/60 Hz output.Outlet connector: 8 IEC-C13, 2 IEC-C19.1U horizontal rack mount.Package includes: switch, metered PDU with ATS support, set of 2 C19 to C20 12'/ 3.7 m power cables, user manual with warranty information.2 digit display reports power consumption in amps.ATS circuits normally maintain output sourced from the primary input cable, as primary input power fails, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable.2 - 7 ms transfer time.Switched outlets and ethernet interface supports individual outlet control on a real-time or programmable basis and user-specified alarm notification thresholds for all reported site power conditions.DHCP/Manual configuration support.Supports HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols.Outlets are factory programmed for sequential turn-on at 250 ms intervals when the PDU is first energized.LEDs confirm power availability on both input lines and for each output receptacle.Typical applications: Ideal for configurations requiring a simple PDU that displays power consumption in amps.Certifications: Tested to UL 60950 (USA, canada), CE (europe), class A (emissions), NOM (mexico), RoHS complaint.Weight: 10.3 lbs..Dimensions: 1.72"(H) x 17.3"(W) x 14.8"(D).2 years limited Mrf. warranty.Tripp Lite Sigle Phase Switched Power Distribution unit provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources.

The Tripp Lite PDUMH30HV metered power distribution unit in black, comes with 18-outlet and it has a voltage rating of 208/240 V..Power distribution unit offers a range of basic and metered PDUs for any application.Dimensions: 3 1/2"H x 17 1/2"W x 12 1/2"D.Comes in black color.Input receptacles: NEMA L6-30P, output receptacles: 2 x IEC 60320 C19, 16 x IEC 60320 C13.Input current: 30 A.Input voltage: 208 VAC, 240 VAC, output voltage: 208 VAC, 240 VAC.Power rating: 5.8 kVA, protection type: Overload protection.Form factor: Horizontal rackmount.Rack height: 2U.Cord length: 12'.Includes PDU, mounting brackets, plug retention plates, user manual.Meets TAA, Green, RoHS standards

TRIPP LITE Switched Horizontal Rack PDU enables remote reboot of unresponsive network hardware and prevents overloading of systems. It ensures convenient operation of IT systems that are interdependent..PDU Plug Type: L5-20P.Outlet Type: PDU Switch.Form Factor: Horizontal Rackmount.PDU Input Voltage: AC 100 - 127 V.TRIPP LITE Switched Horizontal Rack PDU - Ensures convenient operation of IT systems that are interdependent

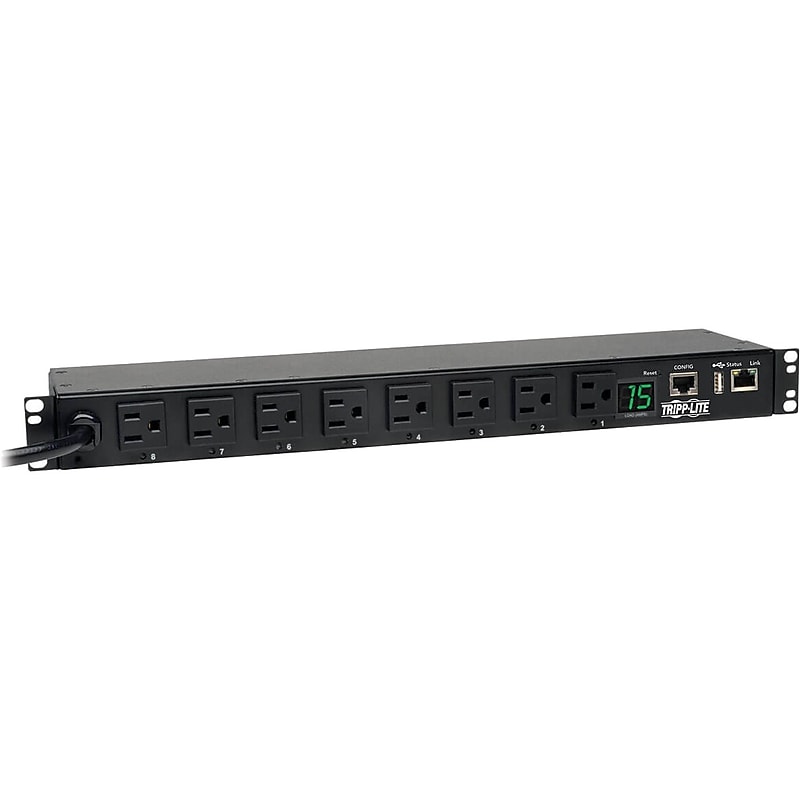

1.4kW 120V single-phase switched 1U PDU.8 individually controllable NEMA 5-15R outlets.Built-in Java-free LX Platform interface for remote access 24/7

Tripp Lite Switched PDU offers advanced network control and monitoring with the ability to turn on and off. PDU features 16 switched outlets that can be controlled in real-time to remotely reboot unresponsive network hardware..Input voltage: 120 VAC.Output voltage: 120 VAC.Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis.PDU type: Switched.Frequency: 50/60 Hz.Input receptacles: NEMA 5-15P.Output receptacles: 16 x NEMA 5-15R.Form factor: Horizontal rackmount, vertical rackmount.Dimensions: 1 3/4"(H) x 17 1/2"(W) x 15 1/2"(D).Appearance: Black 1U rackmount steel chassis.Management protocols: HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, NTP.Front panel LEDs: 16 LEDs display power on - off status for each outlet, digital current meter display shows total output power consumption in amps.Includes: Switched PDUMH15NET 16-outlets PDU, installable 1U mounting brackets, PowerAlert software CD, cord retention Bbrackets, user manual.Certifications: Tested to UL 60950-1 (USA, Canada), class A (Emissions), NOM (Mexico), RoHS compliant.Weight: 12.5 lbs..Warranty: 2 years limited.Tripp Lite Switched PDU has input/output AC voltage of 120 V and maximum input current of 15 A operating at a frequency of 60 Hz and weighs around 12.5 lbs.

Tripp Lite Single phase basic power distribution unit can be 1U/0U vertical rack mounted. Unit has adjustable mounting brackets to offer easy installation..Single phase IEC-320 C20 16 A 100 - 240 V input.Input voltage: 100 - 240 V, frequency required: 50/60 Hz output.Outlet connector: 12 IEC C13, 2 IEC-C19.Overload protection: 16 A.1U/0U vertical rack mount.Package includes: PDU12IEC rackmount power strip, warranty information, instruction manual.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Back panel grounding lug.Reversible housing; 4 1/4" depth.Typical applications: Internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.Weight: 3.2 lbs..Dimensions: 1 3/4"(H) x 17 1/2"(W) x 4 1/2"(D).limited lifetime mfr. warranty.Tripp Lite Sigle Phase Basic Power Distribution Unit offers reliable rackmount power distribution. It supplies equipment with continuous power from any protected UPS, generator or mains input power source.

The Tripp Lite PDUMH15-ISO 1.44 kW single-phase metered PDU with isobar surge suppression, provides real-time local reporting of load level in amps and noise suppression. It features a digital display that shows output current to prevent circuit overload when additional equipment is added and has a set of three front-panel LEDs to show wiring fault, protection present and line OK status. This PDU has a rugged all-metal housing and offers rackmount installation with included mounting accessories. It is compatible with 120 VAC sine wave input. The 1U PDU features NEMA 5-15P 15 A 120 V input plug with 15' cord and 14 NEMA 5-15R outlets..Power distribution unit offers reliable and cost effective power distribution.Dimensions: 1 3/4"(H) x 17 1/2"(W) x 4 1/2"(D).Sheet metal construction for long lasting durability.Receptacles: NEMA 5-15P input and 14 x NEMA 5-15R output.Voltage: 120 VAC at 50/60 Hz input/output, Input current: 15 A.Output capacity: 1.44 kW.Input cord length: 15'.Form factor: Horizontal (1U, 2U).Offers overload and surge protection.AC suppression joule rating: 3840 J, AC suppression surge current rating: 60000 A, Clamping voltage (RMS): 140 V.Front panel LEDs: Set of three diagnostic LEDs report LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green) status.Storage temperature: 5 - 122 deg F (-15 - 50 deg C), Relative humidity: 5 - 95 percent non-condensing, Operating elevation: 0 - 10000'.Built-in two digit visual meter continuously reports PDU load level in amps.Offers SOBAR Network-grade AC surge and noise suppression with EMI/RFI filtering.Contains owner's manual with warranty information.Meets UL1449 3rd Edition (USA) and CSA (Canada), RoHS standards or certifications.Weight: 4.6 lbs..Comes with 2 years limited warranty

Tripp Lite™ Power distribution unit has a input/output voltage rating of 120 V and frequency rating of 50/60 Hz. Power distribution unit is rack mountable and supplies equipment with continuous power from any protected UPS..Single phase NEMA L5-30P 4.57m 30A 120 VAC input.50/60 Hz frequency.Outlet connector: 24 x NEMA 5-15R.Cord length: 15'.Output voltage: 120 V, Overload protection: 30 A.Number of power cords: 1.Maximum input current: 30 A, PDU input voltage 100, 120, 127 V, Voltage compatibility: 120 VAC, Power rating: 24.Dimensions: 1.75"(H) x 17.5"(W) x 4.5"(D).Outlets center to center measurement: Distance between Front outlets = 30.2mm, Distance between Rear outlets = 30.2mm, TVSS grounding: Back panel nut and bolt grounding lug.Style: Rackmount, vertical rackmount, wallmount/under-counter, Form factor supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported.High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Supplies equipment with continuous power from any protected UPS, generator or mains input power source.Package contents: PDU2430 rackmount power strip, warranty information, instruction manual.Certifications and standards: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS compliant.Weight: 3.3 lbs..Warranty: 5 years limited.Tripp Lite Power Distribution Unit - 120V Input/Output Rackmount

Tripp Lite Single phase basic power distribution unit has NEMA L6-30P enclosure to offer added protection and can be 1U/0U vertical rack mounted. Unit has NEMA 5-15R outlet connector and offers 15 A overload protection..Single phase NEMA L6-30P 15' 30 A 208 - 240 V input.208 - 240 V 50/60 Hz output.Outlet connector: 16 IEC-C13, 4 IEC-C19.Overload protection: 30 A.1U/0U vertical rack mount.Package includes: PDU1230 power strip, warranty information, instruction manual.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Back panel nut and bolt grounding lug.Reversible housing; 5.2'' depth.Typical applications: Internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.Certifications: Tested to UL60950-1 (USA), CSA-C22.2 (canada).Dimensions: 1.75"(H) x 17.50"(W) x 5.20"(D).limited lifetime mfr. warranty.Tripp Lite Sigle Phase Basic Power Distribution Unit offers reliable rackmount power distribution. It supplies equipment with continuous power from any protected UPS, generator or mains input power source.

Single phase NEMA 5-20P / NEMA L5-20P 12 ft 20 A 100 - 127 V input.120 V 60 Hz output.16 NEMA 5-15/20R outlet connector.1U horizontal rack mount form factor.Package includes PDU with attached L5-20P input power cord, detachable C19 to NEMA L5-20P 12 ft/3.6m secondary input cord, two NEMA L5-20R to NEMA 5-20P plug adapters, installable 1U mounting brackets, user manual with warranty information.Visual meter reports output power consumption in amps.ATS features provide redundant power for critical network equipment with a single input power cord.Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface.Advanced ATS configurations using separate mains circuits, backup generators and out of phase utility feeds are fully supported.2-7 millisecond transfer time between primary and secondary inputs.Front panel LEDs confirm power availability on primary/secondary inputs and each output receptacle.ATS configurations enable hot-swappable UPS protection when used with a single UPS and redundant UPS protection when each input is connected to a separate UPS system.On-board processor evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source.Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized.Typical applications: ATS PDU systems provide a redundant power option with individual outlet control for single-corded network devices.DHCP/Manual configuration support, supports HTTP, HTTPS, PowerAlert network management system, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols.Certifications: Tested to UL 60950 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS complaint.12.2 lbs.1 3/4"(H) x 17 1/2"(W) x 14 1/2"(D).2 years limited warranty.2 years limited warranty.TRIPP LITE 5-15/20R 16 Outlet 20 A 100 - 127 V Switched Power Distribution Unit's ATS features provide redundant power for critical network equipment with a single input power cord.

TRIPP LITE 5-15/20R 28 Outlet 20 A 100 - 127 V Metered Power Distribution Unit offers real-time local reporting of load level in amps via built-in digital display. It enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Also offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories..Single phase NEMA 5-20P / NEMA L5-20P 15 ft 20 A 100 - 127 V input.120 V 50/60 Hz output.28 NEMA 5-15/20R outlet connector.20 A overload protection.0U vertical rack mount.2 digit lighted meter reports combined total output current in amps.Package includes PDUMV20 metered vertical PDU, (1) L5-20P to 5-20P plug adapter, mounting hardware and spare mounting buttons, instruction manual with warranty information.Includes 20 A circuit breaker and lighted power switch inside a transparent protective cover.Digital ammeter display indicator.Toolless installation supported in button-mount compatible equipment racks.Bolt-down installation brackets support installation in other racks and additional surfaces.Typical applications: Ideal means of powering networking equipment in datacenters, computer rooms and network closets.Certifications: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS compliant.6 lbs.1 3/4"(H) x 60"(W) x 1 1/4"(D).Lifetime limited warranty.TRIPP LITE 5-15/20R 28 Outlet 20 A 100 - 127 V Metered Power Distribution Unit offers real-time local reporting of load level in amps via built-in digital display.

Tripp Lite™ Power distribution unit is made of sheet metal for durability and has a input/output voltage rating of 120 V. Power distribution unit is rack mountable and supplies equipment with continuous power from any protected UPS..Single phase NEMA L5-30P 4.57m 30A 120 VAC input.50/60 Hz frequency.Outlet connector: 12 x NEMA 5-15/20R.Black.Cord length: 15'.Output voltage: 120 V, Overload protection: Two 20A breakers protect 6 outlets each.Material of construction: Sheet metal.Maximum input current: 30A, PDU input voltage 100, 120, 127V, Voltage compatibility: 120 VAC.Dimensions: 1.75"(H) x 17.5"(W) x 6.5"(D).Outlets center to center measurement: Distance between outlets = 30.20mm, Distance between Bank 1 and Bank 2 = 41.45mm, TVSS grounding: Rear grounding lug.Style: Rackmount, vertical rackmount, wallmount/under counter, Form factors supported: 1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation.Outlets are arranged in two loading banks, each with separate 20A breaker protection, highly reliable design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats.Ideal means of powering networking equipment in datacenters, computer rooms and network closets, supplies equipment with continuous power from any protected UPS, generator or mains input power source.Package contents: PDUMH30 metered rackmount PDU, owner's manual with warranty information.Certifications and standards: Tested to UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada), RoHS compliant.Weight: 7 lbs..Warranty: 2 years limited.Tripp Lite Power Distribution Unit - Ideal for Powering Servers

Tripp Lite PDU1220T Power Distribution Unit, 120 VAC Input/Output.Single phase NEMA L5-20P 4.57m 20A 120 VAC input.50/60 Hz frequency.Outlet connector: 13 x NEMA 5-15R, NEMA 5-20R.Cord length: 15'.Output voltage: 120 V, Overload protection: 20 A.Number of power cords: 1.PDU input voltage 100, 120, 127V, Voltage compatibility: 120 VAC, power rating: 20.Dimensions: 1.75"(H) x 17.5"(W) x 4.5"(D).Outlets center to center measurement: 30.2mm.Style: Rackmount, vertical rackmount, wallmount/under counter, Management: Browser, CLI, SNMP, serial or IP.1U horizontal rackmount format installs in one rack space, back panel grounding lug, high quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.Mounting flanges support installation in 2 and 4 post racks, with additional support for wall mount and under counter installation formats.Supplies equipment with continuous power from any protected UPS, generator or mains input power source.Compatibility: Distribution of UPS, generator or commercially derived AC power to protected equipment.Package contents: PDU1220T rackmount power strip, instruction manual and warranty information.Certifications and standards: Tested to UL60950-1 (USA), CSA-C22.2 (Canada), cUL, ROHS.Weight: 5.2 lbs..Warranty: 5 years limited.Tripp Lite Power Distribution Unit - Consolidate Your Power Source
